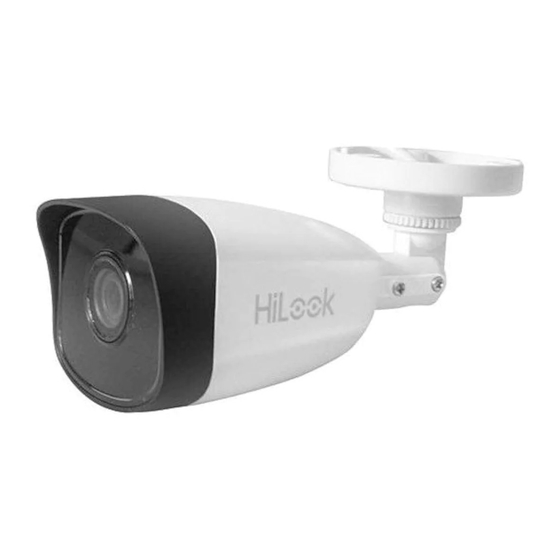

Summary of Contents for HiLook IPC-B120H
- Page 1 Network Bullet Camera Quick Start Guide...
- Page 2 Network Bullet Camera·Quick Start Guide Quick Start Guide ©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All Rights Reserved Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of...
- Page 3 Network Bullet Camera·Quick Start Guide TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY.
- Page 4 Network Bullet Camera·Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Network Bullet Camera·Quick Start Guide 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. EU Conformity Statement This product and - if applicable - the supplied accessories too are marked with "CE"...
- Page 6 Network Bullet Camera·Quick Start Guide This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into "Warnings" and "Cautions" Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 7 Network Bullet Camera·Quick Start Guide ● The power source should meet limited power source or PS2 requirements according to IEC 60950-1 or IEC 62368-1 standard. ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ●...
- Page 8 Network Bullet Camera·Quick Start Guide ● Do not touch sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.
- Page 9 Network Bullet Camera·Quick Start Guide ● CAUTION: Risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions ATTENTION: IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT. METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS ●...
-
Page 10: Table Of Contents
Network Bullet Camera·Quick Start Guide Table of Contents 1 Appearance Description ............10 2 Installation ................15 Memory Card Installation ..........15 Ceiling Mounting ............... 16 Mounting with Junction Box ..........19 Install Network Cable Waterproof Jacket ......22 3 Activate and Access Network Camera ........24... -
Page 11: Appearance Description
Network Bullet Camera·Quick Start Guide 1 Appearance Description Type I: Type I Bullet Camera Overview Description Description Lens Front Cover Back Cover Fix Ring Power Cord Network Cable... - Page 12 Network Bullet Camera·Quick Start Guide Type II: Type II Bullet Camera Overview Description Description Lens Front Cover Back Cover Mounting Base Power Cord Network Cable...
- Page 13 Network Bullet Camera·Quick Start Guide Type III: Type III Bullet Camera Overview Description Description Lens Front Cover Memory Card Slot Cover Back Cover Mounting Base Power Cord Network Cable...
- Page 14 Network Bullet Camera·Quick Start Guide Type IV: Bullet Camera Overview Description Description Lens Main Body Bracket Power Cord Network Cable...
- Page 15 Network Bullet Camera·Quick Start Guide Type V: Bullet Camera Overview Description Description Lens Main Body Bracket Power Cord Network Cable Note: For cameras support power over Ethernet (PoE), the power is passed along with data on Ethernet cabling. And a switch supports PoE function is required.
-
Page 16: Installation
Network Bullet Camera·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is PoE or 12 VDC, please make sure your power supply matches with your camera. -
Page 17: Ceiling Mounting
Network Bullet Camera·Quick Start Guide Unscrew the Cover and Insert Memory Card 2. Insert the memory card into the memory card slot. 3. (Optional) To unmount the memory card, push to get it ejected. 4. Screw the cover back to the camera. Ceiling Mounting Before you start: Both wall mounting and ceiling mounting are suitable for the bullet... - Page 18 Network Bullet Camera·Quick Start Guide Note: Drill the cable hole, if adopting ceiling outlet to route the cable. Figure 2-2 The Drill Template 3. Route the cables through the cable hole (optional), or the side opening. 4. Fix the camera on the ceiling/wall with supplied screws. Figure 2-3 Fix the Camera on the Ceiling/Wall...
- Page 19 Network Bullet Camera·Quick Start Guide Note: In the supplied screw package, both self-tapping screws, and expansion bolts are contained. If the ceiling is cement, expansion bolts are required to fix the camera. If the ceiling is wooden, self-tapping screws are required. 5.
-
Page 20: Mounting With Junction Box
Network Bullet Camera·Quick Start Guide P: 0° to 360° R: 0° to 360° T: -90° to 90° Figure 2-4 3-aix Adjustment 7. (Optional) Install the waterproof jacket. Refer to 2.4 Install Network Cable Waterproof Jacket for details. Mounting with Junction Box Before you start: Both wall mounting and ceiling mounting are suitable for the ... - Page 21 Network Bullet Camera·Quick Start Guide Note: Drill the cable hole, if adopting ceiling outlet to route the cable. Ø84 (3.3") Screw Hole Ø55 (2.2") 3-Ø4 (0.2") Ø40 (1.6") Ø70 (2.8") Unit: mm (inch) Figure 2-5 The Drill Template 3. Take apart the junction box, and align the screw holes of the bullet camera with those on the cover of junction box 4.
- Page 22 Network Bullet Camera·Quick Start Guide Waterproof Cover Cable Gland Figure 2-7 Fix the Junction Box on the Wall 6. Route the cables through the cable hole. Here we take bottom cable hole as the example to describe the installation. 1). Separate the waterproof cover and the cable gland from the junction box.
-
Page 23: Install Network Cable Waterproof Jacket
Network Bullet Camera·Quick Start Guide Figure 2-8 Combine the Cover of Junction Box with its Body 8. Repeat steps 4 to 6 of 2.2 Ceiling Mounting to complete the installation. Install Network Cable Waterproof Jacket If the camera is installed outdoor, you should use the waterproof accessory to waterproof the network cable. - Page 24 Network Bullet Camera·Quick Start Guide 2. Fix ② on the network cable between ① and ③. 3. Place ⑤ onto the end of ⑥, and plug the RJ45 male connector into RJ45 female connector. 4. Screw ③ to ⑥ clockwise. 5.
-
Page 25: Activate And Access Network Camera
Network Bullet Camera·Quick Start Guide 3 Activate and Access Network Camera Scan the QR code to get Activate and Visit Network Camera. Note that mobile data charges may apply if Wi-Fi is unavailable. - Page 26 UD19099B...
