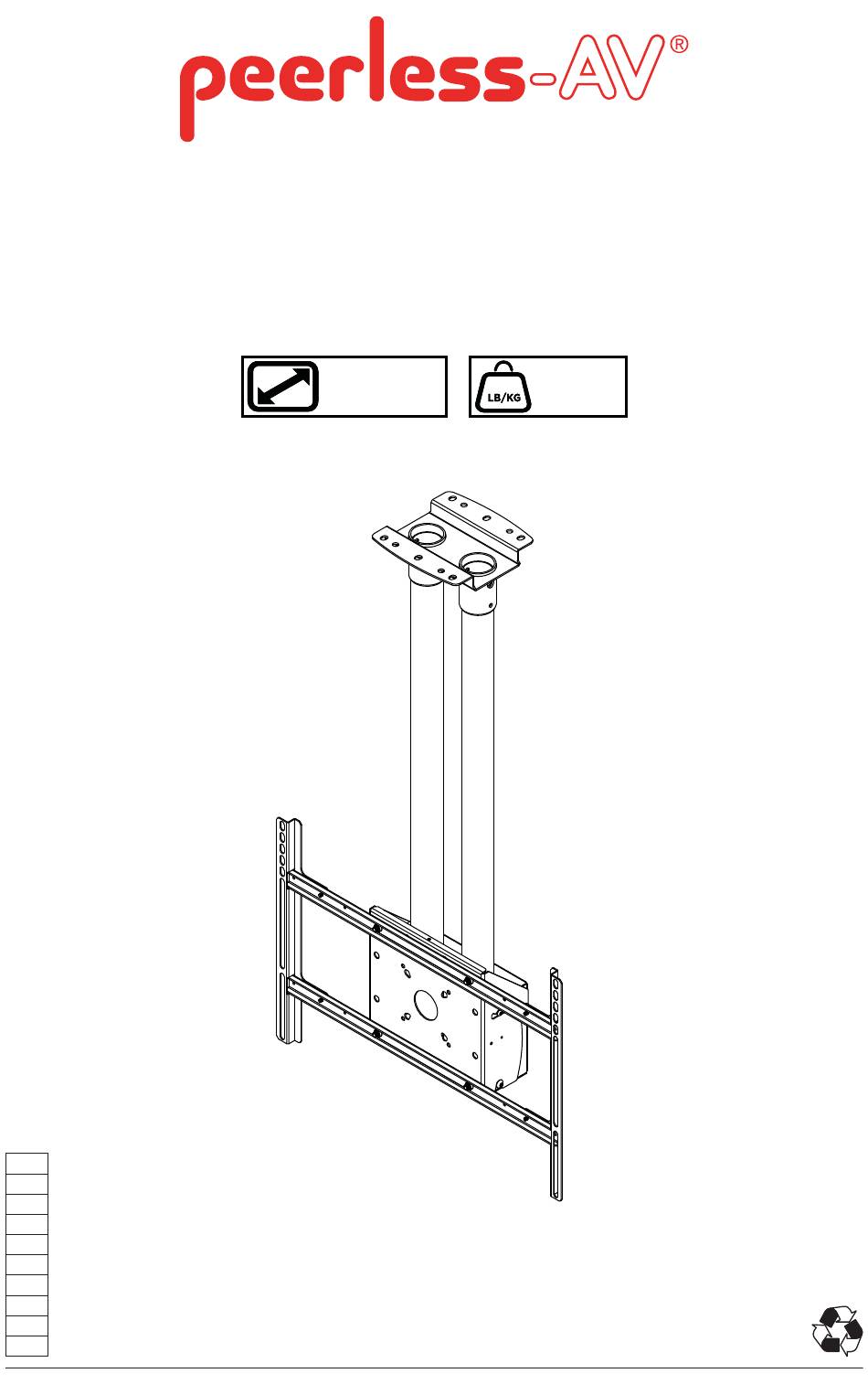

- Page 1 MOD-FPS2KIT150 MOD-FPS2KIT150-B 46" - 90" 211 lb (117 - 229 cm) (96 kg) ČEŠ TÜR 2014-01-27 #:203-9369-4 2017-07-07...
- Page 2 WARNING ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 AVVERTENZA ITL - Questo prodotto è indicato per l’installazione su soffi tti in calcestruzzo solido o a travi/traverse di legno. Sono compresi i dispositivi di fi ssaggio per l’installazione su calcestruzzo solido e a travi/traverse di legno. Prima di iniziare l’installazione, accertarsi che la superfi cie di supporto sia in grado di sorreggere il carico combinato unità/dispositivi di fi...
- Page 4 Symbols Símbolos Symboles Symbole Symbolen WARNING Simboli ADVERTENCIA Symboly ČEŠ Skip to step. ADVERTISSEMENT Symboly Continúe con el ACHTUNG Screws must get at least three Símbolos paso. WAARSCHUWING full turns and fi t snug. Semboller TÜR Passez à l’étape. AVVERTENZA Los tornillos tienen que dar, Weiter mit Schritt.
- Page 5 Tools Needed for Assembly. Herramientas necesarias para el ensamblaje. Outils nécessaires au montage. To properly tighten screws: Tighten until screw Für den Zusammenbau erforderliche Werkzeuge. head makes contact, then tighten another 1/2 Voor montage benodigd gereedschap. turn. Do not overtighten screws. Attrezzi necessari per l’assemblaggio.
- Page 6 Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie). Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo). Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun). TÜR Parts List MOD-FPS2KIT150 MOD-FPS2KIT150-B Description Part # Part #...
-
Page 7: Table Of Contents
F ( 1 ) G ( 1 ) H ( 2 ) tilt box tilt plate horizontal rail I ( 1 ) J ( 1 ) K ( 8 ) M ( 2 ) left vertical rail right vertical rail M5 x 10mm M8 x 55mm L ( 8 ) - Page 8 Wood joist/beam Concrete Ceiling Vigueta de madera Techo de concreto Solive de bois Plafond en béton Holzbalken Betondecke Houten dwarsbalk Plafond van beton Travetto di legno Soffi tto in calcestruzzo Dřevěný nosník Betonový strop ČEŠ ČEŠ Drevený nosník Betónový strop Trave de madeira Teto em betão Ahşap kiriş...
- Page 9 AVISO POR - Ao instalar suportes para teto Peerless numa trave ou viga de madeira cobertas com painéis de gesso, verifi que se as traves ou vigas têm um tamanho nominal mínimo de 50,8 mm x 101,6 mm. Não instale em pai- néis de gesso com mais de 170 mm.
- Page 10 1a-3 7/32" 3" (5.5mm) (76mm) Mounting hole must center on stud. El orifi cio debe quedar centrado en el montante. Le trou doit être centré sur le Drill mounting holes into supporting surface 7/32" montant. (3" (76mm) minimum depth required). (5.5mm) Das Loch muss am Ständer Taladre los agujeros de montaje en la superfi...
- Page 11 WARNING ENG - When installing Peerless ceiling mounts on a concrete ceiling, the ceiling must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other fi nishing material. ADVERTENCIA ESP - Cuando vaya a instalar soportes de techo de Peerless en techos de concreto, los techos tienen que tener, por lo menos, 8"...
- Page 12 1b-1 Mark mounting holes. Marque los orifi cios de montaje. Marquez les trous de fi xation. Markieren Sie die Montagelöcher. Markeer montagegaten. Contrassegna I fori di montaggio. Vyznačte montážní otvory. ČEŠ Vyznačte montážne otvory. Marque os furos de montagem. Montaj deliklerini işaretleyin. TÜR 1b-2 3/8"...
- Page 13 1b-3 Insert anchor fl ush to concrete. Inserte el anclaje a ras con el concreto. Insérez la cheville d’ancrage au ras du béton. Setzen Sie den Dübel bündig mit dem Beton abschließend ein. Breng anker aan gelijk met beton. Inserire il fermo a paro col calcestruzzo.
- Page 14 Optional: Cut pole to desired length. Cut end must be perpendicular to pole within 1/16" (1.5mm). Must use drill template MOD-ADF (sold separately) to drill new holes in pole. Refer to accompanying instructions. Opcional: Corte el poste a la longitud deseada. El extremo cortado tiene que quedar perpendicular al poste a 1/16”...
- Page 15 Measure distance from center of screen to ceiling (X), subtract 2" (51mm) then mark pole and cut away excess material. Mida la distancia desde el suelo hasta el techo (X), reste 2" (51mm), marque el poste y corte el exceso. Mesurez la distance entre le plancher et le plafond (X), soustrayez 2 po (51mm), puis marquez le montant et coupez l’excédent de longueur.
- Page 16 M (2) N (2) B (2) B (2) L (4) K (4) C (2) 2014-01-27 #:203-9369-4 2017-07-07...
-
Page 17: F ( 1 )
5b-1 Screws must get at least three full turns and fi t snug. Los tornillos tienen que dar, por lo menos, tres vueltas completas y quedar ajustados. Il faut effectuer au moins trois tours de vis complets et bien serrer les vis. Schrauben sind mindestens drei volle Umdrehungen einzudrehen und müssen fest anliegen. -
Page 18: Ff ( 8 )
5b-1 Center adapter brackets vertically on back of screen. Centre verticalmente los soportes en la pantalla. Centrez les supports à la verticale de l’écran. Richten Sie die Halterungen senkrecht mittig an der Bildschirm. Centreer de beugels verticaal op de van het scherm. centra le staffe verticalmente sul dello schermo. -
Page 19: G ( 1 )
5b-3 H (2) 5b-4 L (4) L (4) 5b-5 K (4) 2014-01-27 #:203-9369-4 2017-07-07... -
Page 20: N ( 2 )
+20°/-5° Tighten. Apretar. Serrer. Anziehen. Aandraaien. Stringere. Utáhněte. ČEŠ Utiahnite. Apertar. Sıkmak. TÜR 2014-01-27 #:203-9369-4 2017-07-07... - Page 21 LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
