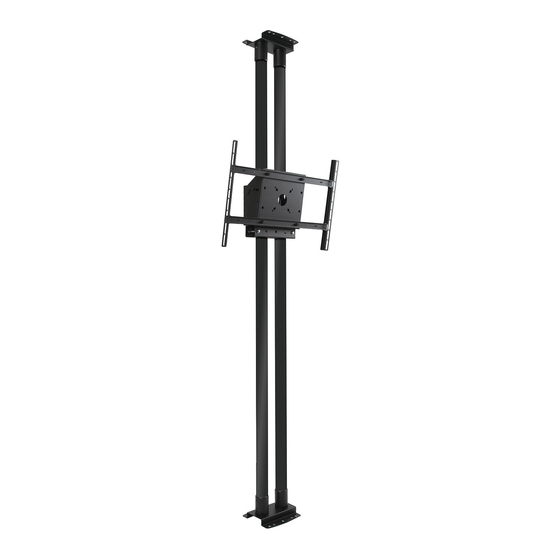

- Page 1 MOD-FCS2KIT300 MOD-FCS2KIT300-B 46" - 90" 211 lb (117 - 229 cm) (96 kg) ČEŠ TÜR 2014-01-31 #:203-9370-4 2017-07-07...
- Page 2 WARNING ENG - This product is designed to be installed on wood joist/beam or solid concrete ceilings. Hardware is included for wood joist/beam and solid concrete installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 AVVERTENZA ITL - Questo prodotto è indicato per l’installazione su soffi tti in calcestruzzo solido o a travi/traverse di legno. Sono compresi i dispositivi di fi ssaggio per l’installazione su calcestruzzo solido e a travi/traverse di legno. Prima di iniziare l’installazione, accertarsi che la superfi cie di supporto sia in grado di sorreggere il carico combinato unità/dispositivi di fi...
- Page 4 Symbols Símbolos Symboles Symbole Symbolen WARNING Simboli ADVERTENCIA Symboly ČEŠ Skip to step. ADVERTISSEMENT Symboly Continúe con el ACHTUNG Screws must get at least three Símbolos paso. WAARSCHUWING full turns and fi t snug. Semboller TÜR Passez à l’étape. AVVERTENZA Los tornillos tienen que dar, Weiter mit Schritt.
- Page 5 Tools Needed for Assembly. Herramientas necesarias para el ensamblaje. Outils nécessaires au montage. To properly tighten screws: Tighten until screw Für den Zusammenbau erforderliche Werkzeuge. head makes contact, then tighten another 1/2 Voor montage benodigd gereedschap. turn. Do not overtighten screws. Attrezzi necessari per l’assemblaggio.
- Page 6 Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie). Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo). Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun). TÜR Parts List MOD-FCS2KIT300 MOD-FCS2KIT300-B Description Part # Part #...
-
Page 7: Table Of Contents
F ( 1 ) G ( 1 ) H ( 2 ) tilt box tilt plate horizontal rail I ( 1 ) J ( 1 ) L ( 8 ) M ( 4 ) M8 x 15mm M8 x 55mm left vertical rail right vertical rail Q ( 2 ) - Page 8 Optional: Cut pole to desired length. Cut end must be perpendicular to pole within 1/16" (1.5mm). Must use drill template MOD-ADF (sold separately) to drill new holes in pole. Refer to accompanying instructions. Opcional: Corte el poste a la longitud deseada. El extremo cortado tiene que quedar perpendicular al poste a 1/16”...
- Page 9 Measure distance from fl oor to ceiling (X), subtract 4-1/8" (105mm) then mark pole and cut away excess material. Mida la distancia desde el suelo hasta el techo (X), reste 4-1/8" (105mm), marque el poste y corte el exceso. Mesurez la distance entre le plancher et le plafond (X), soustrayez 4-1/8 po (105mm), puis marquez le montant et coupez l’excédent de longueur.
- Page 10 Wood joist/beam Concrete Ceiling Vigueta de madera Techo de concreto Solive de bois Plafond en béton Holzbalken Betondecke Houten dwarsbalk Plafond van beton Travetto di legno Soffi tto in calcestruzzo Dřevěný nosník Betonový strop ČEŠ ČEŠ Drevený nosník Betónový strop Trave de madeira Teto em betão Ahşap kiriş...
- Page 11 AVISO POR - Ao instalar suportes para teto Peerless numa trave ou viga de madeira cobertas com painéis de gesso, verifi que se as traves ou vigas têm um tamanho nominal mínimo de 50,8 mm x 101,6 mm. Não instale em pai- néis de gesso com mais de 170 mm.
- Page 12 2a-3 7/32" 3" (5.5mm) (76mm) Mounting hole must center on stud. El orifi cio debe quedar centrado en el montante. Le trou doit être centré sur le Drill mounting holes into supporting surface 7/32" montant. (3" (76mm) minimum depth required). (5.5mm) Das Loch muss am Ständer Taladre los agujeros de montaje en la superfi...
- Page 13 WARNING ENG - When installing Peerless ceiling mounts on a concrete ceiling, the ceiling must be at least 8" thick with a minimum compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster, drywall, or other fi nishing material. ADVERTENCIA ESP - Cuando vaya a instalar soportes de techo de Peerless en techos de concreto, los techos tienen que tener, por lo menos, 8"...
- Page 14 2b-1 Mark mounting holes. Marque los orifi cios de montaje. Marquez les trous de fi xation. Markieren Sie die Montagelöcher. Markeer montagegaten. Contrassegna I fori di montaggio. Vyznačte montážní otvory. ČEŠ Vyznačte montážne otvory. Marque os furos de montagem. Montaj deliklerini işaretleyin. TÜR 2b-2 3/8"...
- Page 15 2b-3 Insert anchor fl ush to concrete. Inserte el anclaje a ras con el concreto. Insérez la cheville d’ancrage au ras du béton. Setzen Sie den Dübel bündig mit dem Beton abschließend ein. Breng anker aan gelijk met beton. Inserire il fermo a paro col calcestruzzo.
- Page 16 (10mm) S (2) Q (2) B (2) 2014-01-31 #:203-9370-4 2017-07-07...
- Page 17 N (2) M (2) Level, mark mounting holes then refer to step 2a or 2b to secure mounting plate to fl oor. Nivele, marque los agujeros de montaje y consulte el paso 2a o 2b para fi jar la placa de montaje en el suelo. Mettez-la à...
- Page 18 N (2) 11/64" 11/64" (4.5mm) (4.5mm) Drill hole Perforar hoyos Percez un trou Bohrloch R (2) Boren gat Perforare il pozzo ČEŠ Vyvrtaný otvo Vyvŕtaný otvo Perfurar buraco Matkap delik TÜR 2014-01-31 #:203-9370-4 2017-07-07...
-
Page 19: F ( 1 )
6b-1 Screws must get at least three full turns and fi t snug. Los tornillos tienen que dar, por lo menos, tres vueltas completas y quedar ajustados. Il faut effectuer au moins trois tours de vis complets et bien serrer les vis. Schrauben sind mindestens drei volle Umdrehungen einzudrehen und müssen fest anliegen. -
Page 20: Ff ( 8 )
6b-1 Center adapter brackets vertically on back of screen. Centre verticalmente los soportes en la pantalla. Centrez les supports à la verticale de l’écran. Richten Sie die Halterungen senkrecht mittig an der Bildschirm. Centreer de beugels verticaal op de van het scherm. centra le staffe verticalmente sul dello schermo. -
Page 21: G ( 1 )
6b-3 H (2) 6b-4 L (4) L (4) 6b-5 K (4) 2014-01-31 #:203-9370-4 2017-07-07... - Page 22 +20°/-5° Tighten. Apretar. Serrer. Anziehen. Aandraaien. Stringere. Utáhněte. ČEŠ Utiahnite. Apertar. Sıkmak. TÜR 2014-01-31 #:203-9370-4 2017-07-07...
- Page 23 This page intentionally left blank. Página en blanco. Cette page a été laissée en blanc intentionnellement. Diese Seite wurde absichtlich freigelassen. Deze pagina is met opzet blanco gelaten. Pagina lasciata intenzionalmente vuota. Tato strana je záměrně prázdná. ČEŠ Táto strana je zámerne prázdna. Esta página foi intencionalmente deixada em branco.
- Page 24 LIMITED FIVE-YEAR WARRANTY Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless products will be free from defects in material and ® workmanship, under normal use, for a period of fi ve years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product's manufacture).
-
Page 25: R ( 2 )
BESCHRÄNKTEN FÜNFJÄHRIGEN GARANTIE Peerless Industries, Inc. („Peerless”) übernimmt gegenüber den ursprünglichen Endnutzern von Peerless®-Produkten die Gewährleistung, dass diese unter normalen Einsatzbedingungen für fünf Jahre ab Datum des Kaufs durch den ursprünglichen Endnutzer (aber in keinem Fall länger als sechs Jahre nach Herstellungsdatum des Produkts) frei von Material- und Verarbeitungsfehlern sind. Peerless repariert oder ersetzt nach eigenem Ermessen ein Produkt, das dieser Garantie nicht entspricht, oder erstattet den Kaufpreis dafür. - Page 26 OMEZENÁ PĚTILETÁ ZÁRUKA Peerless Industries, Inc. (“Peerless”) zaručuje původním koncovým uživatelům výrobků Peerless®, že budou bez vad na materiálu a provedení, za podmínky běžného používání, po dobu pěti let od data nákupu původním koncovým uživatelem (ale v žádném případě ne déle než...
- Page 27 BEŞ YILLIK SINIRLI GARANTİ Peerless Industries, Inc. (bundan sonra “Peerless” olarak anılacaktır) Peerless® ürünlerinde normal kullanım koşulları altında orijinal son kullanıcının satın alma tarihinden itibaren beş yıl süreyle (ama her halükarda ürünün üretim tarihinden itibaren en fazla altı yıl süreyle) malzeme ve işçilik arızaları...
- Page 28 Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom Escobedo N.L Mexico 66050 Ph: (800) 865-2112...
