QVSPEU VACUUM Operator's Manual
Accessories
ADJUSTABLE
VACUUM
HANDLE
HOSE KIT
Allows for the
5" (127mm) x
handle to be
10' (3m)
raised or
collapsible hose
lowered for
for vacuuming
comfort.
in hard-to-reach
areas
P/N 831614
P/N 831018
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
27831517
QVSP Operator's Manual

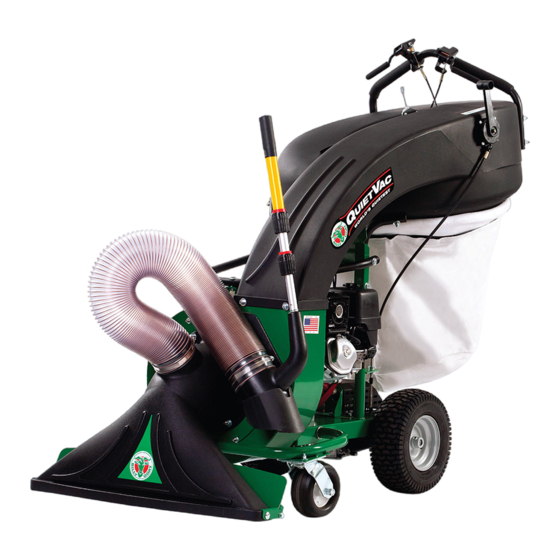

Image shown with optional accessories
Beginning Serial #: 051522001
Original Instructions
QV550VSP
Debris bags and Filter
DEBRIS BAG
STANDARD
DEBRIS
SKIRT
BAG
Directs dust
Standard on
away from the
QV models.
operator.
For dusty
conditions.
P/N 831268
P/N 831613
1
(INCLUDED)
HOOD
DEBRIS AND
FILTER
Filters out
Traps dust
dust from
keeping it
vacuum
away from the
exhaust.
operator.
P/N 831226
P/N 831282
DUST SOCK
Advertisement
Table of Contents
Related Manuals for Billy Goat QV550VSP
Summary of Contents for Billy Goat QV550VSP
- Page 1 QVSP Operator’s Manual Image shown with optional accessories QVSPEU VACUUM Operator's Manual QV550VSP Beginning Serial #: 051522001 Accessories Debris bags and Filter (INCLUDED) ADJUSTABLE VACUUM DEBRIS BAG STANDARD HOOD DEBRIS AND DEBRIS HANDLE HOSE KIT SKIRT FILTER DUST SOCK Allows for the 5"...
-
Page 2: Illustrated Parts & Parts Lists
QVSP Operator’s Manual CONTENTS SPECIFICATIONS INSTRUCTION LABELS PACKING CHECKLIST AND ASSEMBLY OPERATION AND BAG CARE MAINTENANCE AND TROUBLESHOOTING ILLUSTRATED PARTS & PARTS LISTS 10-13 Part No 27831517... -
Page 3: Specifications
QVSP Operator’s Manual SPECIFICATIONS QV550VSP 5.0 (3.73 kW) Engine: Type 10V3320003F1 Engine: Fuel Capacity 3.3 qt. (3.1 L) Engine: Oil Capacity 0.63 qt. (0.60 L) Total Unit Weight: 234 lbs (106 kg) Overall Length 63” (1.6m) Overall Width 33” (0.84m) Overall Height 51”... -
Page 4: Instruction Labels
INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT QVSPEU Vacuum. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. -
Page 5: Packing Checklist
QVSP Operator’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled except for the nozzle and handle. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. -
Page 6: Operation
QVSP Operator’s Manual OPERATION VACUUM OPERATION WARNING: The maximum RPM’s on the unit’s engine are set. Altering them from the factory settings could potentially damage the unit and void warranty. VACUUM NOZZLE HEIGHT ADJUSTMENT: Adjust by turning the knob clockwise to increase height and counter-clockwise to lower it. - Page 7 QVSP Operator’s Manual DUST SOCK CARE AND MAINTENANCE Purpose: The dust sock acts as a secondary filter lowering the amount of dust that escapes the bag. Dust socks are to be used in dry and dusty conditions ONLY. Using the dust sock in damp or wet conditions may damage the dust sock and decrease the effectiveness of the filter.
-
Page 8: Maintenance
QVSP Operator’s Manual MAINTENANCE NOTE: Items in ( ) can be referenced in the Parts Illustrations and Parts Lists on pages 10-13. PERIODIC MAINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Every 5 hrs Every 10 Hrs Every 25 Hrs Every 50 Hrs... -
Page 9: Troubleshooting
QVSP Operator’s Manual Continued next page 4. Install the impeller and make sure the belt is in the groove on the hub. Use new hardware to attach the impeller. DO NOT reuse old impeller bolts. 5. Align the pulley so the belt will be running straight, then tighten the set screws. NOTE: make sure the key is in the lower pulley is still in place and hasn’t fallen out. - Page 10 QVSP Operator’s Manual QVSP ENGINE PARTS DRAWING TO THROTTLE CONTROL 93 49 CONTROL LEVERS Part No 27831517...
- Page 11 QVSP Operator’s Manual QVSP ENGINE PARTS LIST QV550VSP QV550VSP ITEM DESCRIPTION PART NO. QTY ITEM DESCRIPTION SCREWCAP 5/16"-18 X 1 3/4" HCS ZP 8041031 ENGINE, 160CC, VANGUARD 382531 CARRIAGE BOLT 1/4"-20 X 3/4" ZP 8024021 HOUSING WA W/LABELS 831600 WASHER 1/4" SAE...
- Page 12 QVSP Operator’s Manual QVSP HOOD PARTS DRAWING 67 33 76 77 TRANSMISSION ENGINE TRANSMISSION 45 49 Part No 27831517...
- Page 13 QVSP Operator’s Manual QVSP HOOD PARTS LIST QV550VSP ITEM DESCRIPTION QV550VSP QTY ITEM DESCRIPTION SCREW PLASTITE 1/4"-20 X 3/4" HWH ZP 840082 HOUSING QV WA W/LABELS 831600 CONTROL THROTTLE 440013 QV BAG AND RING KIT - w/4 LATCH 831617 PLATE THROTTLE...
