DW MEGAPIX DWC-MC421D Manual

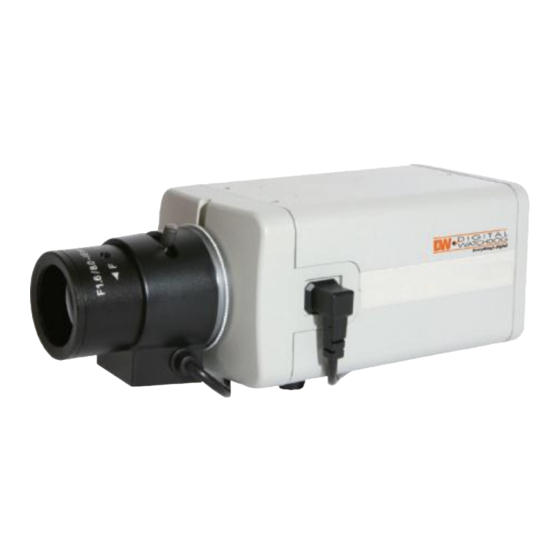

Ip 2.1mp color box camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IP 2.1MP Color Box Camera
DWC-MC421D
Before installing and using the MEGAPIX Camera, please read this manual carefully.
Be sure to keep it handy for future reference.
02222013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEGAPIX DWC-MC421D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DW MEGAPIX DWC-MC421D

Summary of Contents for DW MEGAPIX DWC-MC421D

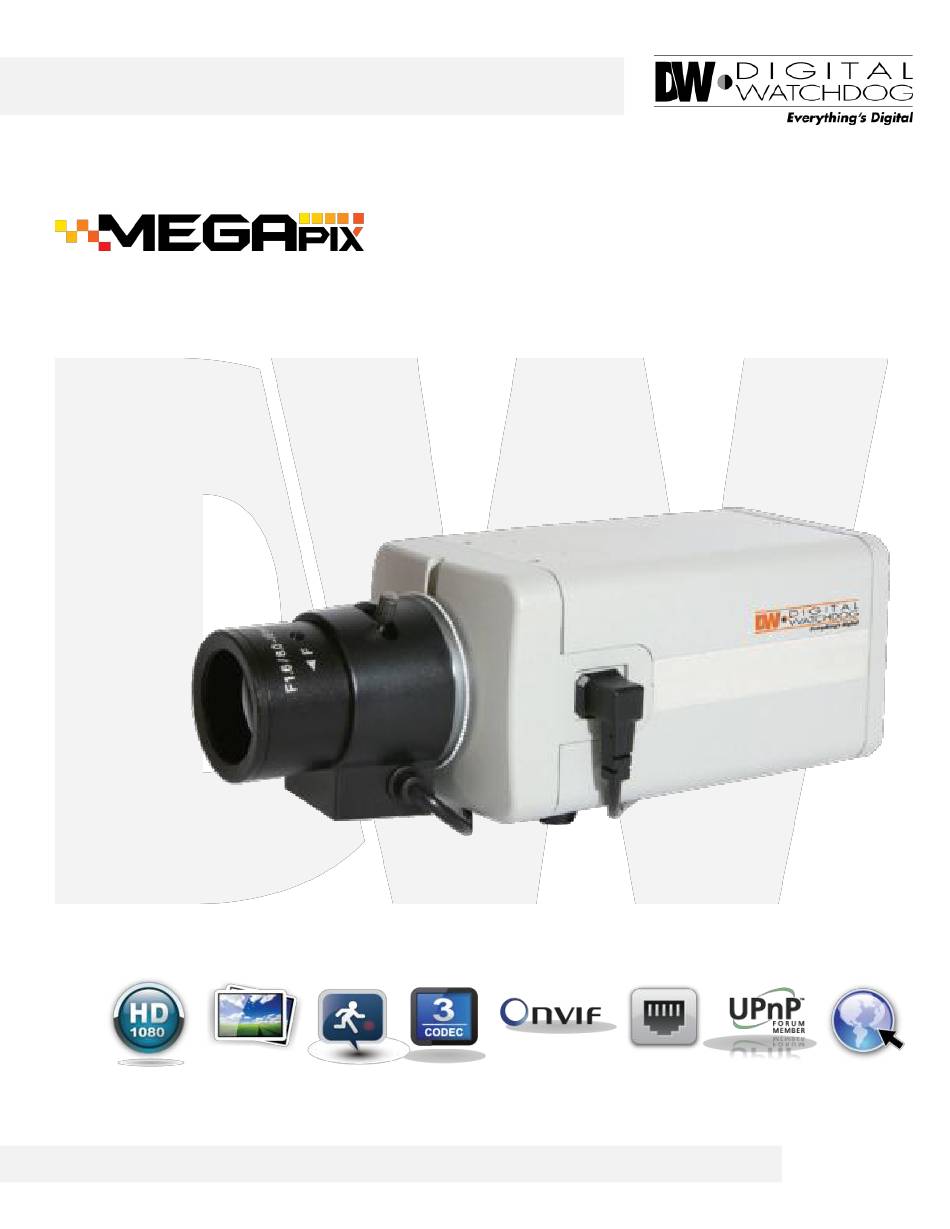

  • Page 1 IP 2.1MP Color Box Camera DWC-MC421D Before installing and using the MEGAPIX Camera, please read this manual carefully. Be sure to keep it handy for future reference. 02222013...
  • Page 2 PRECAUTIONS  Do not open or modify.  Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.  Do not put objects into the unit.  Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS* Introduction...............................4 Features................................4 Inside the Box...............................5 Parts & camera Control Board ........................6 Dimensions..............................7 Installation.................................8 Network Connection..........................8-9 Mounting the Camera...........................10-14 Storage Device Installation........................15 MEGAPIX Camera Setup..........................16 Installing the IP Finder..........................16 Using IP Finder Software........................17-18 Network Options............................19 Camera Reboot............................20 MEGAPIX Camera Web Viewer........................21 Accessing the Web Viewer via Internet Explorer..................21 Accessing the Web Viewer via Google Chrome, Mozilla Firefox and Safari..........22 First &...

  • Page 4: Introduction

    FEATURES*  ONVIF Compliant  2.1 Megapixels (1080P, 30fps)  Triple Codecs (H.264, MJPEG, MPEG4) with Dual-Stream 1/2.8” CMOS Sensor (7% Larger Than 1/3” CMOS Sensor)   Electronic Day and Night  Power over Ethernet [PoE] & DC12V  Two-Way Audio ...

  • Page 5: Inside The Box

    INSIDE THE BOX* The following items are included with the MEGAPIXEL Camera: 1. Quick Start Guide 2. Mini-DIN Connector (For or DC Auto Iris Lens) 3. L-WRENCH 4. Adaptor Ring(9.0mm) 5. 2 Port Terminal Block (For Power Connection) 6. Color Box Camera (Lens not included)

  • Page 6: Parts & Camera Control Board

    PARTS & DESCRIPTIONS* 1. Lens Connector Video Out 2. CS Ring RS-485 3. Iris Jack AC 24V/ DC 12V 4. Mounting Bracket Connectors 10. RJ-45 PoE Connector Micro SD Card Slot 11. Audio In/ Out Alarm (Motion)

  • Page 7: Dimensions

    DIMENSIONS*...

  • Page 8: Installation

    NETWORK CONNECTION* Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. Using a PoE-Enabled Switch The MEGAPIX Camera is PoE-Compliant, allowing transmission of power and data via a single Ethernet cable. PoE eliminates the need for the different cables used to power, record, or control the camera.
  • Page 9 NETWORK CONNECTION* Using a Non-PoE Switch If a PoE-enabled switch is not used, use a power adaptor for power transmission and non-PoE switch for data transmission. Follow the illustrations below to connect the camera without a PoE-Enabled Switch.

  • Page 10: Mounting The Camera

    INSTALLATION* Using an appropriate mounting bracket, mark and drill the necessary holes to mount the bracket to a wall or ceiling. Attach the mounting bracket to the surface using machine screws. Attach the box camera to the mounting bracket. Adjust the camera’s position. Consult the manual of the mounting bracket for additional information.
  • Page 11 INSTALLATION* 5 . I n s t a l l i n g a C / C S M o u n t L e n s Before mounting a lens, please check whether it is a C-mount or CS-mount lens. The back focus is set for the CS-mount lens at the factory.
  • Page 12 INSTALLATION* M o u n t i n g a C - M o u n t L e n s 1. Attach the C-Mount lens adapter by turning clockwise. 2. Attach the lens to the camera by turning clockwise.
  • Page 13 INSTALLATION* 6 . I n s t a l l i n g a n A u t o m a t i c I r i s L e n s If you are using an automatic iris lens with the camera, the lens has to be connected to the A- Iris socket of the camera.
  • Page 14 INSTALLATION* Adjust the lens’ zoom and focus accordingly. Consult the manual for the lens for more information. Connect the RJ45 to a CAT5 cable or a power adaptor. Refer to “Network Connection” for further explanation. If necessary, connect the Audio In and Out, and Relay Control cables. Check the LED light.

  • Page 15: Storage Device Installation

    INSTALLATION* S t o r a g e D e v i c e T h e M V 4 2 1 M e g a p i x e l C a m e r a s o f f e r t h e o p t i o n o f l o c a l e m e r g e n c y b a c k u p i n c a s e o f n e t w o r k l o s s .

  • Page 16: Megapix Camera Setup

    IP FINDER SOFTWARE* I n s t a l l i n g I P F i n d e r S o f t w a r e IP Finder searches for all the available Digital Watchdog devices currently connected to your network. Install IP Finder to find the MEGAPIX camera on your local network.

  • Page 17: Using Ip Finder Software

    IP FINDER SOFTWARE* U s i n g I P F i n d e r S o f t w a r e Use IP Finder to change the basic settings of your MEGAPIX camera or to connect to your MEGAPIX camera. Configuration: Change the device’s connection type and/or IP address information.
  • Page 18 IP FINDER SOFTWARE* U s i n g I P F i n d e r S o f t w a r e Use IP Finder to set the connection type and the IP address information for your MEGAPIX camera. DHCP: Select DHCP to access the camera within the same internal network.

  • Page 19: Network Options

    IP FINDER SOFTWARE* D H C P The Dynamic Host Configuration Protocol (DHCP) is a network configuration protocol that allows a device to configure automatically according to the network it is connected to. If your network supports DHCP, and your MEGAPIX camera is setup as DHCP; then once you search for your camera using IP Finder, the search results will display your MEGAPIX camera with already set network settings that correspond to your network requirements.

  • Page 20: Camera Reboot

    CAMERA REBOOT* R e s e t t i n g t h e C a m e r a Pressing the reset button on the camera’s control board for five (5) seconds will initialize all environmental variables to factory default. Previous setup for IP default, time, etc. will be deleted. If a system’s IP address is lost, reset the camera back to factory default.

  • Page 21: Megapix Camera Web Viewer

    WEBVIEWER* R e m o t e V i d e o M o n i t o r i n g V i a I n t e r n e t E x p l o r e r Monitor and configure the MEGAPIX camera through a built-in Webviewer.

  • Page 22: Accessing The Web Viewer Via Google Chrome, Mozilla Firefox And Safari

    WEBVIEWER* R e m o t e V i d e o M o n i t o r i n g V i a C h r o m e , F i r e f o x , o r S a f a r i You can view your MEGAPIX camera using web browsers other than Internet Explorer.

  • Page 23: First & Second Stream

    WEBVIEWER* D i s p l a y S c r e e n > F i r s t S t r e a m & S e c o n d S t r e a m Configure two stream settings for monitoring and recording. On the main monitoring page, user can view the camera with the First Stream settings or the Second Stream settings.

  • Page 24: Export Image

    WEBVIEWER* D i s p l a y S c r e e n > E x p o r t I m a g e E x p o r t a s c r e e n s h o t o f c u r r e n t l i v e v i d e o t o y o u r c o m p u t e r . Select the Export Image button.

  • Page 25: Print Image

    WEBVIEWER* D i s p l a y S c r e e n > P r i n t I m a g e P r i n t a s c r e e n s h o t o f t h e c u r r e n t l i v e v i d e o . Select the Print button.

  • Page 26: Panic Recording

    WEBVIEWER* D i s p l a y S c r e e n > R e c o r d I n s t a n t l y r e c o r d l i v e v i d e o t o y o u r l o c a l d r i v e . To Setup Instant Recording Select the Record button.
  • Page 27 WEBVIEWER* D i s p l a y S c r e e n > R e c o r d I n s t a n t l y r e c o r d l i v e v i d e o t o y o u r l o c a l d r i v e . To Start and Stop Instant Recording ...

  • Page 28: Megapix Camera Setup

    WEBVIEWER* D i s p l a y S c r e e n > S e t u p > V i d e o & A u d i o > S t r e a m S e t t i n g s The Recommended Stream Settings are indicated on the image to the left.
  • Page 29 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > V i d e o & A u d i o > C o l o r S e t t i n g s Initially, the factory default settings will appear;...
  • Page 30 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > V i d e o & A u d i o > C o l o r S e t t i n g s Initially, the factory default settings will appear;...
  • Page 31 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > V i d e o & A u d i o > A u d i o • Connect speaker/microphone wires (not included) to your camera and to a monitoring device (ex.: PC computer).
  • Page 32 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > V i d e o & A u d i o > P r i v a c y Z o n e The MV421 MEGAPIX camera offers up to 30 privacy zone settings.
  • Page 33 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > E v e n t > M o t i o n D e t e c t i o n The Motion detection feature allows the MEGAPIX camera to detect motion and trigger an alarm.
  • Page 34 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > E v e n t > M o t i o n A r e a The Motion detection feature allows the MEGAPIX camera to detect motion and trigger an alarm. To set the camera to send e-mail notifications for every motion triggered alarms, see page 50.
  • Page 35 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > E v e n t > S e n s o r S e t t i n g s To Use Sensor 1.

  • Page 36: Event

    WEBVIEWER* D i s p l a y S c r e e n > S e t u p > E v e n t > E m e r g e n c y A l a r m Send alarm triggered information to predefined destination (i.e.

  • Page 37: Network

    WEBVIEWER* D i s p l a y S c r e e n > S e t u p > N e t w o r k > N e t w o r k S e t t i n g s IP Mode: Select the type of IP address for the camera.
  • Page 38 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > N e t w o r k > D y n a m i c D N S If you do not use a public IP address, DDNS provides you to connect on WAN. DDNS allows you to connect to the MEGAPIX camera with a URL address instead of an IP address.
  • Page 39 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > N e t w o r k > C o m m u n i c a t i o n P r o t o c o l Current Protocol displays the current selected protocol.
  • Page 40 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > N e t w o r k > A c c e s s P e r m i s s i o n Use the Access Permission page to allow or block specific IP addresses to connect to the camera.
  • Page 41 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > N e t w o r k > O n V I F OnVIF is the Open Network Video Interface Forum. To use OnVIF, check Enable.
  • Page 42 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > N e t w o r k > R T P / R T S P RTP and RTSP Ports Configuration and Management Realtime Transport Protocol (RTP) and Realtime Streaming Protocol (RTSP) are data transfer protocol for delivering live and stored media to one or more clients at the same time.

  • Page 43: Record & Remote Backup

    WEBVIEWER* D i s p l a y S c r e e n > S e t u p > R e c o r d > S t o r a g e D e v i c e Device Information Click the icon Load Device Information to find the SD card connected to the camera.
  • Page 44 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > R e c o r d > S c h e d u l e The recording schedule applies to the SD card local recording. When the camera detects a network loss, it will start recording backup video to the SD card based on the schedule setup.
  • Page 45 WEBVIEWER* WEBVIEWER* D i s p l a y S c r e e n > S e t u p > R e c o r d > S c h e d u l e The recording schedule applies to the SD card local recording. When the camera detects a network loss, it will start recording backup video to the SD card based on the schedule setup.
  • Page 46 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > R e m o t e B a c k u p T a b The MC421 MEGAPIX Series allows you to backup your SD card locally to your computer without the need to remove it from the camera.
  • Page 47 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > U p g r a d e Upgrade the MEGAPIX camera with an upgrade file. System Version: Shows the current version of the camera.
  • Page 48 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > U p g r a d e Upgrade the MEGAPIX camera with an upgrade file. FTP Upgrade: a.
  • Page 49 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > U p g r a d e Upgrade the MEGAPIX camera with an upgrade file. Factory Defatult: You can reset the camera to its original factory settings.
  • Page 50 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > D a t e & T i m e Set date and time information. Insert the Date and Time.
  • Page 51 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > E - m a i l N o t i f i c a t i o n Send an e-mail notification when an event is triggered.
  • Page 52 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > U s e r A c c e s s C o n t r o l To add a new user: 1.
  • Page 53 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > S y s t e m I n f o r m a t i o n System Information will display all the current camera settings: System Version, Time Information, Network Information, and Stream Information.
  • Page 54 WEBVIEWER* D i s p l a y S c r e e n > S e t u p > S y s t e m > L o g s V i e w User can view detailed logs for system and/or events triggered and recorded in the camera. To view, select the type of report you want to view: System, Event, or System &...

  • Page 55: Specifications

    SPECIFICATIONS* IMAGE ½.8” CMOS Sensor Image Sensor Total Pixels 2016 (H) x 1108 (V) F1.6 (30IRE): 0.5 Lux [Color] Minimum Scene Illumination F1.6 (30IRE): 0.01 Lux [B&W] AUDIO Compression and Sampling Rate G.711 (8KHz) Input/ Output 1 Line IN, 1 Line OUT Mono OPERATIONAL Brightness 0~20...
  • Page 56 Supported OS: Windows XP, Windows Vista, Windows 7, MAC OS Web Viewer Supported Browser: Internet Explorer, Google Chrome, Mozilla Firefox, Safari Video Management Software DW Spectrum/ Pivot/ NxMS ENVIRONMENTAL Operating Temperature/ Humidity -10°C ~ 55°C (14°F ~ 131°F) Operating Humidity...

  • Page 57: Troubleshooting

    TROUBLESHOOTING Before sending your camera for repair, check the following or contact your technical specialist. I c a n ’ t f i n d m y M E G A P I X c a m e r a o n t h e I P F i n d e r s o f t w a r e . ...
  • Page 58 TROUBLESHOOTING Before sending your camera for repair, check the following or contact your technical specialist. I c a n ’ t c o n n e c t t o m y M E G A P I X c a m e r a t h r o u g h t h e W e b B r o w s e r ...
  • Page 59 TROUBLESHOOTING Before sending your camera for repair, check the following or contact your technical specialist. I c a n ’ t s e e t h e l i v e v i d e o o f m y M E G A P I X c a m e r a . ...
  • Page 60 TROUBLESHOOTING Before sending your camera for repair, check the following or contact your technical specialist. S e t t i n g t h e I P A d d r e s s f o r y o u r P C Dynamic Host Configuration Protocol (DHCP) is the default setting for the camera.

  • Page 61: Warranty

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Camera against defects in materials or workmanships as follows: Labor: For the initial two (2) years, one (1) year for IR LED, from the date of original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit with new or refurbished product at its option, at no charge.

  • Page 62: Limits & Exclusions

    LIMITS & EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.
  • Page 64 5436 W Crenshaw St, Tampa, FL 33634 PH: 866-446-3595 | FAX: 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours: Monday-Friday 8:30am to 8:00pm Eastern Standard Time...
