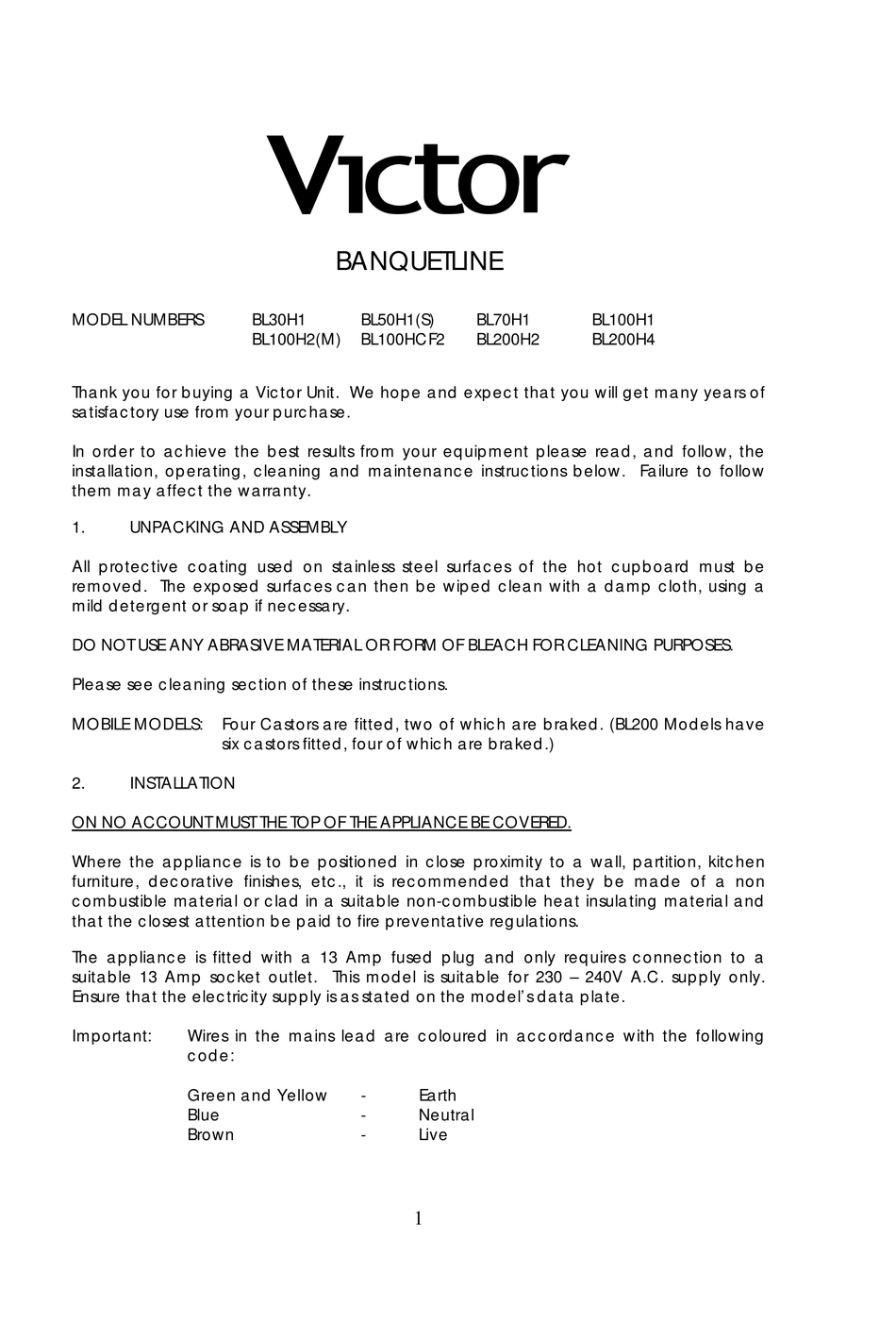

MODEL NUMBERS
Thank you for buying a Victor Unit. We hope and expect that you will get many years of
satisfactory use from your purchase.
In order to achieve the best results from your equipment please read, and follow, the
installation, operating, cleaning and maintenance instructions below. Failure to follow
them may affect the warranty.
1.
UNPACKING AND ASSEMBLY
All protective coating used on stainless steel surfaces of the hot cupboard must be
removed. The exposed surfaces can then be wiped clean with a damp cloth, using a
mild detergent or soap if necessary.
DO NOT USE ANY ABRASIVE MATERIAL OR FORM OF BLEACH FOR CLEANING PURPOSES.
Please see cleaning section of these instructions.
MOBILE MODELS:
Four Castors are fitted, two of which are braked. (BL200 Models have
six castors fitted, four of which are braked.)
2.
INSTALLATION
ON NO ACCOUNT MUST THE TOP OF THE APPLIANCE BE COVERED.
Where the appliance is to be positioned in close proximity to a wall, partition, kitchen
furniture, decorative finishes, etc., it is recommended that they be made of a non
combustible material or clad in a suitable non-combustible heat insulating material and
that the closest attention be paid to fire preventative regulations.
The appliance is fitted with a 13 Amp fused plug and only requires connection to a
suitable 13 Amp socket outlet. This model is suitable for 230 – 240V A.C. supply only.
Ensure that the electricity supply is as stated on the model's data plate.
Important:
Wires in the mains lead are coloured in accordance with the following
code:
Green and Yellow
Blue
Brown
V
BANQUETLINE
BL30H1
BL50H1(S)
BL100H2(M)
BL100HCF2
-
-
-
BL70H1
BL200H2
Earth
Neutral
Live
1
BL100H1
BL200H4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Victor BANQUETLINE BL30H1
Summary of Contents for Victor BANQUETLINE BL30H1
- Page 1 BL200H2 BL200H4 Thank you for buying a Victor Unit. We hope and expect that you will get many years of satisfactory use from your purchase. In order to achieve the best results from your equipment please read, and follow, the installation, operating, cleaning and maintenance instructions below.
- Page 2 Warning: This appliance must be earthed, do not touch internal wiring. As the colours of the wires in the mains lead on this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green and yellow must be connected to the terminal in the plug, which is marked with letter E or the sign .
- Page 3 AMBIENT / CHILLED CUPBOARD (BL100HCF2 ONLY) The BL100HCF2 is fitted with a second cupboard, which can be used as an ambient storage section or a chilled storage section (4 Eutectic plates required). There are two options of eutectic plate available: Chilling Grade 3 C (Green Spot) Freeze for 12 hours minimum at -8...
- Page 4 become less noticeable with age. There is no detriment to the corrosion resistance or general performance of the material. Do not use bleach for cleaning purposes (remember dishwasher powders, sterilising agents and similar products all contain chlorides). If used, black pit marks, large brown patches or other such effects may appear and permanent damage may be caused.
- Page 5 The Victor Manufacturing Ltd warranty does not affect any legal rights you have against the person who supplied your Victor Manufacturing Ltd goods or any other legal right against Victor Manufacturing Ltd under the laws of the United Kingdom – it is an addition to those rights.
- Page 6 No fault found warranty calls and installation errors are not covered under Victor Manufacturing Ltd warranty and will result in a charge being made for the callout and on-site labour for our appointed engineer. The Victor Manufacturing Ltd warranty does not cover the replacement of used consumables, or parts that require period adjustment or lubrication, unless the part is faulty.
