Version 0.1
FEATURES AND SPECIFICATIONS
LEDS: 18, 12W each (RGBWA, 5 in 1)
White LED Color Temperature: 8000-8500K
Beam angle: 30 º
Control system: DMX-512 + Stand Alone Modes
DMX channels: 5/9
DMX connectors: 3 pin XLR and 5 pin XLR
Refresh Rate: >3000 Hz)
Voltage: 100 - 240 VAC 50/60Hz
Max power consumption: 216 Watts
Cooling: Internal Fan
Body material: Die Cast Aluminum
Body color: Black (White Optional)
Size: 13.3"L x 11.81"W x 4.56"H (With Yoke)
Weight: 16.5 lbs. (7.5 kg)

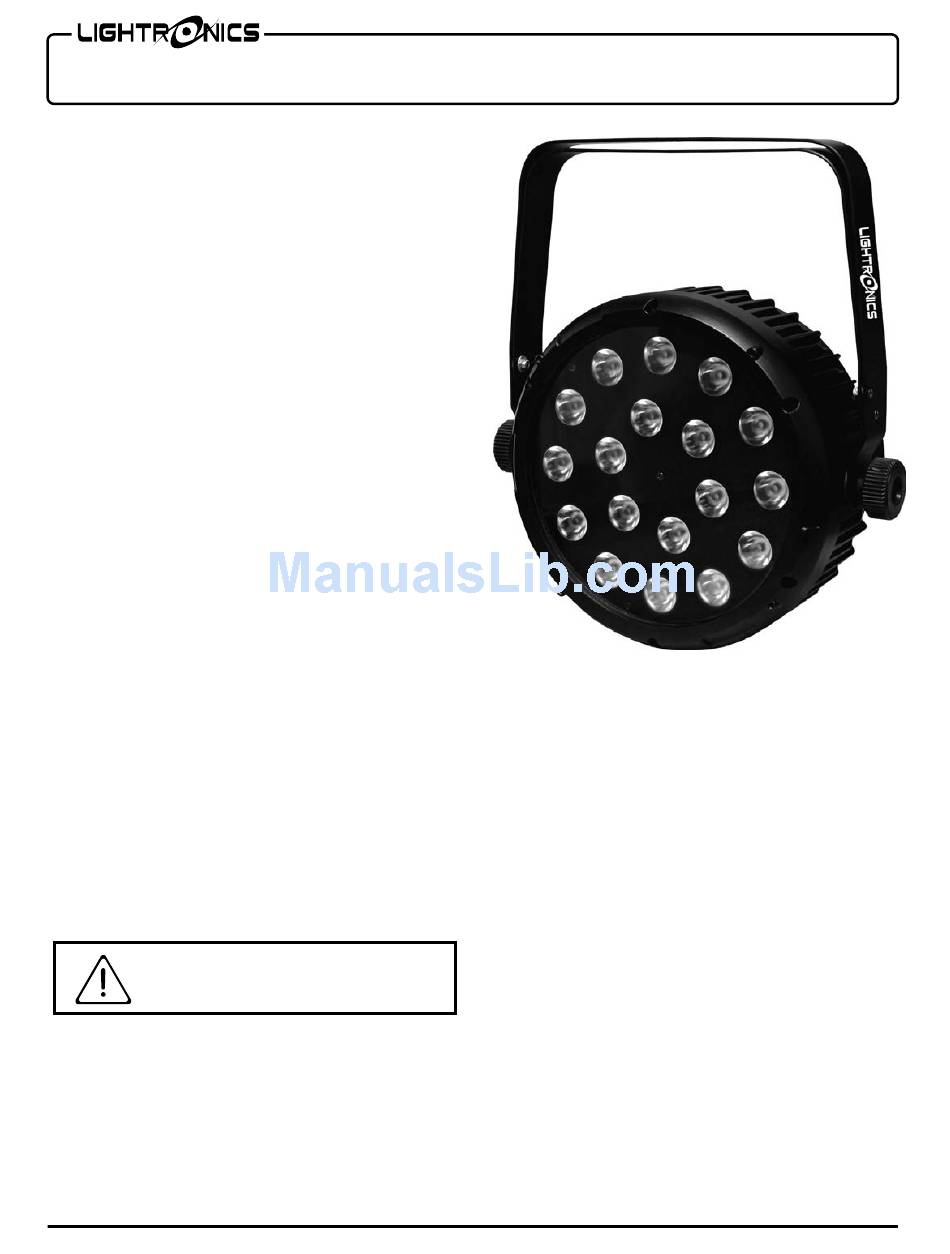

DESCRIPTION
The FXLD1218FRP5I is a RGBWA LED lighting
fixture. It is suitable for stage, disco, night club, and
other artistic applications. It has several stand-alone
control modes and can operate via a DMX-512
external signal.
A double yoke enables the fixture to be operated in
several positions.
INSTALLATION
LOCATION
The FXLD1218FRP5I is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from
moisture and heat. Keep the vent holes clear. Holes
are provided on the yokes to install a lighting bar pipe
clamp. Use a safety cable when hanging the fixture.
POWER CONNECTIONS
RISK OF ELECTRIC SHOCK
The FXLD1218FRP5I has a blue turn and lock
connector for power input. A compatible power cable
is provided for connection to a 120 VAC, 15 Amp,
60Hz, grounded service. Push the blue connector on
the cable straight into the blue connector on the unit
and twist approx. 1/8 turn clockwise to latch it.
www.lightronics.com
Lightronics Inc.
FXLD1218FRP5I LED FIXTURE
OWNERS MANUAL
CAUTION
509 Central Drive Virginia Beach, VA 23454
The white turn and lock connector on the unit is used
to pass power on to another FXLD1218FRP5I unit. A
mating white connector is also provided.
Caution is advised since the line cord is rated for
approx. 7 Amps maximum.
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
receiving device and then to others in a continuous
"daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device pack.
Page 1 of 6
08/01/2016
757 486 3588
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lightronics FXLD1218FRP5I
Summary of Contents for Lightronics FXLD1218FRP5I
- Page 1 The white turn and lock connector on the unit is used INSTALLATION to pass power on to another FXLD1218FRP5I unit. A mating white connector is also provided. LOCATION Caution is advised since the line cord is rated for The FXLD1218FRP5I is rated IP20 and is intended for approx.
- Page 2 Some units use 3 pin connectors. Others use 5 pin. The DMX OPERATION FXLD1218FRP5I has both. DMX can be received on For DMX operation the FXLD1218FRP5I fixture can either the 3 pin or 5 pin MALE connector on the back be configured as a 5 channel, or 9 channel unit.
- Page 3 5mm x 20mm externally accessible fuse. Replace the fuse ONLY with the same size and type. The FXLD1218FRP5I does not contain any other user serviceable parts. Internal service on the unit by other than Lightronics authorized agents will void the warranty.
-
Page 4: Menu Navigation
Page 4 of 6 FXLD1218FRP5I LED FIXTURE Version 0.1 OWNERS MANUAL 08/01/2016 MENU NAVIGATION www.lightronics.com Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 757 486 3588... - Page 5 Page 5 of 6 FXLD1218FRP5I LED FIXTURE Version 0.1 OWNERS MANUAL 08/01/2016 DMX VALUES AND FUNCTIONS 5 CHANNEL MODE (MODE dXXX) CHANNEL NO. FUNCTION 0 - 255 Red Level 0 - 255 Green Level 0 - 255 Blue Level 0 - 255 White Level 0 - 255 Amber Level 9 CHANNEL MODE (MODE A.XXX)
- Page 6 H) This warranty does not cover the cost of shipping products to or from Lightronics for service. I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty without prior notification.
