Lightronics FXLD336ZM3I Owner's Manual

Version 0.1
FEATURES AND SPECIFICATIONS
LEDS: 36 Three Watt LEDs (RGB 3 in 1)
Beam angle: 12º - 60º motorized zoom
Control system: DMX-512
DMX channels: 6
DMX connectors: 3 pin XLR
Voltage: 90 - 264 VAC 50/60Hz
Max power consumption: 140 Watts
Size: 10 7/8"D x 8 3/4"W x 8 3/4"H
Body material: Cast Aluminim
IP Rating: IP20
Body color: black
Weight: 12.1 lbs
DESCRIPTION

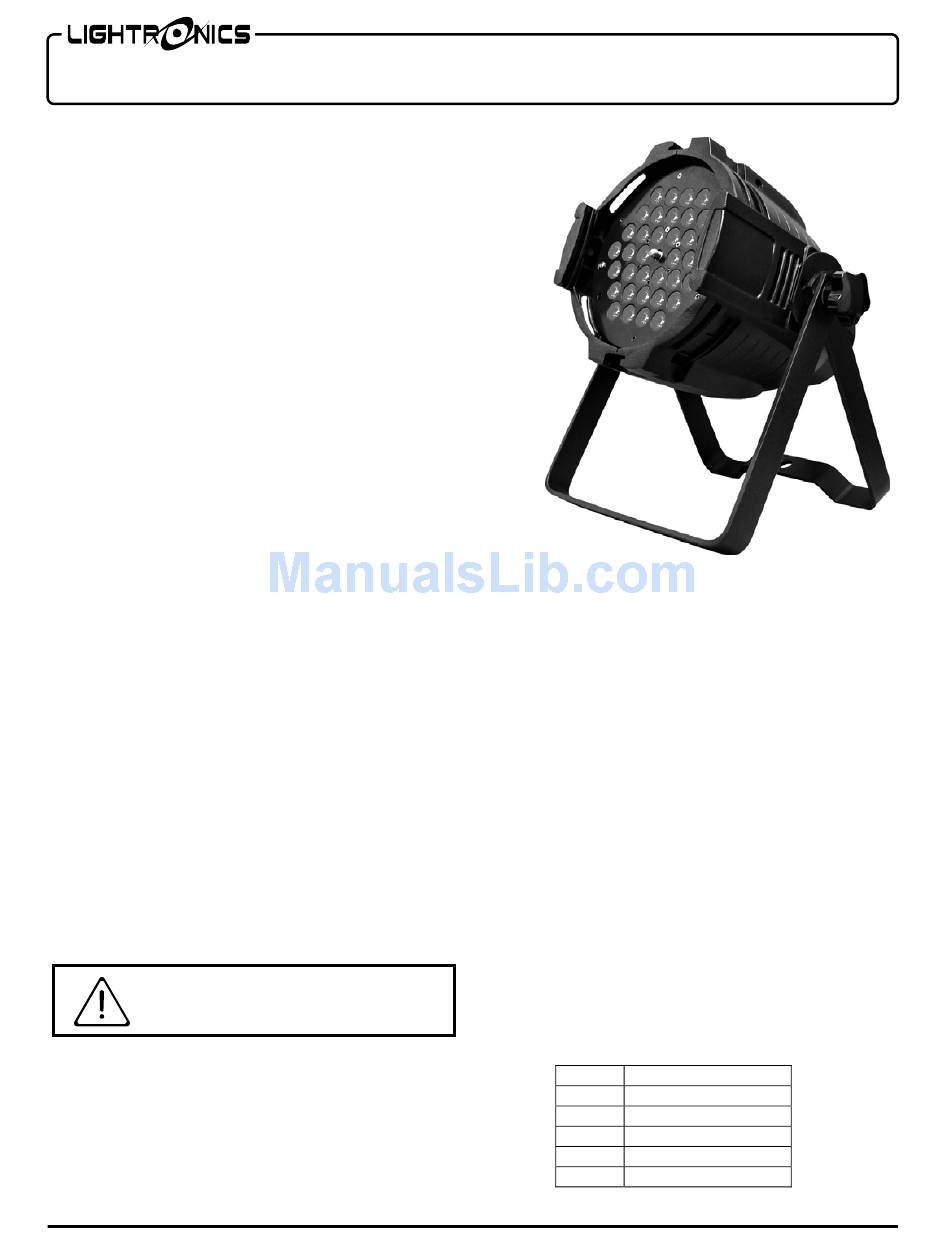

The FXLD336ZM3I is a PAR style RGB LED
lighting fixture with zoom capability. It is suitable for
stage, disco, night club, and other artistic applications.
It has several stand alone control modes, a master/slave
mode, and can operate via a DMX-512 external signal.
A double yoke enables it to be operated in several
positions.
INSTALLATION
LOCATION
The FXLD336ZM3I is intended for
and is rated IP20.
ONLY
Locate the unit in a well ventilated area away from
moisture and heat. Holes are provided on the yokes to
install a lighting bar pipe clamp. A safety cable should
also be used. Do not block any vent holes.
POWER CONNECTIONS
The FXLD336ZM3I has a line cord for connection to a
120 VAC, 15 Amp, 60Hz, grounded service.
RISK OF ELECTRIC SHOCK
The safety ground pin on the power cord must be used.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
www.lightronic.com
Lightronics Inc.
FXLD336ZM3I LED FIXTURE
OWNERS MANUAL
INDOOR USE
CAUTION
509 Central Drive Virginia Beach, Va 234354
receiving device and then to others in a continuous
"daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device pack.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors which can be used
for DMX control. They are both XLR type connectors.
Some units use 3 pin connectors. Others use 5 pin
connectors. The FXLD336ZM3I receives a DMX
signal on the 3 pin MALE connector on the back of the
unit. The 3 pin FEMALE connector is used to connect
the next DMX device on the control chain. If your
console uses a 5 pin connector you can make up an
adapter cable to accommodate this. The table below
shows the pin assignments for BOTH the 3 pin and 5
pin connectors.
IN # SIGNAL NAME
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
4 NOT USED
5 NOT USED
