Lightronics FXLD1218FR5I Owner's Manual

Version 1.1
FEATURES AND SPECIFICATIONS
LEDs: 18, 12W each (RGBWA, 5 in 1)
White LED Color Temperature: 8000-8500K
Beam angle: 45º (25° Optional)
Control system: DMX-512 + Stand Alone Modes
DMX channels: 5/9
DMX connectors: 3 pin XLR
Refresh Rate: >3000 Hz)
Voltage: 100 - 240 VAC 50/60Hz
Max power consumption: 216 Watts
Ingress Protection: IP20 - Indoor Use Only
Cooling: Intelligent Fan
Body material: Die Cast Aluminum
Body color: Black (White Optional)
Size: 13.3"L x 11.81"W x 4.56"H (With Yoke)
Weight: 16.5 lbs. (7.5 kg)
DESCRIPTION

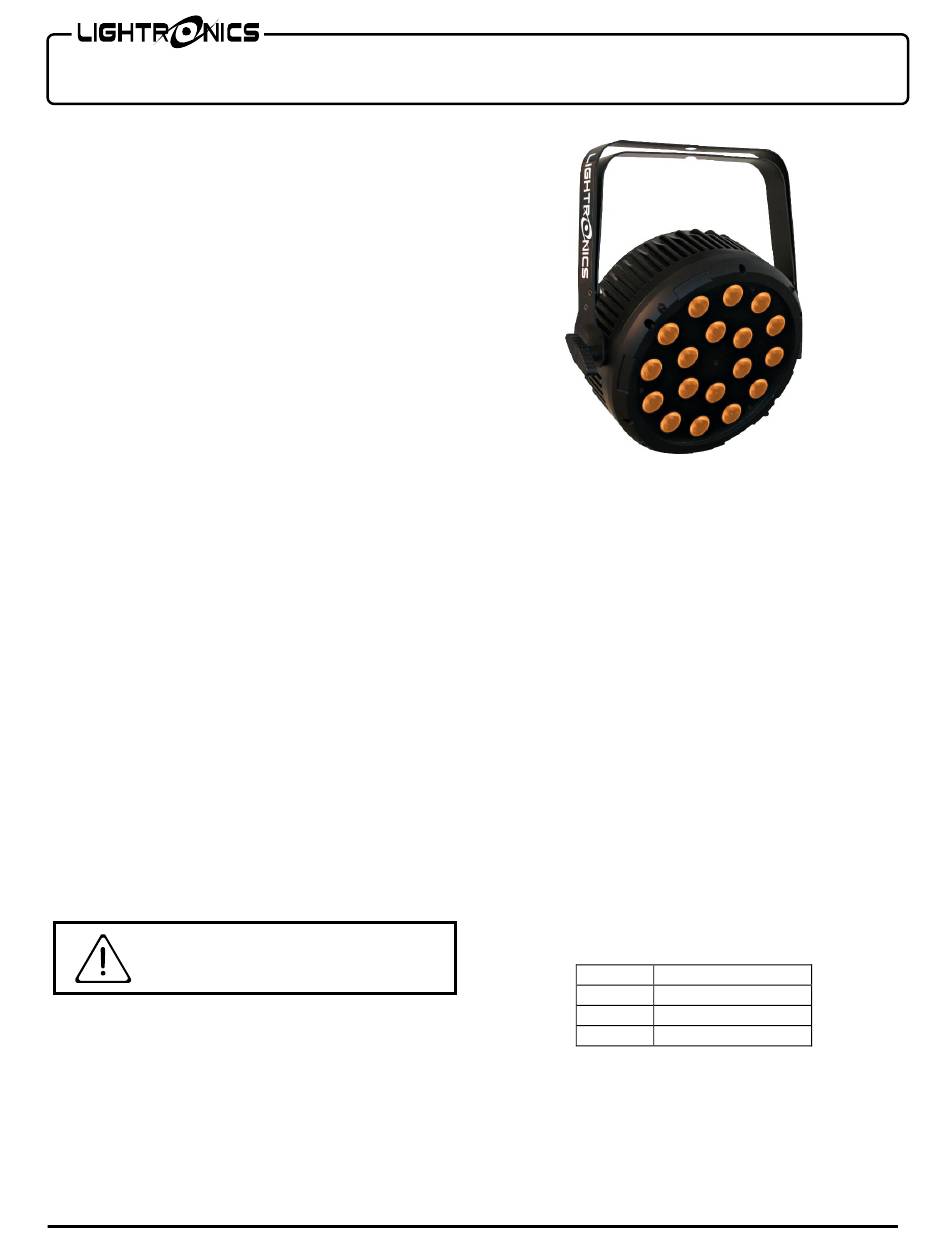

The FXLD1218FR5I is a RGBWA LED lighting fixture.
It is suitable for stage, house of worship, entertainment
venues, and other artistic applications. It has several
stand-alone control modes and can operate via a
DMX512 external signal.
A double yoke enables the fixture to be operated in
several positions.
INSTALLATION
LOCATION
Locate the unit indoors in a well ventilated area away
from moisture and heat. Keep the vent holes clear.
Holes are provided on the yokes to install a lighting bar
pipe clamp. When hanging fixture, use a safety cable
to the provided safety eye inserted in the rear of the
fixture.
POWER CONNECTIONS
RISK OF ELECTRIC SHOCK
The FXLD1218FR5I has a blue turn and lock
connector for power input. A compatible power cable is
provided for connection to a 120 VAC, 15 Amp, 60Hz,
grounded service. Push the blue connector on the
cable straight into the blue connector on the unit and
twist approx. 1/8 turn clockwise to latch it.
The white turn and lock connector on the unit is used
to pass power on to another FXLD1218FR5I unit. A
mating white connector is also provided.
www.lightronics.com
Lightronics Inc.
FXLD1218FR5I LED FIXTURE
OWNER'S MANUAL
CAUTION
509 Central Drive Virginia Beach, VA 23454
THE LINE CORD IS RATED FOR 7 AMPS MAXIMUM
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words, the control signal
cable proceeds from the controller to the first receiving
device and then to others in one continuous chain.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device.
DMX CONNECTOR PIN ASSIGNMENTS
The FXLD1218FR5I receives a DMX signal on the 3
pin MALE connector on one side of the unit. The 3 pin
FEMALE connector is used to connect the next DMX
device on the control chain.
PIN #
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
DMX TERMINATION
A DMX chain should be terminated at the last receiving
device on the chain. This is done by installing a 1/4
Watt, 120 Ohm resistor across the DATA - and DATA
+ wires at the last device.
fixtures very close together and a very short run to the
Page 1 of 4
05/11/2022
SIGNAL NAME
If you have only a few
757 486 3588
