Lightronics FXLD127FRP5I2 Owner's Manual

Version 1.0
FEATURES AND SPECIFICATIONS
LEDS: 7, 12W each (RGBWA, 5in1)
White LED Color Temperature: 6500K
Beam angle: 25º (15° optional)
Control system: DMX512 + Stand Alone Modes
DMX channels: 5/9
DMX connector: 3 pin XLR I/O
Refresh Rate: >3000 Hz
Voltage: 100 - 240 VAC 50/60Hz
Max power consumption: 84 Watts plus
Auto-Switching Power supply
Cooling: Intelligent Fan
Body material: Die Cast Aluminum
Body color: Black
Size: 9.25"L x 4.65"W x 11.42"H (with Yoke)
Weight: 8.82 lbs. (4kg)
DESCRIPTION

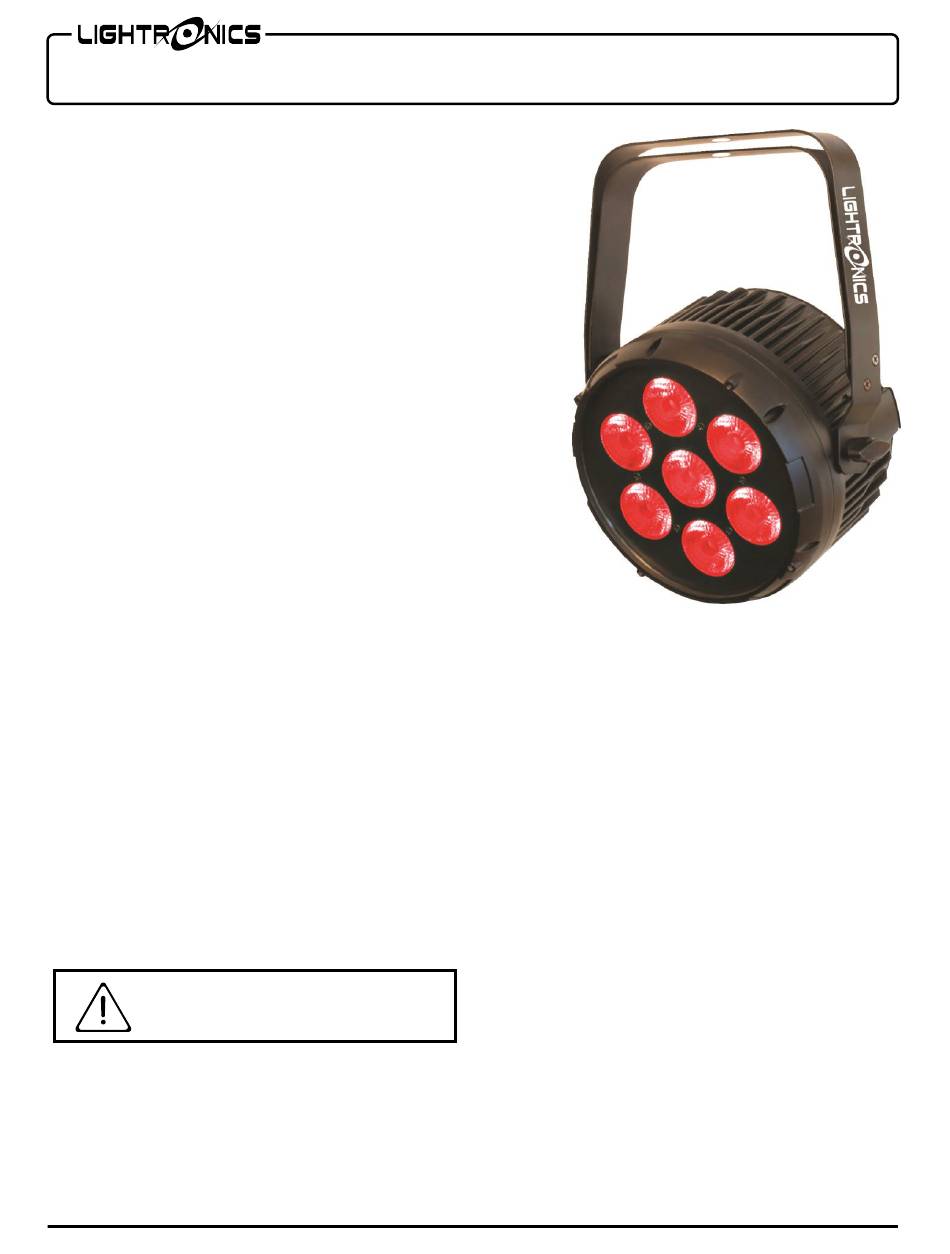

The FXLD127FRP5I2 is a RGBWA LED lighting fixture. It
is suitable for stage, houses of worship, entertainment
venues, and other artistic applications. It has several stand-
alone control modes and can operate via a DMX512 external
signal.
A double yoke enables the fixture to be operated in several
positions.
INSTALLATION
LOCATION
The FXLD127FRP5I2 is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from moisture
and heat. Keep the vent holes clear. Holes are provided on
the yokes to install a lighting bar pipe clamp. Use a safety
cable when hanging the fixture.
POWER CONNECTIONS
RISK OF ELECTRIC SHOCK
The FXLD127FRP5I2 has a blue turn and lock connector for
power input. A compatible power cable is provided for
connection to a 120 VAC, 15 Amp, 60Hz, grounded service.
Push the blue connector on the cable straight into the blue
connector on the unit and twist approx. 1/8 turn clockwise to
latch it.
www.lightronics.com
Lightronics Inc.
FXLD127FRP5I2 LED FIXTURE
OWNERS MANUAL
CAUTION
509 Central Drive, Virginia Beach, VA 23454
The white turn and lock connector on the unit is used to pass
power on to another FXLD127FRP5I2 unit. A mating white
connector is also provided.
Caution is advised since the line cord is rated for approx. 7
Amps maximum.
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using DMX control should be connected as a chain
of devices. In other words the control signal cable should
proceed from the controller to the first receiving device and
then to others in a continuous "daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector to be
used to connect the chain. The control cable should NOT be
split into a multiple run star arrangement with a cable
running from the controller directly to each receiving device
pack.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors generally used for DMX
control. They are both XLR type connectors. Some units
use 3 pin connectors. Others use 5 pin.
FXLD127FRP5I2 only has 3 pin connections. DMX is
Page 1 of 6
05/06/2019
