Dimm Slots; Pci_E1~2: Pcie Expansion Slots - MSI A520M PRO-VH Manual

DIMM Slots

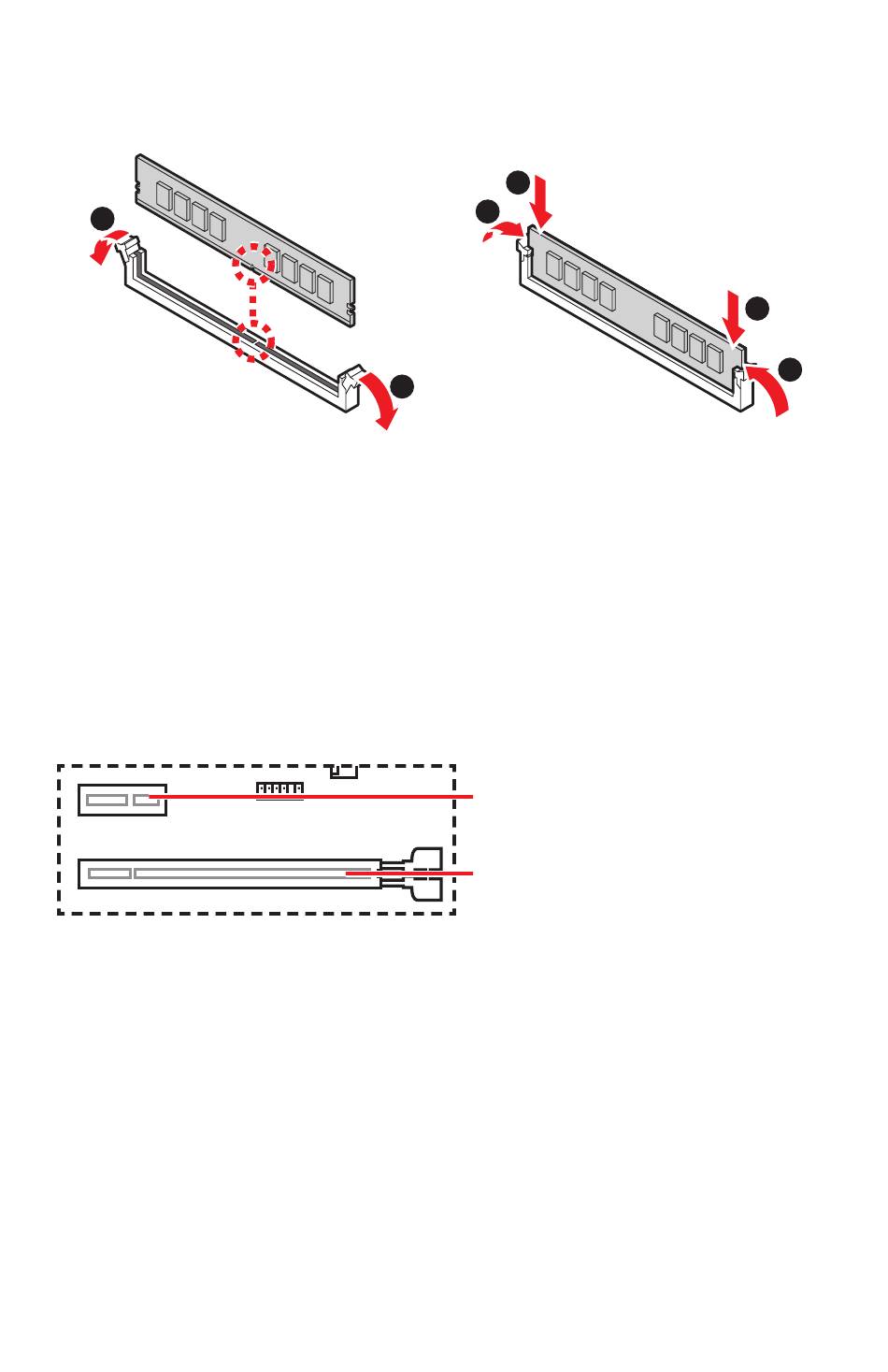

Please install the memory module into the DIMM slot as shown below.
1
⚠
Important
Due to chipset resource usage, the available capacity of memory will be a little less
∙
than the amount of installed.
Please note that the maximum capacity of addressable memory is 4GB or less
∙
for 32-bit Windows OS due to the memory address limitation. Therefore, we recom-
mended that you to install 64-bit Windows OS if you want to install more than 4GB
memory on the motherboard.

PCI_E1~2: PCIe Expansion Slots

⚠
Important
If you install a large and heavy graphics card, you need to use a tool such as MSI
∙
Gaming Series Graphics Card Bolster to support its weight to prevent deformation
of the slot.
When adding or removing expansion cards, always turn off the power supply and
∙
unplug the power supply power cable from the power outlet. Read the expansion
card's documentation to check for any necessary additional hardware or software
changes.
2
3
1
PCI_E1: PCIe 3.0 x1 (PCH)
PCI_E2: PCIe 3.0 x16 (CPU)
2
3
