Quick Start
Thank you for purchasing the MSI®
Start section provides demonstration diagrams about how to install your computer.
Some of the installations also provide video demonstrations. Please link to the URL to
watch it with the web browser on your phone or tablet. You may have even link to the
URL by scanning the QR code.
Preparing Tools and Components
AMD
AM4 CPU
®
DDR4 Memory
Thermal Paste
Phillips Screwdriver
migliori offerte di Schede Madri

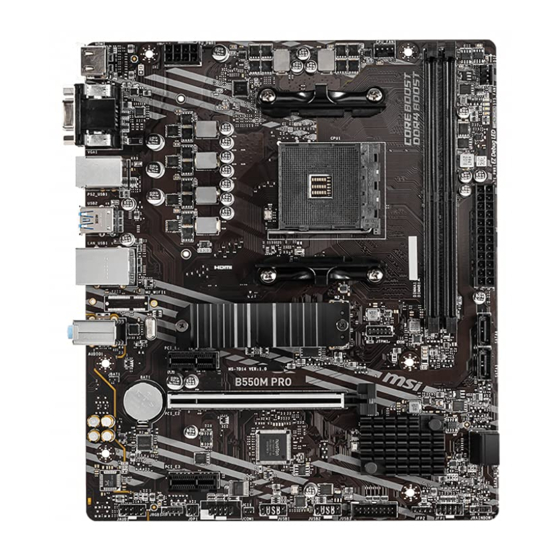

B550M PRO/ A520M PRO
CPU Fan
Power Supply Unit
SATA Hard Disk Drive
A Package of Screws
MSI A520M PRO
motherboard. This Quick
Chassis
Graphics Card
SATA DVD Drive
Quick Start
o
1
Advertisement
Table of Contents
Related Manuals for MSI B550M PRO
Summary of Contents for MSI B550M PRO
- Page 1 MSI A520M PRO cerca il tuo prodotto tra le migliori offerte di Schede Madri Quick Start Thank you for purchasing the MSI® B550M PRO/ A520M PRO motherboard. This Quick Start section provides demonstration diagrams about how to install your computer.
-
Page 2: Quick Start
Safety Information ∙ The components included in this package are prone to damage from electrostatic discharge (ESD). Please adhere to the following instructions to ensure successful computer assembly. ∙ Ensure that all components are securely connected. Loose connections may cause the computer to not recognize a component or fail to start. -
Page 3: Installing A Processor
Installing a Processor https://youtu.be/Xv89nhFk1vc Quick Start... - Page 4 ⚠ Important If you are installing the screw-type CPU heatsink, please follow the figure below to remove the retention module first and then install the heatsink. Quick Start...
-
Page 5: Installing Ddr4 Memory
Installing DDR4 memory http://youtu.be/T03aDrJPyQs Quick Start... -
Page 6: Connecting The Front Panel Header
Connecting the Front Panel Header http://youtu.be/DPELIdVNZUI Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + HDD LED - Power LED - Reset Switch Power Switch JFP1 Reset Switch Power Switch Reserved No Pin HDD LED - HDD LED HDD LED +... -
Page 7: Installing The Motherboard
Installing the Motherboard BAT1 https://youtu.be/wWI6Qt51Wnc Torque: 3 kgf·cm* BAT1 *3 kgf·cm = 0.3 N·m = 2.6 lbf·in Quick Start... -
Page 8: Connecting The Power Connectors
Connecting the Power Connectors http://youtu.be/gkDYyR_83I4 ATX_PWR1 CPU_PWR1 Quick Start... -
Page 9: Installing Sata Drives
Installing SATA Drives http://youtu.be/RZsMpqxythc Quick Start... -
Page 10: Installing A Graphics Card
Installing a Graphics Card http://youtu.be/mG0GZpr9w_A Quick Start... -
Page 11: Connecting Peripheral Devices
Connecting Peripheral Devices Quick Start... -
Page 12: Power On
Power On Quick Start... -
Page 13: Table Of Contents
Contents Quick Start ......................1 Preparing Tools and Components................1 Safety Information ....................2 Installing a Processor .................... 3 Installing DDR4 memory ..................5 Connecting the Front Panel Header ..............6 Installing the Motherboard ..................7 Connecting the Power Connectors ................ 8 Installing SATA Drives .................... - Page 14 JRAINBOW1: Addressable RGB LED connectors ..........38 Installing OS, Drivers & Utilities ................. 39 Installing Windows® 10 ..................39 Installing Drivers ....................39 Installing Utilities ....................39 UEFI BIOS ......................40 BIOS Setup ......................41 Entering BIOS Setup ..................... 41 Resetting BIOS ......................
-
Page 15: Specifications
∙ Supports non-ECC UDIMM memory ∙ Supports ECC UDIMM memory (non-ECC mode) ∙ Supports un-buffered memory * Please refer www.msi.com for more information on compatible memory. ∙ 1x PCIe x16 slot (PCI_E2) ▪ B550M PRO supports PCIe 4.0/3.0* Expansion Slot ▪... - Page 16 Continued from previous page AMD B550/ A520 Chipset ∙ 4x SATA 6Gb/s ports ∙ 1x M.2 slot (Key M) (from AMD Processor) ▪ B550M PRO Supports PCIe 4.0/ 3.0 x4* Storage ▪ A520M PRO Supports PCIe 3.0 x4 ▪ Supports SATA 6Gb/s ▪...
- Page 17 Continued from previous page ∙ 1x 24-pin ATX main power connector ∙ 1x 8-pin ATX 12V power connector ∙ 4x SATA 6Gb/s connectors ∙ 1x Serial port connector ∙ 1x M.2 slot (M-Key) ∙ 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) ∙...
- Page 18 BIOS Features ∙ ACPI 6.0, SMBIOS 2.8 ∙ Multi-language ∙ Drivers ∙ DRAGON CENTER Software ∙ CPU-Z MSI GAMING ∙ Google Chrome™, Google Toolbar, Google Drive ∙ Norton™ Internet Security Solution ∙ Mystic Light ∙ User Scenario ∙ Hardware Monitor ∙...
- Page 19 ▪ DDR4 Boost ▪ Core Boost ▪ Creator Genie (Only for B550M PRO) ▪ Lightning Gen 4 PCI-E Slot (Only for B550M PRO) ▪ Lightning Gen 4 M.2 (Only for B550M PRO) ∙ Protection ▪ PCI-E Steel Armor (Only for B550M PRO) ∙...
-
Page 20: Package Contents
IO Shielding Case Badge Application Driver DVD Quick installation guide Documentation MSI components compatibility & reward program card (Only for B550M PRO) ⚠ Important If any of the above items are damaged or missing, please contact your retailer. Package contents... -
Page 21: Block Diagram
Block Diagram 2 Channel DDR4 Memory Processor 1x M.2 1x PCIe x16 slot PCI Express Bus 4x USB 3.2 Gen1 PCIE Front Audio Jacks Realtek ALC892/ 2x PCIe x1 slots Rear Audio Jacks ALC897 NUVOTON 6687 6x USB 2.0 4x SATA 6Gb/s 2x USB 3.2 Gen1 1x Realtek RTL8111H LAN Block Diagram... -
Page 22: Rear I/O Panel
Rear I/O Panel USB 3.2 Gen 1 (5Gbps) Type-A VGA Port 1 Gbps LAN PS/2 Combo port Audio Ports USB 2.0 Type-A DisplayPort USB 3.2 Gen 1 (5Gbps) Type-A LAN Port LED Status Table Link/ Activity LED Speed LED Status Description Status 1 Gbps LAN... - Page 23 ∙ Device Selection - allows you to select a audio output source to change the related options. The check sign indicates the devices as default. ∙ Application Enhancement - the array of options will provide you a complete guidance of anticipated sound effect for both output and input device. ∙...
-
Page 24: Overview Of Components
Overview of Components CPU_FAN1 Processor Socket CPU_PWR1 DIMMA1 DIMMB1 SYS_FAN1 ATX_PWR1 JTPM1 M2_1 SATA4 PCI_E1 SATA3 JBAT1 BAT1 PCI_E2 SATA ▼ 1 ▲ 2 PCI_E3 JRAINBOW1 JAUD1 JFP1 JRGB1 JCOM1 JFP2 JCI1 JUSB3 JUSB1 JUSB2 Overview of Components... - Page 25 Component Contents Port Name Port Type Page CPU_FAN1, SYS_FAN1 Fan Connectors CPU_PWR1, ATX_PWR1 Power Connectors DIMMA1, DIMMA2 DIMM Slots JAUD1 Front Audio Connector JBAT1 Clear CMOS (Reset BIOS) Jumper JCI1 Chassis Intrusion Connector JCOM1 Serial Port Connector JFP1, JFP2 Front Panel Connectors JRAINBOW1 Addressable RGB LED connectors JRGB1...
-
Page 26: Processor Socket
Any attempt to operate beyond product specifications is not recommended. MSI® does not guarantee the damages or risks caused by inadequate operation beyond product specifications. Overview of Components... -
Page 27: Dimm Slots
Due to AM4 CPU/memory controller official specification limitation, the frequency of ∙ memory modules may operate lower than the marked value under the default state. Please refer www.msi.com for more information on compatible memory. ∙ Overview of Components... -
Page 28: Pci_E1~3: Pcie Expansion Slots
PCI_E3: PCIe 3.0 x1 (PCH) ⚠ Important If you install a large and heavy graphics card, you need to use a tool such as MSI ∙ Gaming Series Graphics Card Bolster to support its weight to prevent deformation of the slot. -
Page 29: M2_1: M.2 Slot (Key M)
M2_1: M.2 Slot (Key M) ⚽ Video Demonstration Watch the video to learn how to Install M.2 module. http://youtu.be/JCTFABytrYA BAT1 Installing M.2 module 1. Loosen the screws of M.2 SHIELD FROZR heatsink. 2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal pads. - Page 30 3. Move and fasten the M.2 standoff to the appropriate position for your M.2 SSD, or remove the M.2 standoff if your M.2 SSD length is same as the length of M.2 heatsink to avoid damage to the M.2 SSD. 4.
-
Page 31: Jfp1, Jfp2: Front Panel Connectors
JFP1, JFP2: Front Panel Connectors These connectors connect to the switches and LEDs on the front panel. Power LED Power Switch JFP1 Reserved HDD LED Reset Switch HDD LED + Power LED + BAT1 HDD LED - Power LED - Reset Switch Power Switch Reset Switch... -
Page 32: Cpu_Pwr1, Atx_Pwr1: Power Connectors
CPU_PWR1, ATX_PWR1: Power Connectors These connectors allow you to connect an ATX power supply. CPU_PWR1 Ground +12V Ground +12V Ground +12V Ground +12V BAT1 +3.3V +3.3V +3.3V -12V Ground Ground PS-ON# Ground Ground Ground ATX_PWR1 Ground Ground PWR OK 5VSB +12V +12V +3.3V... -
Page 33: Jusb3: Usb 3.2 Gen 1 5Gbps Connector
⚠ Important ∙ Note that the VCC and Ground pins must be connected correctly to avoid possible damage. ∙ In order to recharge your iPad, iPhone and iPod through USB ports, please install MSI® DRAGON CENTER utility. Overview of Components... -
Page 34: Jtpm1: Tpm Module Connector
JTPM1: TPM Module Connector This connector is for TPM (Trusted Platform Module). Please refer to the TPM security platform manual for more details and usages. SPI Power SPI Chip Select Master In Slave Out (SPI Data) Master In Slave In (SPI Data) Reserved SPI Clock Ground... - Page 35 Select PWM mode or DC mode There are gradient points of the fan speed that allow you to adjust fan speed in relation to CPU temperature. ⚠ Important Make sure fans are working properly after switching the PWM/ DC mode. Pin definition of fan connectors PWM Mode pin definition DC Mode pin definition...
-
Page 36: Jci1: Chassis Intrusion Connector
JCI1: Chassis Intrusion Connector This connector allows you to connect the chassis intrusion switch cable. Normal Trigger the chassis (default) intrusion event BAT1 Using chassis intrusion detector 1. Connect the JCI1 connector to the chassis intrusion switch/ sensor on the chassis. 2. -
Page 37: Jbat1: Clear Cmos (Reset Bios) Jumper
JBAT1: Clear CMOS (Reset BIOS) Jumper There is CMOS memory onboard that is external powered from a battery located on the motherboard to save system configuration data. If you want to clear the system configuration, set the jumpers to clear the CMOS memory. Keep Data Clear CMOS/ (default) -
Page 38: Jrgb1: Rgb Led Connectors
(12V/G/R/B) with the maximum power rating of 3A (12V). Always turn off the power supply and unplug the power cord from the power outlet ∙ before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components... -
Page 39: Jrainbow1: Addressable Rgb Led Connectors
(5V). In the case of 20% brightness, the connector supports up to 200 LEDs. ∙ Always turn off the power supply and unplug the power cord from the power outlet before installing or removing the RGB LED strip. ∙ Please use MSI’s software to control the extended LED strip. Overview of Components... -
Page 40: Installing Os, Drivers & Utilities
Installing OS, Drivers & Utilities Please download and update the latest utilities and drivers at www.msi.com Installing Windows® 10 1. Power on the computer. 2. Insert the Windows® 10 installation disc/USB into your computer. 3. Press the Restart button on the computer case. -
Page 41: Uefi Bios
UEFI has many new functions and advantages that traditional BIOS cannot achieve, and it will completely replace BIOS in the future. The MSI UEFI BIOS uses UEFI as the default boot mode to take full advantage of the new chipset’s capabilities. -
Page 42: Bios Setup
BIOS Setup The default settings offer the optimal performance for system stability in normal conditions. You should always keep the default settings to avoid possible system damage or failure booting unless you are familiar with BIOS. ⚠ Important BIOS items are continuously update for better system performance. Therefore, the ∙... -
Page 43: Resetting Bios
Updating BIOS Updating BIOS with M-FLASH Before updating: Please download the latest BIOS file that matches your motherboard model from MSI website. And then save the BIOS file into the USB flash drive. Updating BIOS: 1. Insert the USB flash drive that contains the update file into the USB port. - Page 44 1. Please download the latest BIOS file that matches your motherboard model from the MSI® website. 2. Rename the BIOS file to MSI.ROM, and save it to the root of your USB flash drive. 3. Connect the power supply to CPU_PWR1 and ATX_PWR1. (No need to install CPU and memory.)
-
Page 45: Ez Mode
EZ Mode At EZ mode, it provides the basic system information and allows you to configure the basic setting. To configure the advanced BIOS settings, please enter the Advanced Mode by pressing the Setup Mode switch or F7 function key. Screenshot Setup Mode switch A-XMP Profile... - Page 46 ∙ System information - shows the CPU/ DDR speed, CPU/ MB temperature, MB/ CPU type, memory size, CPU/ DDR voltage, BIOS version and build date. ∙ Boot device priority bar - you can move the device icons to change the boot priority. The boot priority from high to low is left to right.
- Page 47 ▪ To add a BIOS item to a favorite menu 1. Select a BIOS item not only on BIOS menu but also on search page. 2. Right-click or press F2 key. 3. Choose a favorite page and click on OK. ▪...
-
Page 48: Advanced Mode
Advanced Mode Press Setup Mode switch or F7 function key can switch between EZ Mode and Advanced Mode in BIOS setup. BIOS menu BIOS menu selection selection Menu display ∙ BIOS menu selection - the following options are available: ▪ SETTINGS - allows you to specify the parameters for chipset and boot devices. ▪... -
Page 49: Settings Menu
SETTINGS Menu This menu allows you to specify the parameters for system, chipset and boot devices. ▶ System Status sub-menu The System Status sub-menu allows you to set the system clock and view system information. ▶ System Date Sets the system date. Use tab key to switch between date elements. The format is <day>... - Page 50 ▶ Integrated Graphics Configuration sub-menu (optional) Adjusts integrated graphics settings for optimum system. This sub-menu is only available when using the CPU which integrate with IGP. ▶ USB Configuration sub-menu Sets the onboard USB controller and device function. Press Enter to enter the sub-menu.
-
Page 51: Oc Menu
OC Menu This menu allows you to configure the frequencies and voltages for overclocking. Please note that, higher frequency and voltage may benefit overclocking capability but cause system un-stability. ⚠ Important ∙ Overclocking your PC manually is only recommended for advanced users. Overclocking is not guaranteed, and if done improperly, it could void your warranty ∙... - Page 52 ▶ FCLK Frequency [Auto] Sets the FCLK frequency (Internal Data Fabric clock of DRAM). Please note the overclocking behavior is not guaranteed. ▶ UCLK DIV1 Mode [Auto] Sets UCLK (Internal memory controller clock) mode. ▶ Memory Try It ! [Disabled] It can improve memory compatibility or performance by choosing optimized memory preset.
-
Page 53: M-Flash Menu
M-FLASH provides the way to update BIOS with a USB flash drive. Please download the latest BIOS file that matches your motherboard model from MSI website, save the BIOS file into your USB flash drive. And then follow the steps below to update BIOS. -
Page 54: Oc Profile Menu
OC PROFILE Menu ▶ Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press Enter to enter the sub-menu. ▶ Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 Name the current overclocking profile. ▶... -
Page 55: Hardware Monitor Menu
HARDWARE MONITOR Menu This menu allows you to adjust the fan speed manually and monitor CPU/ system voltage. Select a temperature curve line (white) to be showed in Fan operating window Select a fan to be configured Select a fan mode for target fan Click to enable the Smart Fan Smart Fan duty... - Page 56 Adjusting fans 1. Selects a fan that you want to adjust and to display the fan duty curve line (yellow) in fan operating windows. 2. Click and drag the duty points to adjust the fan speed. Select a fan to be adjusted Duty points ⚠...
-
Page 57: Amd Raid Configuration
AMD RAID Configuration The following are the RAID levels supported by RAIDXpert2. RAID 0 (Striping) breaks the data into blocks which are written to separate hard drives. Spreading the hard drive I/O load across independent channels greatly improves I/O performance. RAID 1 (Mirroring) provides data redundancy by mirroring data between the hard drives and provides enhanced read performance. -
Page 58: Initializing Disks
Initializing Disks New disks and legacy disks must be initialized before they can be used to create an AMD-RAID array. Initialization writes AMD-RAID configuration information (metadata) to a disk. ⚠ Important ∙ If a disk is part of an AMD-RAID array, the disk cannot be selected for initialization. To initial the disk anyway, delete the AMD-RAID array. -
Page 59: Creating Arrays
Creating Arrays Arrays can be created after the disks are initialized. ⚠ Important For redundant arrays, the Create process is not started until after the operating ∙ system and AMD-RAID OS drivers have been installed and the system has booted to the operating system. -
Page 60: Deleting Arrays
Deleting Arrays ⚠ Important Deleting an array permanently destroys all data that is on the array. This action ∙ cannot be undone and it is very unlikely that the data can be recovered. ∙ Do not delete the first array listed in the Arrays section, if it is the AMD-RAID bootable array. -
Page 61: Installing Raid Driver
2. When prompted, insert the USB flash drive with AMD RAID Drivers and then click Browse. ▪ To make an AMD RAID Drivers USB flash drive. Insert the MSI Driver Disc into the optical drive. Copy all the contents in \\Storage\AMD\ 3. -
Page 62: Troubleshooting
Troubleshooting Lost BIOS password Before sending the motherboard for RMA repair, try to go over troubleshooting ∙ Clear the CMOS, but that will cause guide first to see if your got similar you to lose all customized settings in the symptoms as mentioned below. - Page 63 European Harmonized Standards. disposing of their end-of-life products. The point of contact for regulatory matters is MSI, · Visit the MSI website and locate a nearby distributor MSI-NL Eindhoven 5706 5692 ER Son.
- Page 64 MSI la Unión Europea al final de su periodo de vida. Usted will comply with the product take back requirements...
- Page 65 MSI si adeguerà a tale Direttiva ritirando tutti i prodotti marchiati MSI che sono stati venduti all’interno dell’Unione Europea alla fine del loro ciclo di vita.
- Page 66 Copyright © 2020 All rights reserved. contact your place of purchase or local distributor. The MSI logo used is a registered trademark of Alternatively, please try the following help resources Micro-Star Int’l Co., Ltd. All other marks and names for further guidance.
