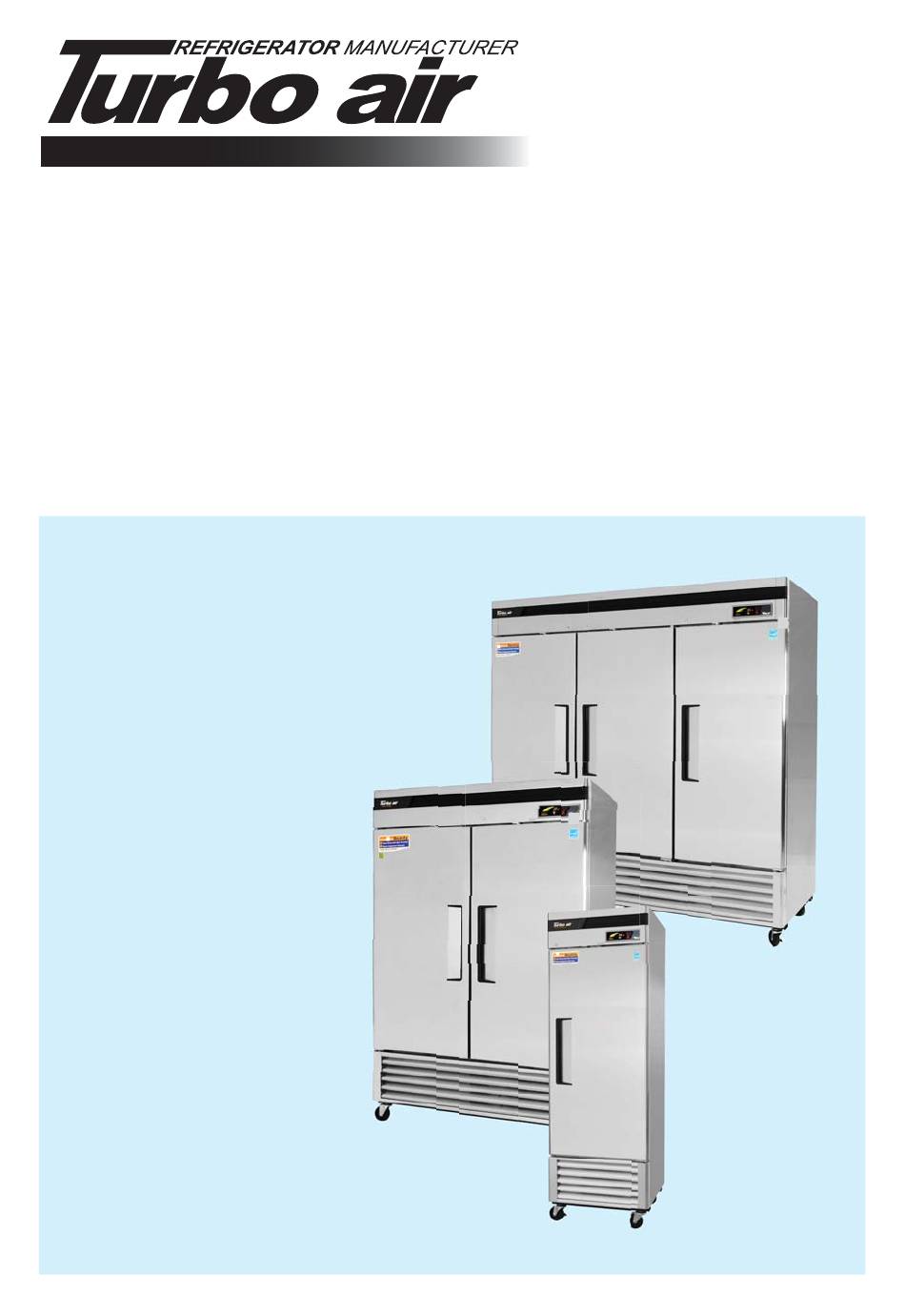

Turbo Air Speeds up the Pace of Innovation
Super Deluxe Series
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment
SOLID DOOR
REFRIGERATORS
TSR-23SD*
TSR-35SD
TSR-49SD
TSR-72SD
SOLID DOOR
FREEZERS
TSF-23SD
TSF-35SD
TSF-49SD
TSF-72SD
Full Stainless Steel Interior and Exterior
www.turboairinc.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air Super Deluxe TSR-23SD Series
Summary of Contents for Turbo Air Super Deluxe TSR-23SD Series
- Page 1 Turbo Air Speeds up the Pace of Innovation Super Deluxe Series Refrigerators & Freezers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment Full Stainless Steel Interior and Exterior SOLID DOOR REFRIGERATORS...
-
Page 2: Table Of Contents
CONTENTS PAGE 1. SPECIFICATIONS ..................2 2. SERIAL NUMBER ..................3. INSTALLATION .................... 3 ................4. CLEANING & CAUTION 5. BASIC OPERATION 5-1. REFRIGERATORS ................5~8 5-2. FREEZERS..................9~12 ................6. TROUBLESHOOTING 7. WARRANTY ..................14~16 SPECIFICATIONS Refrigerators MODEL COMP H.P. V/Hz REFRIGERANT AMPS... -
Page 3: Installation
- Be sure to avoid any partition and object which may stop the air flow - Be sure that air space is allowed to flow the rear of the unit (Turbo Air recommends that the rear of the unit would be no less than 5 inches from the wall) 2. -
Page 4: Cleaning & Caution
CLEANING 1. CLEANING THE INTERIOR AND EXPERIOR - The interior and exterior of the unit can be cleaned using warm water with soap - Don not use an abrasive cleaner becasue it will scratch the stainless steel surface 2. CLEANING THE CONDENSER FINS - To maintain proper refrigeration performace, the Condenser coil must be free of dust, dirt, and grease. -
Page 5: Basic Operation
BASIC OPERATION TSR-23SD* TSR-35SD REFRIGERATORS TSR-49SD TSR-72SD 1. Plug in and turn on the power switch located on the bottom of the top grille right side. The Display panel will be lighted and make a beep sound. The compressor will begin to run. 2. - Page 6 DISPLAY PANEL OF REFRIGERATOR TEMP. SETTING TEMP. CONTROL BUTTON (SEE TO PAGE 7) INNER TEMP. (SEE TO PAGE 8) ˚F TEMPERATURE TEMPERATURE T.C. DOOR TURBO COOLING TURBO COOLING TURBO COOLING BUTTON (SEE TO PAGE 7) FAN RUNNING DOOR OPENING...
- Page 7 TURBO COOLING 1. If you push the T.C. (Turbo Cooling) button, the compressor will run continuously until D-Senser detect 14˚F (-10˚C) to bring down the temperature more quickly. (max.comp.run time = 120 min.) 2. If you push the T.C. button again during Turbo Cooling mode, the compressor will return to the normal operation.
- Page 8 INNER TEMPERATURE DISPLAY 1. It displays the inside temperature. 2. Display range is 14˚F to 69˚F (-10˚C ~ +20˚C). 3. When the inside temperature is lower than 14˚F, the panel will display ʻ ʼ. and, higher than 69˚F, the panel will display ʻ ʼ.
-
Page 9: Freezers
BASIC OPERATION TSF-23SD TSF-35SD FREEZERS TSF-49SD TSF-72SD 1. Plug in and turn on the power switch located on the bottom of the top grille right side. The Display panel will be lighted and make a beep sound. The compressor will begin to run. 2. - Page 10 DISPLAY PANEL OF FREEZER TEMP. SETTING TEMP. CONTROL BUTTON (SEE TO PAGE 11) INNER TEMP. (SEE TO PAGE 12) ˚F TEMPERATURE TEMPERATURE D.F. DOOR MANUAL DEFROST MANUAL DEFROST MANUAL DEFROST BUTTON (SEE TO PAGE 11) FAN RUNNING DOOR OPENING...
- Page 11 MANUAL DEFROST 1. If you push MANUAL DEFROST button for 5 seconds, the Defrost will start. 2. During the Manual Defrost mode, the Up/Down button for the temperature control can not make the compressor cycle ON or OFF. 3. If you want to change the Manual Defrost mode to the normal mode, push MANUAL DEFROST button for 5 seconds.
- Page 12 INNER TEMPERATURE DISPLAY 1. It displays inside temperature. 2. Display range is -50˚F to 50˚F (-45˚C ~ +10˚C). 3. When inside temperature is lower than -50˚F, the panel will display ʻ ʼ. and, higher than +50˚F, the panel will show ʻ ʼ.
-
Page 13: Troubleshooting
TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS Freezer is melting • The controller is set too high to • Turn the temperature dial to a food contain food fresh. warmer position. The unit does not • There is a power connection • Check the power cord and plug in refrigerate at all failure problem. - Page 14 THREE YEAR WARRANTY Turbo Air warrants to the original purchaser of every new Turbo Air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of three (3) year from the date of original installation or 39 months after shipment date from Turbo Air , whichever occurs first.
- Page 15 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
-
Page 16: Warranty
(3) year from the date of original installation or 39 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within three (3) year of original installation or thirty-nine (39) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
