Turbo Air Speeds up the Pace of Innovation

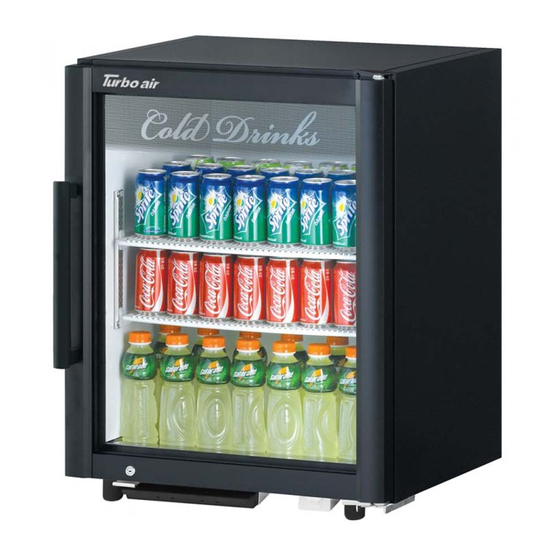

Super Deluxe Series Glass Door Merchandisers
Refrigerators and Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
GLASS DOOR REFRIGERATORS
TGM-5SD*-N#
TGM-7SD*-N#
TGM-10SD*-N#
TGM-12SD*-N#
TGM-15SD*-N#
TGM-20SD*-N#
TGM-23SD*-N#
TGM-23SDH*-N#
TGM-35SD*-N#
TGM-35SDH*-N#
TGM-47SD*-N#
TGM-47SDH*-N#
TGM-72SD*-N#
TGM-72SDH*-N#
GLASS DOOR FREEZERS
TGF-5SD*-N#
TGF-10SD*-N#
TGF-15SD*-N#
TGF-23SD*-N#
TGF-23SDH*-N#
TGF-35SD*-N#
TGF-35SDH*-N#
TGF-47SD*-N#
TGF-47SDH*-N#
TGF-72SD*-N#
TGF-72SDH*-N#
(*) - May or may not have suffix from A to Z to denote cosmetic difference.
(#) - May or may not be followed by a letter indicating refrigerant type.
TGM-5SD_-N#,TGF-5SD_-N#외(영)_미주향.indd 1
2940 Hwy 14 W, Rochester, MN 55901
www.turboairinc.com
2017-12-14 오전 9:41:43
