FAUCET SPECIFICATIONS

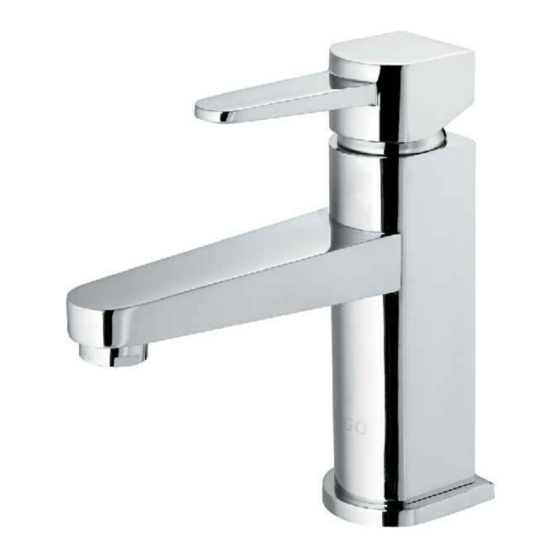

Single Hole Bathroom Faucet
Model VG01030
MODEL VG01030
FEATURES
Solid brass construction
Single hole construction
Ceramic disk cartridge
Single lever faucet
Standard plumbing connections
Finish resist corrosion and tarnishing
PACKING LIST
Faucet Assembly
Brass ring
Rubber washer
Two Metal braided hoses
Nut
DIMENSIONS
MODEL #
FAUCET
HEIGHT
VG01030
7"
SPOUT
HOLE
REACH
DIAMETER
4 1/4"
1 3/8"
4 1/4"
Advertisement
Related Manuals for VIGO VG01030
Summary of Contents for VIGO VG01030
- Page 1 FAUCET SPECIFICATIONS Single Hole Bathroom Faucet Model VG01030 MODEL VG01030 FEATURES Solid brass construction Single hole construction Ceramic disk cartridge Single lever faucet Standard plumbing connections Finish resist corrosion and tarnishing PACKING LIST Faucet Assembly Brass ring Rubber washer Two Metal braided hoses...
- Page 2 6" 4 1/4" 3 3/8" 1 7/8" 2 1/2" VG01030 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"...
- Page 3 Installation must be done by a qualified licensed plumber. Prior to installation please read the instructions thoroughly, confirm that all parts are included and visually inspect the unit for any defects. If you have any questions please contact the Vigo Technical Support Department before proceeding with installation.
-
Page 4: Troubleshooting
PARTS LIST - For any parts needed but not shown, please contact Vigo Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART... - Page 5 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
