- Page 1 Presented By Dallas Ft Worth Austin Houston NicolScales.com 800.225.8181 Contact Us Nicol Scales & Measurement is an ISO Accredited Calibration Company that has provided calibration, repair and sales of all types of weighing and measurement products since 1931.

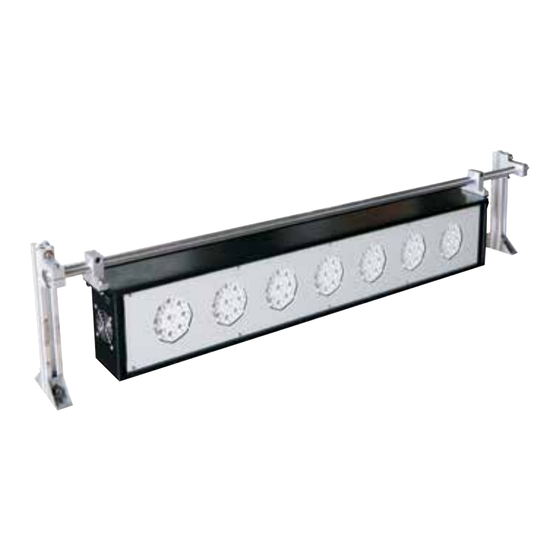

- Page 2 SHIMPO INSTRUMENTS ST-329 LED Stroboscope Array Operation Manual Use in flammable environments is prohibited. Use in this manner may result in fire or explosive. Don’t look directly into the LED light Source. This may result in eye in- jury. Don’t use or store in the following environments. Direct sunshine con- densation, dust or caustic.
- Page 3 INSTALLATION FUNCTION INSTRUCTIONS Mode Selection - To switch between INTERNAL, EXTERNAL and Mounting PARAMETER menu, press and release the MODE key. For details The control box is easily mounted to a magnetic surface with its about Parameter setting mode, please refer to Parameter setting included magnetic bracket.
- Page 4 Flash Duration (Brightness) Settings Stopped Image: The flash duration, RATIO key, can be set within the range of 0.1°- 2.5° over a 360° period with a resolution of 0.1°. Example True Multiple When the flash duration is lengthened, the brightness of the flash Flash Rate of Number of Rotational Speed...
- Page 5 External Trigger Mode External Trigger Mode: LCD Display Information External trigger mode will allow the flash rate of the ST-329 stro- The frequency of the external signal is measured each period, boscope to be controlled by an external signal, such that the flash while the latest external frequency measurement is updated ev- rate will automatically increase or decrease when the signal is al- ery 50 ms.
- Page 6 If the period of the external input is less than the setting of the Parameter Settings delay time, the delay time is ignored and the ST-329 flashes as if To enter parameter setting menu, press “MODE” until the LCD dis- the delayed time equals 0.
- Page 7 Dimension Chart & Light Arrangement Back Light Setting The LCD display of the ST-329 stroboscope has a backlight that # LED Model Length # LED’s can be turned on or off in the parameter settings. To adjust the Groups backlight setting, enter parameter mode and use the “SET” key to ST-329-0 9.25”...
