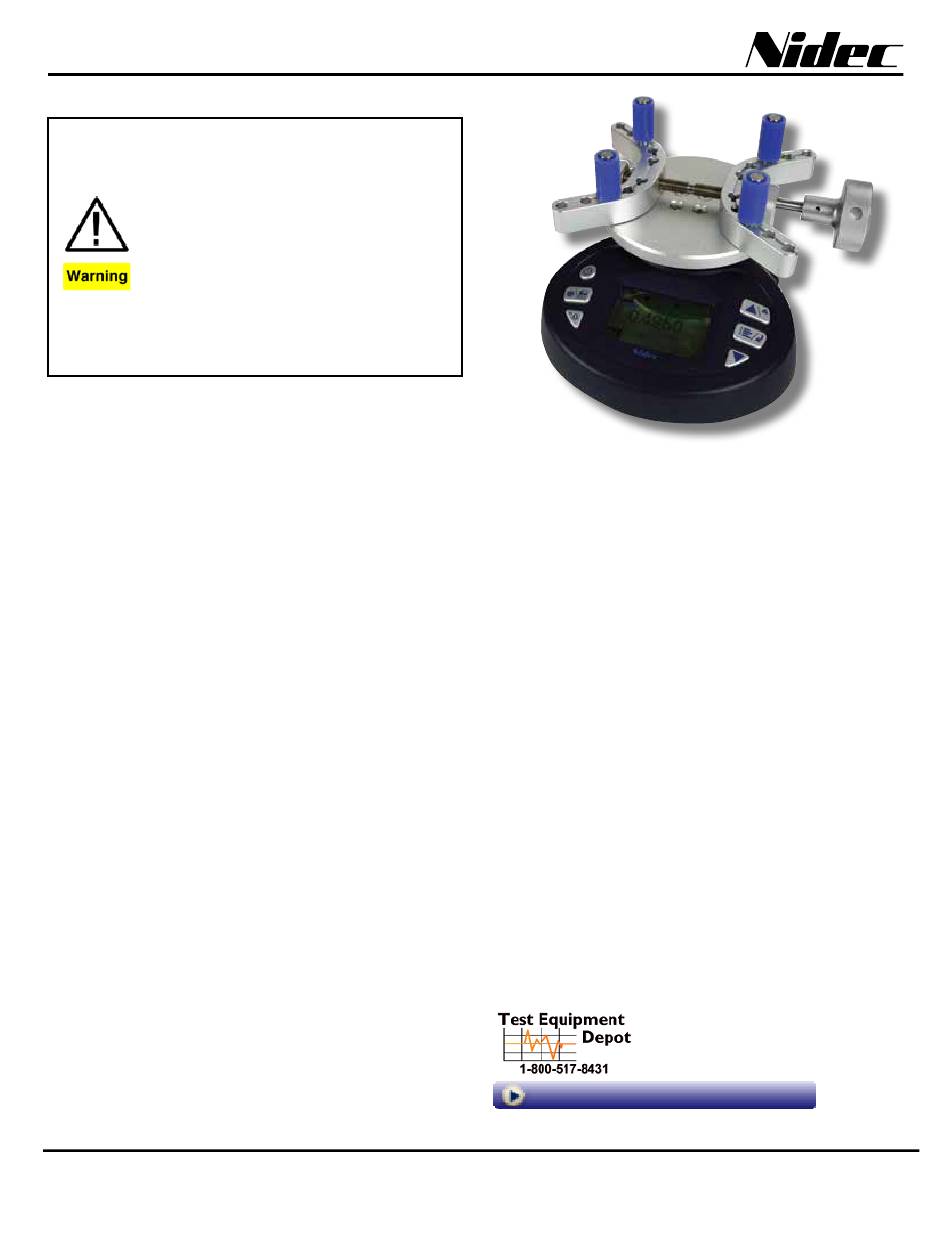

Nidec TNC Series Operation Manual

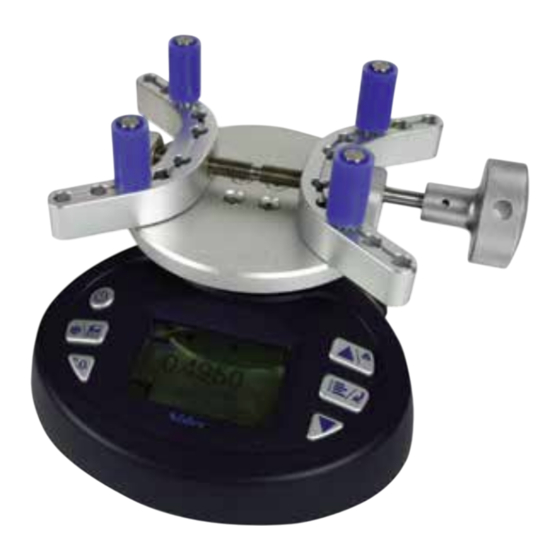

TNC Series Torque Cap Tester
Operation Manual
Operators should wear protection such as a mask and gloves in case
pieces or components break away from the unit under test.
Whether the unit is ON or OFF, DO NOT exceed the capacity of the
sensor. NEVER exceed 120% of the rated capacity, or the torque sensor
will be damaged. At 110% of the rated capacity the display will flash
a warning.
Measure in line torque only. DO NOT attempt to measure forces at an
angle to the sensor – damage to sensor may result.
Do not attempt to repair or alter this instrument. Warranty will be voided
and damage to the unit may result.
Use and store within the stated temperature and humidity ranges, or
damage and failure may result.
Ensure during testing unit is properly mounted & secured to stable sur-
face. Mount display with the two integral 8.5 mm mounting holes only.
If not using this instrument for extended periods of time, remove the
batteries to prevent potential battery leakage from causing product
damage.
The TNC Digital Torque Cap Tester is a simple operation test in-
strument for quickly measuring Open and Close torque values
up to 14.8 ft-lbs (20 N-m). The TNC meter is used in medical,
pharmaceutical, industrial quality control, R&D and countless oth-
er torque applications.
The TNC's provide long operation life and power flexibility with the
ability to work from the internal rechargeable battery or included
AC adapter. The TNC's have six modes of operation: Track for live
readings, Peak which records the highest level over a test, First
Peak which records a reading after a programmed decrease, Auto
Peak which resets after a period of time, Auto First Peak which
resets the first peak after a period of time, Double Peak which
provides two separate peak readings from programmed decreas-
es. Preset operation with programmable tolerance thresholds for
quick pass fail test is available in all modes.
The analog bar graph on the backlit, reversible LCD aids users
by providing the resultant torque's current position compared to
the full scale range along with the direction of the force. Pass/fail
icons produce live test feedback allowing instant determination of
the results.
Every tester comes standard with USB and RS-232 outputs. The
TNC's software enables the uploading of data and the additional
statistical analysis with its auto-calculation of the selected values.
These excellent features make the TNC Torque Cap Testers a
valuable and versatile addition to the production, R & D and qual-
ity control departments.
SEALS USA, Inc.
Instruments Division
Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn, MA 01801
SPECIFICATIONS
Measuring Range: See Capacity & Resolution chart on last page
Accuracy: ± 0.3% of reading over 5 to 100% capacity
Test Sample Diameter Range: 0.77" – 7.48" (19.5 – 190 mm)
Units of Measure: N-cm, N-m, in-lb, ft-lb, kg-cm (depending on
range)
Measure Modes: Track, Preset, Peak, First Peak, Auto Peak,
Auto First Peak, Double Peak
Overload Protection: 120% of Full Scale
Sampling Rate: 2000 Hz
Display: 160* 128 Dot matrix backlit LCD
Display Update Rate: 10 times/sec
Resolution: See Capacity & Resolution chart on last page
Memory: 1000 data points
Set Point: Programmable High and Low Limits in Preset mode
Output: USB, serial port RS-232, High and low limit NPN
Battery Indication: Battery icon flashes when low
Battery Life: Approx. 25 Hours continuous on full charge
Charger/Adapter: Universal USB charger, input 110 - 240 V ac
50/60 Hz
Power: 3.6 V dc 1600 mAH Ni-MH battery pack
Operating Temperature: 14 to 104ºF (-10 to 40ºC)
Humidity Limit: 20 - 80% RH
Dimensions: 7.75 x 7.87 x 5.59" (197 x 200 x 142 mm)
Product Weight: 5.5 lb (2.5 kg)
Package Weight: 7.7 lb (3.5 kg)
Warranty: 1 year
Certification: CE
Included Accessories: 4 torque pins, USB cable, charger adapt-
er, 2 mounting bolts, table-top rubber pads, cal. cert.
Optional Accessories: RS-232 cable, printer
