Summary of Contents for Nidec Shimpo ST-320BL
- Page 1 Presented By Dallas Ft Worth Austin Houston NicolScales.com 800.225.8181 Contact Us Nicol Scales & Measurement is an ISO Accredited Calibration Company that has provided calibration, repair and sales of all types of weighing and measurement products since 1931.
-
Page 2: Specifications

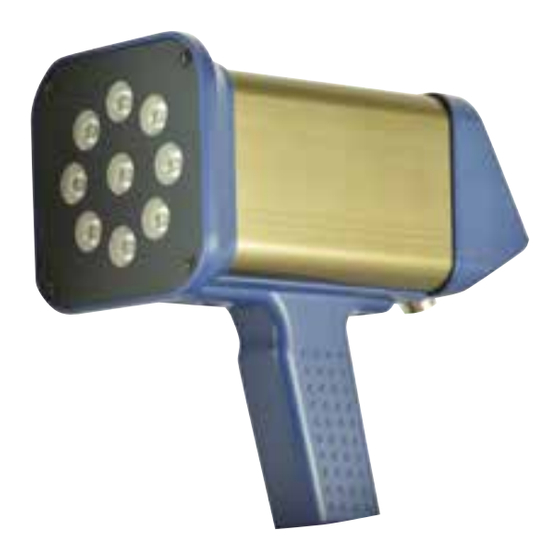

SHIMPO INSTRUMENTS ST-320BL LED Stroboscope Array Operation Manual Use in flammable environments is prohibited. Use in this manner may result in fire or explosive. Don’t look directly into the LED light Source. This may result in eye in- jury. Don’t use or store in the following environments. Direct sunshine con- densation, dust or caustic. -
Page 3: Lcd Display
LCD Display FUNCTION INSTRUCTIONS Mode Selection - To switch between INTERNAL, EXTERNAL and Main PARAMETER menu, press and release the MODE key. For details Data about Parameter setting mode, please refer to Parameter setting Display menu section. Parameter Icons Units Data Display Main Data Display •Flash rate value will be displayed in internal flashing or Exter-... - Page 4 Flash Duration (Brightness) Settings Stopped Image: The flash duration, RATIO key, can be set within the range of 0.1°- 2.5° over a 360° period with a resolution of 0.1°. Example True Multiple When the flash duration is lengthened, the brightness of the flash Flash Rate of Number of Rotational Speed...
- Page 5 External Trigger Mode External Trigger Mode: LCD Display Information External trigger mode will allow the flash rate of the ST-320BL The frequency of the external signal is measured each period, stroboscope to be controlled by an external signal, such that the while the latest external frequency measurement is updated ev- flash rate will automatically increase or decrease when the signal ery 50 ms.
- Page 6 If the period of the external input is less than the setting of the Parameter Settings delay time, the delay time is ignored and the ST-320BL flashes as To enter parameter setting menu, press “MODE” until the LCD dis- if the delayed time equals 0. plays “P”.
- Page 7 Back Light Setting Mounting The LCD display of the ST-320BL stroboscope has a backlight To mount permanently, remove the two screws holding the trigger that can be turned on or off in the parameter settings. Turning off handle. The threaded adapter will now be visible. Discard screws the backlight will conserve battery power.
