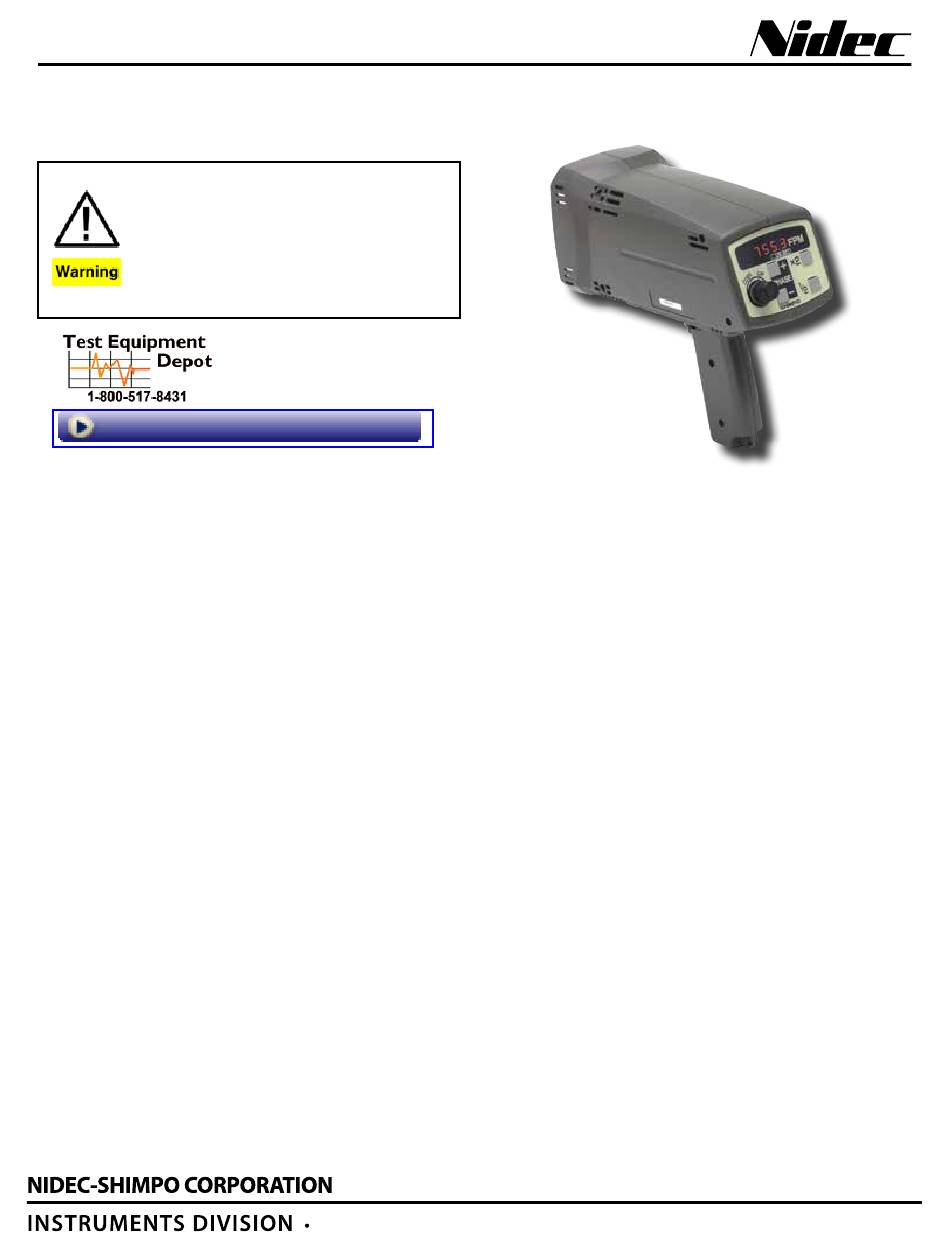

DT-725 Digital Stroboscope/Tachometer
Operation Manual
Do not operate or store instrument in the following places:
• Explosive areas
• Near water, oil, dust or chemicals
• Areas where temperature is above 104°F (40°C).
Do not look at the emitted light for long periods of time; it can be harmful
to the eyes.
Do not disassemble or repair unit while in operation.
Visit us at www.TestEquipmentDepot.com

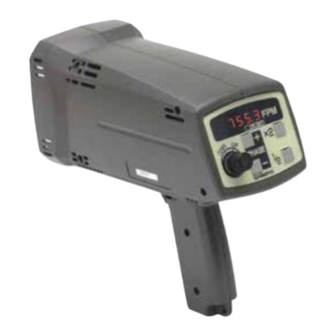

The DT-725 portable, light weight stroboscope with rechargeable
battery possess many of the same features as the famous DT-
300 Series Stroboscopes, but are lighter in weight. Constructed of
strengthened high impact plastic, these rugged units are excep-
tionally reliable and withstand the same harsh conditions as more
expensive units. Employing its unique phase shifting feature, the DT-
725 "freezes" rotating or reciprocating machinery for visual inspec-
tion of covered gear teeth, shafts, oil/fuel/ink injector patterns, and
print media; all without stopping production.
These features make the DT-725 ideal for quality inspection and pre-
ventive maintenance of automated motion equipment. Units can be
ordered separately or as a convenient kit.
To mount the strobe on a tripod (or any other mounting surface), use
screw 1/4 - 20unc, length 8mm or shorter, for the tripod screw hole
on the bottom.
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
SPECIFICATIONS
Flashing Range: 40.0 - 12,500 fpm (flashes per minute)
Accuracy: ±0.02 % of reading
Resolution: 0.1 fpm: 40.0 - 4,999.9 fpm / 0.2 fpm: 5,000 - 7,999.9
fpm / 0.5 fpm: 8,000.0 - 9,999.5 fpm / 1 fpm: 10,000 - 12,5000 fpm
Phase Shift: Use +/- push buttons (360° in 6 seconds)
Display Update Time: Ext. mode : varies with flashing rate
Output Signal: NPN open collector (24 VDC max., 50 mA), 150
μsec typical
Rate Multiplier/Divider: Multiply by 2, divide by 2
External Trigger Input Signal:
a) 12 - 24 VDC thru a 3-wire NPN output sensor (requires external
power
b) 12 VDC thru a 2-wire proximity sensor (leakage current 1 mA
max., load current 8 mA min.)
c) Switch or relay contact
Display: 5 digits, 0.3" (8 mm) high, LED
Flashtube Power/Life: Xenon, 10 W max. (100 million flashes)
Flash Duration: 10 - 15 μsec
Low Battery Indicator: Flashing LED
Battery Life: 1 - 2 hours depending on flash rate
Power Requirement: 115 VAC or 220 VAC ±10 % 60/50 Hz /
Internal battery pack
Operating Temperature: 32 - 104°F ( 0 - 40°C )
Product Weight: 2.75 lbs (1.25 kg)
Package Weight: 4.45 lbs (2.02 kg)
Dimensions: 7.28" L x 4.72" W x 4.72" H (185 mm x 120 mm x
120 mm)
Warranty: 2 year
Included Accessories: AC adapter
