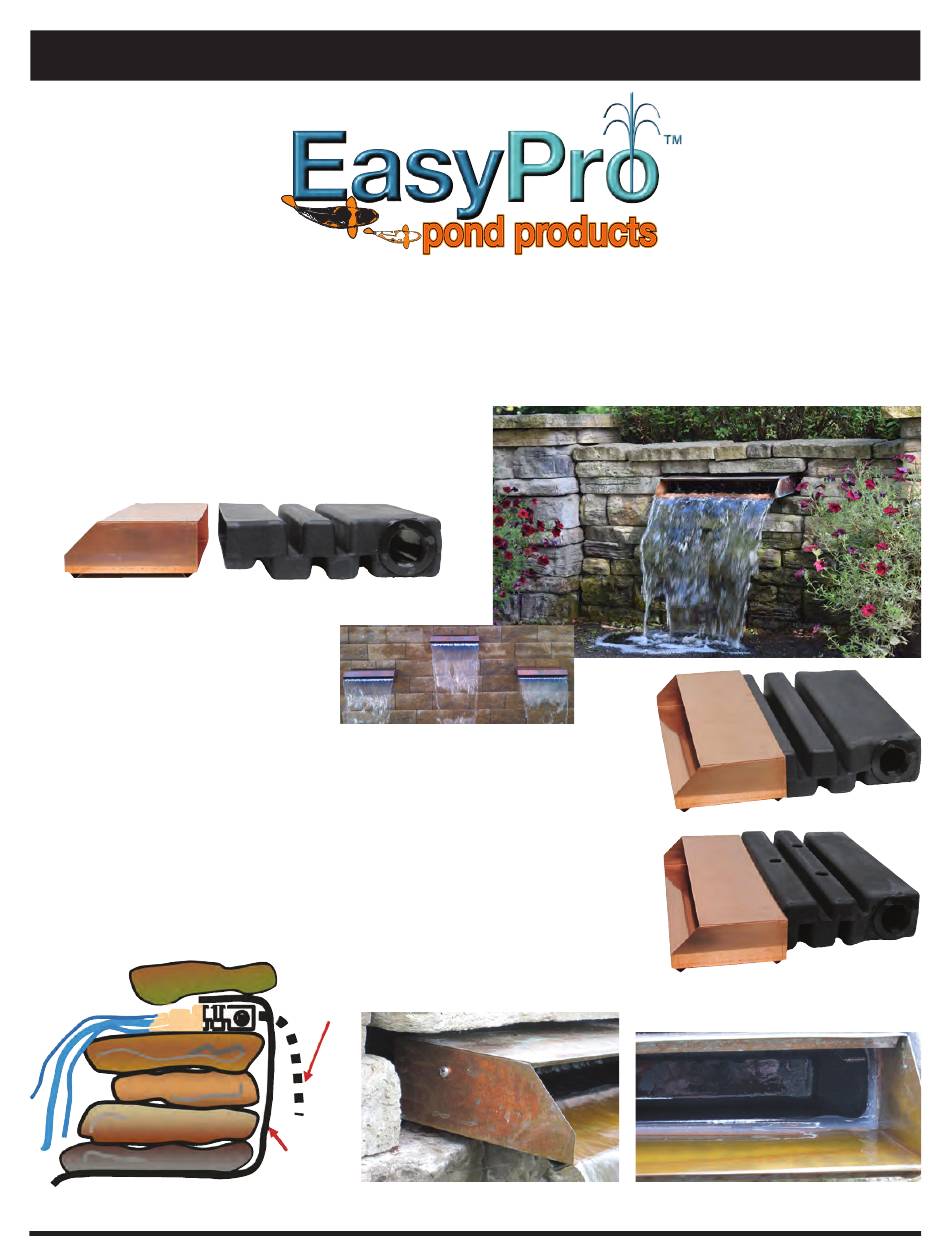

EasyPro UWD16C Instructions For Assembly

UWD16C • UWD16CN • UWD23C • UWD23CN

Copper Spillway Attachment

Thank you for purchasing this copper spillway attachment.
This attachment is for the EasyPro Universal Waterfall
Diffuser, sold separately, and makes an attractive addition
for any block wall that needs a little "splash!"
Copper Attachment
1. Copper attachment slips over the
front of the waterfall diffuser.
Correct - Figure 1, Incorrect - Figure 2
2. Make sure liner goes behind all
block/stones and up and over the top
of the waterfall diffuser. Figure 3
3. If a stainless screw is necessary to secure copper
attachment, make sure screw is above waterline.
Figure 4
4. After diffuser and copper attachment are assembled
and in place in the wall, place a bead of silicone inside
the copper attachment where it meets the waterfall
diffuser. Figure 5
Figure 3 - Liner Placement
Instructions for Assembly
Diffuser (Sold Separately)
Supply
Line
Liner
Figure 4 - Screw Placement
UWD23CN
Figure 1
Correct Assembly
Figure 2
Incorrect Assembly
Figure 5 - Silicone Application
