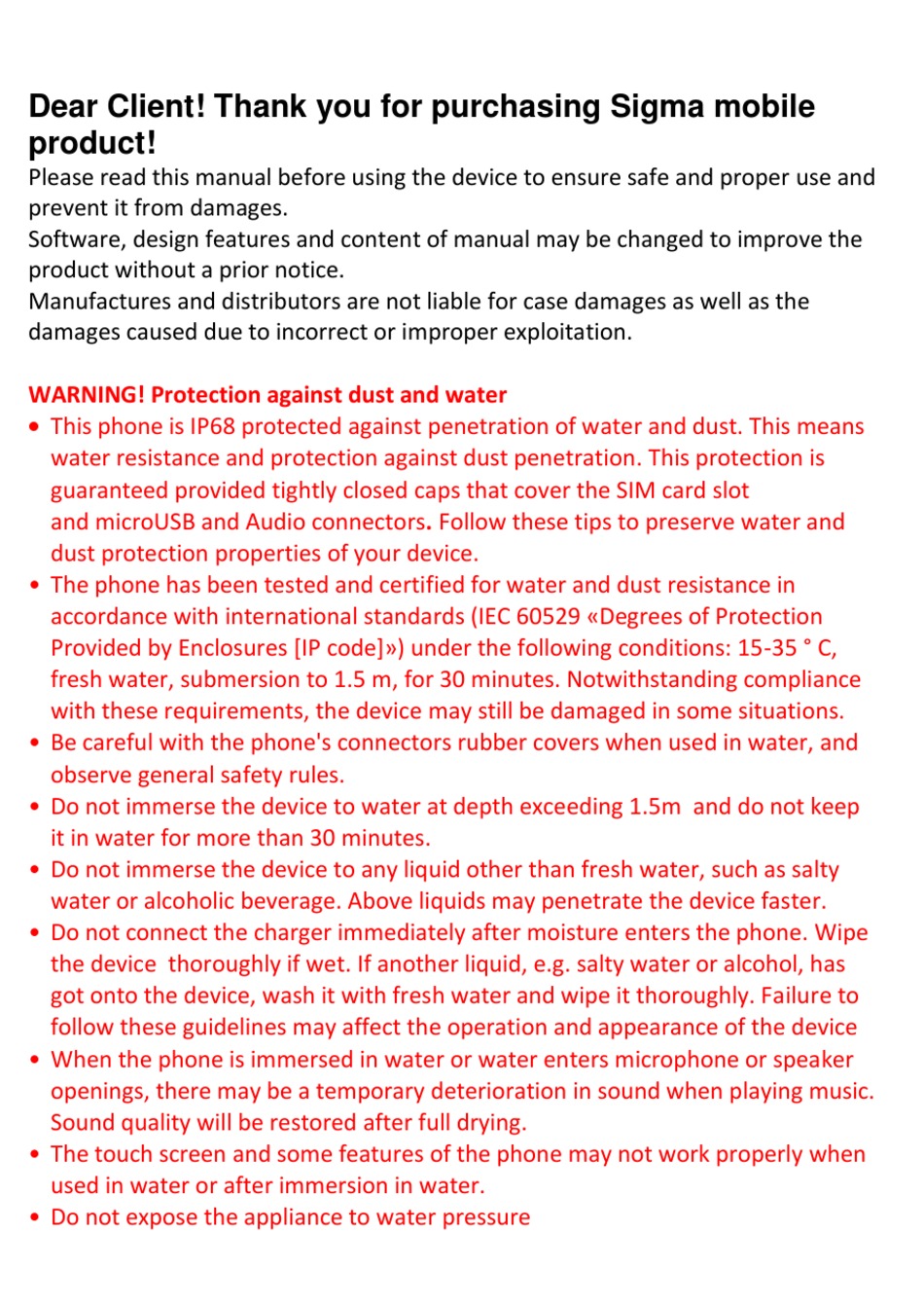

Dear Client! Thank you for purchasing Sigma mobile
product!
Please read this manual before using the device to ensure safe and proper use and
prevent it from damages.
Software, design features and content of manual may be changed to improve the
product without a prior notice.
Manufactures and distributors are not liable for case damages as well as the
damages caused due to incorrect or improper exploitation.
WARNING! Protection against dust and water
 This phone is IP68 protected against penetration of water and dust. This means
water resistance and protection against dust penetration. This protection is
guaranteed provided tightly closed caps that cover the SIM card slot
and microUSB and Audio connectors. Follow these tips to preserve water and
dust protection properties of your device.
• The phone has been tested and certified for water and dust resistance in
accordance with international standards (IEC 60529 «Degrees of Protection
Provided by Enclosures [IP code]») under the following conditions: 15-35 ° C,
fresh water, submersion to 1.5 m, for 30 minutes. Notwithstanding compliance
with these requirements, the device may still be damaged in some situations.
• Be careful with the phone's connectors rubber covers when used in water, and
observe general safety rules.
• Do not immerse the device to water at depth exceeding 1.5m and do not keep
it in water for more than 30 minutes.
• Do not immerse the device to any liquid other than fresh water, such as salty
water or alcoholic beverage. Above liquids may penetrate the device faster.
• Do not connect the charger immediately after moisture enters the phone. Wipe
the device thoroughly if wet. If another liquid, e.g. salty water or alcohol, has
got onto the device, wash it with fresh water and wipe it thoroughly. Failure to
follow these guidelines may affect the operation and appearance of the device
• When the phone is immersed in water or water enters microphone or speaker
openings, there may be a temporary deterioration in sound when playing music.
Sound quality will be restored after full drying.
• The touch screen and some features of the phone may not work properly when
used in water or after immersion in water.
• Do not expose the appliance to water pressure

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-treme PQ36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sigma mobile X-treme PQ36

Summary of Contents for Sigma mobile X-treme PQ36

  • Page 1 Dear Client! Thank you for purchasing Sigma mobile product! Please read this manual before using the device to ensure safe and proper use and prevent it from damages. Software, design features and content of manual may be changed to improve the product without a prior notice.
  • Page 2  If the moisture in your phone is not due to factory defects and mechanical damage or loose plugs closed - warranty of the device will not be done. Package Contents:  Smartphone Sigma mobile X-treme PQ36  Network charger  USB cable ...

  • Page 3: Table Of Contents

    WI-FI 802.11 B/G/N Connection Interface to the wireless network The ability to determine the location and to use navigation programs. Battery 5000 мАh., built-in * The frequency of the processor program may be limited to lower values. ** The actual memory size may be less due to the pre-installed operating system and applications.

  • Page 4: Safety And Security

    Messaging ......................25 Programs ....................... 26 Internet browser ....................26 Email ........................ 26 Camera ......................27 Google programs ....................29 Troubleshooting ....................30 SAFETY AND SECURITY  Do not disassemble device and do not repair it by yourself.  Permitted outside temperature operating mode: -20 to 50*C. ...

  • Page 5: Start

     Using the headset, do not listen to music at a high volume for a long time – reversely, it may lead to the hearing problems.  Stop using the headset or reduce the volume if you hear the ringing in ears. START Turn on: Press and hold a few seconds power button.

  • Page 6: Buttons And Ports

    Buttons and ports nanoSIM/microSD slot Volume Hot key Power on/off Audio 3.5mm port Flash / Torch Receiver Main camera Front camera Speaker microUSB port Standby mode In operation mode the short pressing on the power button leads the device to the standby mode, the screen goes dark.

  • Page 7: Button To Additional Menu

    The repeated short pressing on the power button leads the device out from the standby mode; the lock screen is showed on the display. To unlock the screen, you may swipe from the bottom in any part of the screen. It is possible to protect yourself from unauthorized access in several ways: - Locking by the graphical key;...

  • Page 8: Charging The Battery

    Charging the battery Charge the battery before using it for the first time. Use only Sigma mobile approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.  When the battery power is low, the battery icon appears as empty.
  • Page 9  If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid losing power during a data transfer, always use these apps after fully charging the battery. Charging steps Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable into the multipurpose jack.

  • Page 10: Installing A Sim-Card And Memory Card

    SIM card slot, contact the authorized Sigma mobile service center for safe removal. Be careful not to lose your SIM card and do not let others use it. Sigma mobile is not liable for any damage or inconvenience caused by the loss or theft of the cards.

  • Page 11: Main Techniques

    MAIN TECHNIQUES Touchscreen usage It is recommended to use fingers when you use the touchscreen. Attention! Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction. To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.
  • Page 12 Notifications When you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notification panel and view the details. To open the notification panel, drag the status bar downwards.
  • Page 13 On the Home screen, tap and hold an app, and then drag it over another app. Drop the app when a folder frame appears around the apps. A new folder containing the selected apps will be created. To move apps from a folder to the Home screen, tap the folder, and then drag an app to the Home screen.

  • Page 14: Account Settings

    Account settings You need Google account to use Google programs such as Play Store, Gmail and ext. Create Google account for using all phone possibilities. Adding accounts To set up Google account follow the instructions, which are displayed when the Google is opened without signing in.

  • Page 15: Settings

    Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it. Set a backup unlock PIN to unlock the screen when you forget the pattern. Setting a PIN On the Applications screen, tap Settings → Security & Location→ Screen Lock → PIN.

  • Page 16: Network & Internet

    Network & Internet WI-FI In the WI-FI section you will see a WI-FI switch, a list of available networks, the latest line of which is "Add Network" - for manually adding the WI-FI network and a Saved network – list of network has been saved.

  • Page 17: Connected Devices

    Mobile data switch: Set the device to use data connections on any mobile network. App data usage: accounting of usage of data services in all mobile networks Data warning & limit: Set a limit for the mobile data usage. Data saver: Data saver prevents some apps from sending or receiving data an the background Wi-Fi usage: Set the device to show your data usage via Wi-Fi.

  • Page 18: Apps & Notifications

    Previously connected devices List of Bluetooth devices that were already connected to the smartphone. Connection preferences Bluetooth Enable Bluetooth for short distance sharing. Cast Turn on the wireless screen and search for devices to connect Enable / disable and configure NFC data transfer modes: data and file transfer etc. Printing Setting up the print service Received files...

  • Page 19: Battery

    App permissions View application permissions. Permissions are grouped by type of use. There is the ability to manage permissions: enable / disable Advanced Installing default apps to use in certain situations. Configuring Special app Access to System Processes (battery optimization, modify system settings and so on). Battery In this menu you can see the battery usage after the last full charge, enable / disable power saving mode, enable battery percentage display, and more.

  • Page 20: Accounts

    NFC connections, in trusted locations when you hold it, or when it recognizes your voice Privacy Location The setting changing is for applying to the location information.  Mode: collection of information about the location mode. Last requests: viewing programs that use information about location and its battery usage.

  • Page 21: Digital Wellbeing And Parental Controls

    Digital Wellbeing and parental controls A system application that allows you to get information about using the device, such as how often it is unlocked phone, or how long each app works. Settings lock on sleep, set timers for applications (at app timer expiration will pause app work end of the day).
  • Page 22 Date and time Access and alter the following settings to control how the device displays the time and date. If the battery remains fully discharged or removed from the device, the time and date is reset.  Automatic date and time: Automatically update the time and date when moving across time zones.

  • Page 23: Connection

    CONNECTION Phone Use this program for making class or answering on them. Touch Phone on the App screen. Making a call  To make a call you may use one of the following ways:  PHONE: enter the number by the keyboard, and then tap ...

  • Page 24: Contacts

    Receiving calls Calls respond When a call comes in, swipe up to answer and swipe down to reject a call. When the waiting mode is on, it is possible to answer another receiving call. If you answer on the second call, the first one is placed on standby mode.

  • Page 25: Messaging

    to select where to save the contact and enter contact information. Having done the entering, tap Save to save changes. Contact editing Choose contact for editing and then tap Contact removing To remove the contact, tap and choose Delete. To set speed dial number Touch contact, tap , icon is changed to , the contact appears on the panel...

  • Page 26: Programs

     MMS Settings  SIM card messages  Notification settings  General Settings PROGRAMS Internet browser Browse the Internet to search for information and bookmark your favorite webpages to access them conveniently.  Tap Chrome on the Apps screen.  Tap the address field. ...

  • Page 27: Camera

    Sending emails  Tap to compose an email.  Add recipients and enter an email text. To add files to the e-mail, tap  Tap to send the email. Reading emails If synchronization is turned on, new emails will be automatically retrieved. To get them manually, swipe down the screen.
  • Page 28 Taking photos or recording videos  Set the shooting mode: Photo, Video.  Tap the image on the preview screen where the camera should focus.  Spread two fingers apart on the screen to zoom in, and pinch to zoom out. ...

  • Page 29: Google Programs

    Note! Camera is turned off automatically, when it is not used. Make sure that the lens is clean. Otherwise, the device may not work properly in some modes that use a high resolution. The front camera features a wide- angle lens. Minor distortion may occur in wide-angle photos and does not indicate device performance problems.

  • Page 30: Troubleshooting

    Search quickly for items on the Internet or your device. TROUBLESHOOTING Before contacting a Sigma Mobile Service Centre, please attempt the following solutions. Some situations may not apply to your device. When you turn on your device or while you are using the device, it prompts you to enter one of the following codes: ...
  • Page 31  If the touchscreen is scratched or damaged, visit a Sigma mobile Service Centre. Your device does not react on pressing the keys or encounters a fatal error Try the following solutions. If the problem is still not resolved, contact a Sigma mobile Service Centre.
  • Page 32  Charge the battery.  Free some memory by transferring files to a computer or deleting files from your device.  Restart your device. If you still have troubles with the camera app, contact Sigma mobile service Centre. Photo quality is poorer than the preview ...
