Summary of Contents for Sigma mobile X-treme PQ17

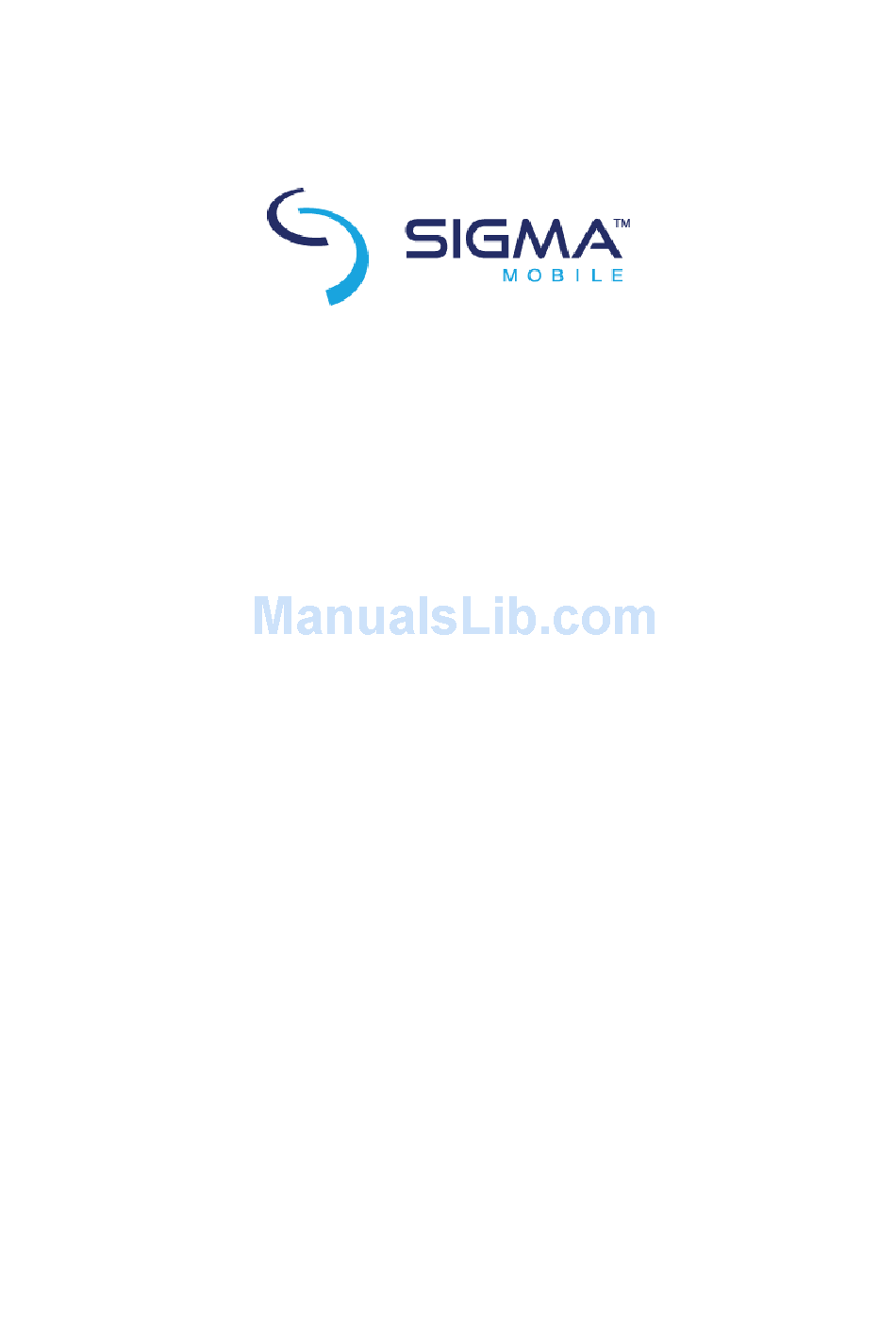

- Page 1 Smartpone X-treme PQ17 User manual...

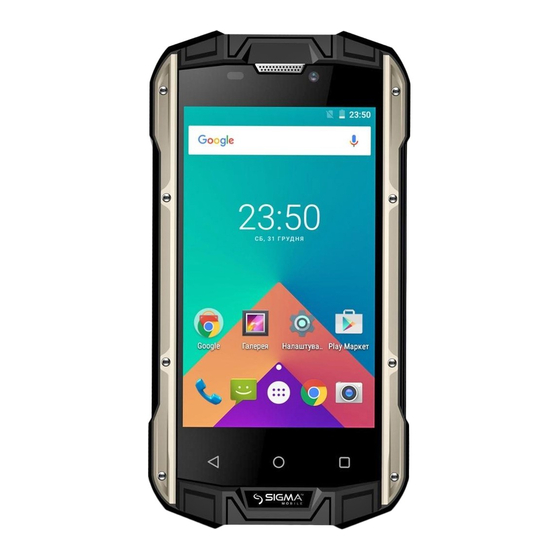

- Page 2 Manufactures and distributors are not liable for case damages as well as the damages caused due to incorrect or improper exploitation. Package Contents: Smartphone Sigma mobile X-treme PQ17 Network charger USB-cable Headset ...
-
Page 3: Table Of Contents
WI-FI 802.11 B/G/N Connection Interface to the wireless network The ability to determine the location and to use navigation programs. Battery 2500 мАh., removable * The frequency of the processor program may be limited to lower values. ** The actual memory size may be less due to the pre-installed operating system and applications. -
Page 4: Safety And Security
Personal ....................19 System ....................21 CONNECTION ................... 22 Phone ....................22 Contacts ....................23 Message ....................24 Programs ....................26 Internet ....................26 Email ....................26 Camera ....................27 Gallery ....................29 Google programs ................. 29 Troubleshooting ..................30 Safety and security ... -
Page 5: Start
Use only accessories recommended by the manufacturer. To avoid of getting heavy metals, acids, lye in water or soil, causing significant damage to the environment, utilize used battery according to the law. The legal liability arises in case of infraction about the utilization norms. ... -
Page 6: Buttons And Ports
Buttons and ports Power Plug of the microUSB Volume +/- Main camera Front camera Flash Plug of the headset Battery cover... -
Page 7: Standby Mode
Standby mode In operation mode the short pressing on the power button leads the device to the standby mode, the screen goes dark. The repeated short pressing on the power button leads the device out from the standby mode; the lock screen is showed on the display. To unlock the screen, you may swipe from the bottom in any part of the screen. - Page 8 Signal strength Roaming (outside of normal service area) GPRS network connected EDGE network connected UMTS network connected HSDPA network connected HSPA+ network connected Wi-Fi connected Bluetooth feature activated GPS activated Call in progress Missed call Synced with the web New text or multimedia message Alarm activated Mute mode activated Vibration mode activated...
-
Page 9: Charging The Battery
Charging the battery Charge the battery before using it for the first time. Use only Sigma mobile approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. When the battery power is low, the battery icon appears as empty. -
Page 10: Installing A Sim-Card And Sd Card
SIM-card, take the device to service center Sigma mobile for its safe removal. Be careful not to lose the SIM-card and do not let others use it. Sigma mobile is not liable for any damages or inconvenience caused by lost or stolen cards. -
Page 11: Main Techniques
Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it. Use caution to insert the memory card right-side up. ... -
Page 12: Screen Turning
Swipe to the left or right on the Home screen or the Apps screen to view other panels. You may swipe upwards or downwards to scroll through a webpage or a list of items such as contacts. Spreading and pinching Spread two fingers apart on a webpage, map, or image to zoom in a part. -
Page 13: Home Screen
Adjust the screen brightness Home screen Home screen is the starting point for accessing all of the device’s features. It displays widgets, shortcuts to apps, and more. To view other panels, swipe to the left or right. Objects managing Moving items Tap and hold an item on the Home screen, and then drag it to a new location. -
Page 14: Account Settings
In order to delete the panel, delete first all of the objects of its panel. And the panel will be removed automatically. Background settings Setting pictures and photos, saved on the device, as a background for home screen. 1.Press and hold empty space on the home screen and then press Wallpapers. 2. -
Page 15: Files Transferring
Removing accounts On the program menu press Settings → Accounts, choose the account that should be removed then press → Remove account. Files transferring Transferring of the audio, video, images and other file types from the device to computer and reversely. Connecting with Windows media player Make sure that Windows media player is installed on your computer. -
Page 16: Settings
On the Applications screen, tap Settings → Security → Lock screen → Password. Enter at least four characters including numbers and symbols, and then enter the password again to verify it. Settings Use this application to configure the device, set application options, and add accounts. -
Page 17: Sim Cards
Bluetooth Use Bluetooth to exchange data or media files with other Bluetooth-enabled devices. To use other options, press SIM cards Enable / disable SIM cards, configure the card by default for: Getting mobile data Calls Message Networks Network settings: ... -
Page 18: Device
Mobile hotspot: Use the portable Mobile hotspot to share the device’s mobile network connection with computers or other devices through the Wi-Fi network. USB tethering: Use USB tethering to share the device’s mobile network connection with a computer via USB. When connected to a computer, the device is used as a wireless modem for the computer. -
Page 19: Personal
Review and files configure: tunes and its volume for different kinds of notifications, vibration on/off, key sound and ext. Storage & USB The memory displaying installed in the device: total amount and free space. Battery Battery usage is showed in this menu, power saving mode on/off. Apps There is program list installed in the device. -
Page 20: Language And Input
To encrypt device: set a password to encrypt data stored on the device. Password must be entered each time when activate the device. Charge the battery before activate this option, as data encryption takes time more than an hour. ... -
Page 21: System
Google voice typing There is changing of the voice command settings. Languages: language list for texting. To block offensive words: prohibition against recognizing by the device abusive words entered by voice data. Offline speech recognition: downloading and installation of the voice data for voice input offline. -
Page 22: Connection
Scheduled power on & off Time settings for scheduled shutdowns and turns Accessibility Availability services – special functions, designed for users with certain disabilities. Use the settings and change it to improve the availability and usability of the device. Printing Turn On / Off settings and print with network printers. -
Page 23: Contacts
Contacts searching Enter the name, contacts number or email to find a proper number in the list. The forecasted contacts are displayed, while entering symbols. Choose one of them. Touch to choose additional commands: To view calls Contacts : import and export ... -
Page 24: Message
New contact to select where to save the contact and enter contact information. Having done the entering, tap , changes are saved automatically. Contact editing Choose contact for editing and then tap Contact removing To remove the contact, tap and choose Delete. To set speed dial number Touch contact, tap , icon is changed to... -
Page 25: Viewing Messages
Sending Attention! For sending messages in the roaming, it may be paid additional fee. Tap Message on the screen. Tap to create new message. To add recipients, tap and enter the text. Tap to send message. To create message, tap for additional settings: ... -
Page 26: Programs
Programs Internet Browse the Internet to search for information and bookmark your favorite webpages to access them conveniently. Tap Internet on the Apps screen. Tap the address field. Enter the web address or a keyword, and then tap Go. ... -
Page 27: Camera
enable email syncing, tap → Settings → your account name, and then tap the Sync account switch to activate it. Camera Take photos and record videos using various modes and settings. Basic shooting You can take photos or record videos. View your photos and videos in Gallery. Tap Camera on the Apps screen. - Page 28 Taking photos or recording videos Set the shooting mode: Photo, Video, Panorama, etc. Tap the image on the preview screen where the camera should focus. Spread two fingers apart on the screen to zoom in, and pinch to zoom out. ...
-
Page 29: Gallery
Gallery Viewing photos and videos saved on device and managing it. To view photos and videos: Tap Gallery on the Apps screen. Choose the album. Choose the image and video. On the video draft the sign is displayed . -
Page 30: Troubleshooting
Setting some apps that Google provided. Troubleshooting Before contacting a Sigma Mobile Service Centre, please attempt the following solutions. Some situations may not apply to your device. When you turn on your device or while you are using the device, it prompts you to enter one of the following codes: ... - Page 31 If the touchscreen is scratched or damaged, visit a Sigma mobile Service Centre. Your device does not react on pressing the keys or encounters a fatal error Try the following solutions. If the problem is still not resolved, contact a Sigma mobile Service Centre.
- Page 32 Charge the battery. Free some memory by transferring files to a computer or deleting files from your device. Restart your device. If you still have troubles with the camera app, contact Sigma mobile service Centre. Photo quality is poorer than the preview ...
