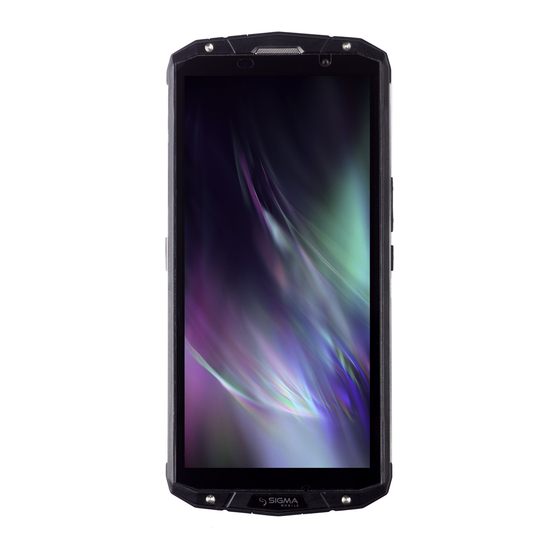

Smartphone X-treme PQ54
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-treme PQ54 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sigma mobile X-treme PQ54

  • Page 1 Smartphone X-treme PQ54 User manual...
  • Page 2 Dear Client! Thank you for purchasing Sigma mobile product! Please read this manual before using the device to ensure safe and proper use and prevent it from damages. Software, design features and content of manual may be changed to improve the product without a prior notice.
  • Page 3  If the moisture in your phone is not due to factory defects and mechanical damage or loose plugs closed - warranty of the device will not be done. Package contents Package Contents:  Smartphone Sigma mobile X-treme PQ54  Network charger  USB cable  Headset ...
  • Page 4: Table Of Contents

    Memory Operational – 3 GB, built – 32 GB**. The possible storage extension by micro-SD cards up to 128 GB. Dual SIM, 3G, LTE 2 SIM cards that support 3G technology and LTE – for using Internet and to make calls. WI-FI 802.11 B/G/N Connection Interface to the wireless network The ability to determine the location and to use...
  • Page 5: Safety And Security

    Accessibility ...................... 22 Google™ ......................22 System ......................22 Backup ......................23 About phone ....................23 Connection ......................24 Phone ....................... 24 Contacts ......................25 Messaging ......................26 Programs ....................... 27 Internet ......................27 Email ........................ 27 Camera ......................28 Gallery ......................
  • Page 6: Headset Usage

     The phone does not contain harmful substances  The spent battery pack at the end of service life, dispose of in accordance with law. With the failure of the legislation on the disposal of legal liability arises. Headset usage ...
  • Page 7: Buttons And Ports

    Buttons and ports Hot key Flash SIM/microSD slot Main camera Proximity sensor Camera Audio Receiver Fingerprint scanner Front camera Audio port compartment...
  • Page 8: Standby Mode

    Volume USB Type C compartment Power on/off Speaker Standby mode In operation mode the short pressing on the power button leads the device to the standby mode, the screen goes dark. The repeated short pressing on the power button leads the device out from the standby mode;...
  • Page 9 Roaming (outside of normal service area) GPRS network connected EDGE network connected UMTS network connected HSPA+ network connected LTE network connected Wi-Fi connected Bluetooth activated GPS activated Call in progress Missed call Synced with the web New text or multimedia message Alarm activated Do not disturb mode activated Vibration mode activated...
  • Page 10: Charging The Battery

    Charging the battery Charge the battery before using it for the first time. Use only Sigma mobile approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.  When the battery power is low, the battery icon appears as empty.
  • Page 11: Installing A Sim-Card And Memory Card

    Sigma mobile service center for safe removal. Be careful not to lose your SIM card and do not let others use it. Sigma mobile is not liable for any damage or inconvenience caused by the loss or theft of the cards.
  • Page 12: Main Techniques

    MAIN TECHNIQUES Touchscreen usage It is recommended to use fingers when you use the touchscreen. Attention! Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction. To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips.
  • Page 13 Notifications When you receive new notifications, such as messages or missed calls, indicator icons appear on the status bar. To see more information about the icons, open the notification panel and view the details. To open the notification panel, drag the status bar downwards.
  • Page 14 Folder usage You can combine multiple shortcuts in folders on the home screen. On the Home screen, tap and hold an app, and then drag it over another app. Drop the app when a folder frame appears around the apps. A new folder containing the selected apps will be created.
  • Page 15: Account Settings

    Scroll left and right on the widget panel and then touch and hold widget to add it to the home screen. Place it on the proper place, change size by dragging (if you wish) and then touch any part of screen to save the widget location. Account settings You need Google account to use Google programs such as Google Play, Gmail and ext.
  • Page 16: Settings

    On the Applications screen, tap Settings → Security & Location→ Screen Lock→ Pattern. Draw a pattern by connecting four dots or more, and then draw the pattern again to verify it. Set a backup unlock PIN to unlock the screen when you forget the pattern. Setting a PIN On the Applications screen, tap Settings →...
  • Page 17: Network & Internet

    Network & Internet WI-FI In the WI-FI section you will see a WI-FI switch, a list of available networks, the latest line of which is "Add Network" - for manually adding the WI-FI network and a Saved network – list of network has been saved. For settings press WiFi preferences: ...
  • Page 18: Connected Devices

    Mobile data switch: Set the device to use data connections on any mobile network. Mobile data usage: accounting of usage of data services in all mobile networks Set mobile data limit and billing cycle: Set a limit for the mobile data usage. Data saver: Data saver prevents some apps from sending or receiving data an the background Wi-Fi usage: Set the device to show your data usage via Wi-Fi.
  • Page 19: Apps & Notifications

    most cases, you need to attach devices to the back panel). The other device should also support NFC technology.. Cast Screencast to wireless device (such as Smart TV) How to use USB (when connected to a PC):  Charge this device ...
  • Page 20: Battery

    Advanced Installing default apps to use in certain situations. Configuring Special app Access to System Processes (battery optimization, modify system settings and so on). Battery In this menu you can see the battery usage after the last full charge, enable / disable power saving mode, set sleep mode, enable battery percentage display, and more.
  • Page 21: Security & Location

    Security & location Security status  Turn Google Play protect on / off and report on it  Turn on and set up the "Find My device" feature Device security There is a changing of security settings of device and SIM- or USIM-card. ...
  • Page 22: Users & Accounts

    – To change the PIN-code of the SIM-card: PIN-code changing that is used for the access on the SIM-card.  Type of storage: set up the type of storage for account data saving.  Trusted account data: certificate and account data usage to ensure secure use of various applications.
  • Page 23: Backup

    Languages: language list for texting.  To block offensive words: prohibition against recognizing by the device abusive words entered by voice data. Offline speech recognition: downloading and installation of the voice data for voice input offline. Reset options Reset device settings ...
  • Page 24: Connection

    CONNECTION Phone Use this program for making class or answering on them. Touch Phone on the screen. Making a call  To make a call you may use one of the following ways:  PHONE: enter the number by the keyboard, and then tap ...
  • Page 25: Contacts

    Receiving calls Calls respond When a call comes in, swipe up to answer and swipe down to reject a call. When the waiting mode is on, it is possible to answer another receiving call. If you answer on the second call, the first one is placed on standby mode.
  • Page 26: Messaging

    to select where to save the contact and enter contact information. Having done the entering, tap Save to save changes. Contact editing Choose contact for editing and then tap Contact removing To remove the contact, tap and choose Delete. To set speed dial number Touch contact, tap , icon is changed to , the contact appears on the panel...
  • Page 27: Programs

    Messages settings Touch the message on the program screen, tap , choose Settings. In this menu you may set:  Default program for sending SMS  SMS settings: delivery reports, SMS storage location, editing the quick test, editing of the SMS center sending, SMS inputting mode ...
  • Page 28: Camera

     Add recipients and enter an email text.  Tap to send the email. Reading emails When Email is open, the device will automatically retrieve new emails. To manually retrieve emails, swipe downwards on the screen. Tap an email on the screen to read it.
  • Page 29  Swipe right to go to the capture mode selection screen and the settings  For capture photo choose mode: Normal, Panorama, HDR, Beauty, Bokeh  Tap the image on the preview screen where the camera should focus.
  • Page 30: Gallery

     Spread two fingers apart on the screen to zoom in, and pinch to zoom out.  Tap to take a photo or to take video.  To change the focus while recording a video, tap where you want to focus. ...
  • Page 31: Google Programs

     Choose the image and video. On the video draft the sign is displayed . To play the video, tap it. To hide or display the menu touch the screen.  To select additional options, tap .  To send photo or video, tap ...
  • Page 32: Troubleshooting

     The touchscreen may malfunction in humid conditions or when exposed to water.  Restart your device to clear any temporary software bugs.  If the touchscreen is scratched or damaged, visit a Sigma mobile Service Centre.
  • Page 33 Your device does not react on pressing the keys or encounters a fatal error Try the following solutions. If the problem is still not resolved, contact a Sigma mobile Service Centre. Restarting the device If your device does not react on pressing the keys or freezes you may need to close apps or turn off the device and turn it on again.
  • Page 34  Charge the battery.  Free some memory by transferring files to a computer or deleting files from your device.  Restart your device. If you still have troubles with the camera app, contact Sigma mobile service Centre. Photo quality is poorer than the preview ...
