Thank you for buying the X-style 310 mobile phone. This
manual includes the description of the main functions of the
phone.
X-style 310 allows you to use 2 GSM SIM cards in dual standby
mode, meaning that in standby mode both cards are online.
Whereas during the call 1 card works in active mode and 1
other card is unavailable.
The content of the manual is correct. The description of some
functions may vary due to changes in software or provider
services. The company keeps the right to make changes to the
technical specifications without previous warning.
Key remarks on safety measures
This phone is designed for calling and receiving calls, sending
SMS messages, surfing the Internet (may be unavailable) etc.
Read the section below very carefully and strictly follow the
instructions.
The phone doesn't contain any materials harmful for health.
• Do not use the phone out in the open during
thunderstorms.
• Do not subject the battery to high temperatures, explosive
and flammable liquids.
• Turn off the phone in situations when using it can cause
danger or other difficulties.
• Do not put the phone in heating devices such as
microwave ovens, stoves, or heaters.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sigma mobile X-style 310
Summary of Contents for Sigma mobile X-style 310
- Page 1 X-style 310 allows you to use 2 GSM SIM cards in dual standby mode, meaning that in standby mode both cards are online. Whereas during the call 1 card works in active mode and 1 other card is unavailable.
- Page 2 • Do not try to open the mobile phone's frame. If the phone or any of the accessories do not work properly, please contact the closest authorized service center. • Use only the accessories and charging devices assigned to this model. Do not use defective or second-hand chargers. •...
- Page 3 Specifications Phone, GSM 900: 880-915 MHz (Tx), 925-960 frequency (Rx) bands GSM 1800: 1710-1785 MHz (Tx), 1805-1880 (Rx) Number 2 SIM (nanoSIM). Dual SIM Dual SIM-cards Standby mode Messages Bluetooth V3.0, version 2400-2483.5 MHz frequency band Display 2,8’’, colour LCD, 240x320 pix Camera 0,3 МP Supporting...
- Page 4 Package includes: • Mobile phone • Battery • Charging device • OTG adapter • User manual • Warranty card...

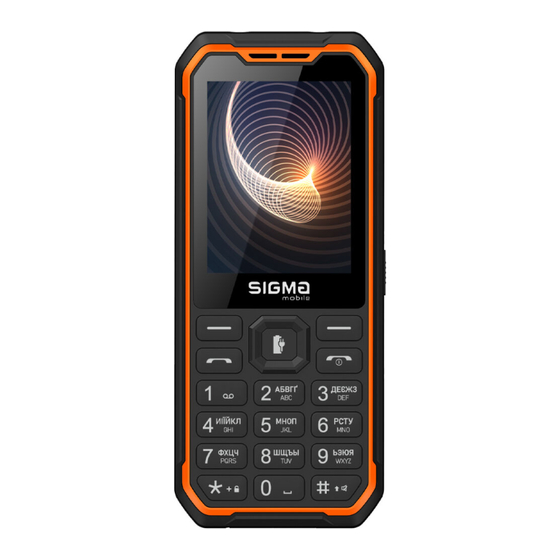

- Page 5 Phone’s appearance Receiver Central key (Press and hold to activate the Smart Charger function)
- Page 6 Left soft key (LSK) Calling\receiving a call Microphone USB Type-C and audio ports Navigation buttons Right soft key (RSK) Reject\cancel\display activation (press and hold to turn the phone on or off) Flashlight on/off button Camera Main speaker Flashlight...
- Page 7 Inserting the SIM cards and memory card Open the back cover and take out the battery. Insert the SIM cards in the proper device slots. Then insert the microSD card if needed. Reinsert battery, making sure that battery contacts fit the phone contacts.
- Page 8 and the «*» key. It is also possible to lock the device by pressing the «End Call» button (if it is turned on in settings). Unlocking occurs through consequent pressing of the left soft key and the «*» key. Keys specification Press: to call the dialed Call button number.
- Page 9 In standby mode: press to Left soft key open the Menu/open Options. Successive pressing of LSK and *: to lock/unlock the keypad. In standby mode: press to Right soft key open the Phonebook. In the menu: press to return to the previous page.
-
Page 10: Basic Operations
New message Missed call Memory card installed Silence profile activated Outdoor profile activated Meeting profile activated Alarm clock is active Bluetooth mode on Keyboard is locked Basic operations Calling Dial the phone number using the phone's numeric keypad or go to Call history and press the "Call" button to make the call. You can also make a call from the "Phonebook"... - Page 11 During the call you can also: switch to the speakerphone mode, start a recording of the call, add another caller to communicate in conference mode, turn the microphone on/off, etc. Primary SIM Mode With two SIM cards installed, it is possible to assign one of them as the main one for outgoing calls.
- Page 12 Accepting/declining a call During an incoming call press the “Call” button to accept the call. Press the “End Call” button to reject the call. Sound modes Ringtones, volume and other parameters may be adjusted in the User Profile settings (Menu—User Profiles). 4 preinstalled profiles are available: General, Silent, Meeting and Outdoor.
- Page 13 Edit: edit the contact. Delete: delete the selected contact. Copy: Copy contact to the phone or the SIM card. Add to Blacklist. Add to Whitelist. Select multiple: select multiple contacts for further copying / deleting / grouping SMS. Ways to add a new contact to the Phonebook: 1.
- Page 14 Extras The following programs are available in this menu: Calculator – for arithmetic calculations. Ebook reader – for reading texts in TXT format (UNICODE txt files). Calendar – for viewing the calendar. Alarm – allows you to set up several alarms simultaneously. Multimedia Note: It is best to use the following functions in the menu "Multimedia"...
- Page 15 message, the means of receiving delivery status reports, adjust the settings for saving messages, and turn push notifications on/off. User Profiles This menu is intended for setting up sound profiles, i.e. volume parameters, ringtones, vibrate mode, button sounds and systems for different conditions of using the phone, such as: General, Silent, Meeting, and Outdoors.
- Page 16 The following recommendations may help to solve some problems with the phone. If problems occur, try to solve them yourself according to the following recommendations. If the problem is not solved, contact the Sigma mobile service center. Check whether the battery is charged and whether the problem persists after reloading the device.
- Page 17 Problems with the memory card mostly occur in case of memory card failure. Thus, firstly check the given card separately. We also recommended: taking out and reinsert the memory card in the slot, checking whether the card is installed in the slot correctly, and reloading the phone. The phone does not turn on: check battery charge, connect the charging device once more, and wait at least 10 minutes.
- Page 18 Be careful while installing the passwords: if they are lost, renewing phone functionality is only possible in the service center.
