Summary of Contents for Sigma mobile Smartphone X-treme PQ53

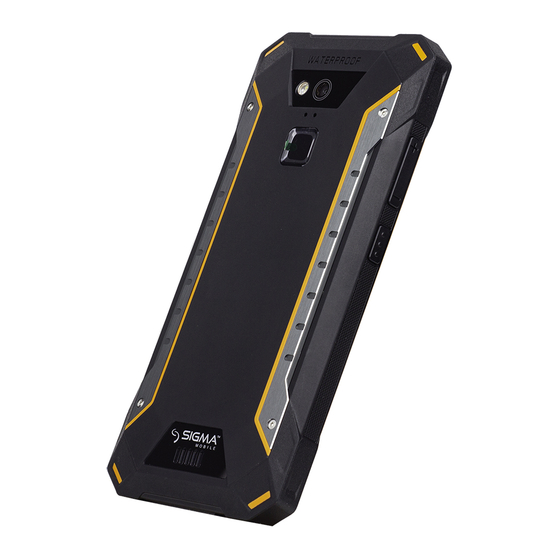

- Page 1 Smartphone X-treme PQ53 User manual...
- Page 2 Dear Client! Thank you for purchasing Sigma mobile product! Please read this manual before using the device to ensure safe and proper use and prevent it from damages. Software, design features and content of manual may be changed to improve the product without a prior notice.
- Page 3 If the moisture in your phone is not due to factory defects and mechanical damage or loose plugs closed - warranty of the device will not be done. Package Contents: Smartphone Sigma mobile X-treme PQ53 Network charger USB cable ...
-
Page 4: Table Of Contents
Camera 8 Megapixel on the back and 8 Megapixel on the front side of device to take photos and record video. Memory Operational – 2 GB, built – 16 GB**. The possible storage extension by micro-SD cards up to 128 GB. Dual SIM, 3G, LTE 2 SIM cards that support 3G technology and LTE –... -
Page 5: Safety And Security
Apps & notifications ....................19 Battery ........................20 Intelligent assistant ....................20 Display ........................20 Sound........................20 Storage ........................20 DuraSpeed ......................20 Security & location ....................21 Users & accounts ....................22 Accessibility ......................22 Google ........................22 System ........................22 Backup ........................ -
Page 6: Headset Usage
Avoid contacts with sources of electromagnetic radiation. For cleaning device do not use chemicals or cleaning means; always turn the device off before cleaning. Do not disconnect device from the PC while formatting and copying files. When using the device as a removable disk always follow the instructions. Any false step may lead to loss of files. -
Page 7: Buttons And Ports
Buttons and ports Receiver SIM/microSD slot Front camera Main camera Volume Flash Hot key Microphone USB Type C compartment Opening of membrane of pressure Microphone Fingerprint scanner Power on/off Speaker... -
Page 8: Standby Mode
Standby mode In operation mode the short pressing on the power button leads the device to the standby mode, the screen goes dark. The repeated short pressing on the power button leads the device out from the standby mode; the lock screen is showed on the display. To unlock the screen, you may swipe from the bottom in any part of the screen. -
Page 9: Charging The Battery
GPRS network connected EDGE network connected UMTS network connected HSPA+ network connected LTE network connected Wi-Fi connected Bluetooth activated GPS activated Call in progress Missed call Synced with the web New text or multimedia message Alarm activated Do not disturb mode activated Vibration mode activated Flight mode activated Error occurred or caution required... - Page 10 Use only Sigma mobile approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device. When the battery power is low, the battery icon appears as empty. If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected.
-
Page 11: Installing A Sim-Card And Memory Card
Sigma mobile service center for safe removal. Be careful not to lose your SIM card and do not let others use it. Sigma mobile is not liable for any damage or inconvenience caused by the loss or theft of the cards. - Page 12 Attention! Do not allow the touchscreen to come into contact with other electrical devices. Electrostatic discharges can cause the touchscreen to malfunction. To avoid damaging the touchscreen, do not tap it with anything sharp or apply excessive pressure to it with your fingertips. The device may not recognize touch inputs close to the edges of the screen, which are outside of the touch input area.
- Page 13 status bar downwards. To close the notification panel, swipe upwards on the screen. Scroll down to see additional notifications. On the notifications panel you may view current device settings Settings : switch to device settings Wi-Fi: Wi-Fi function on/off ...
-
Page 14: Account Settings
To delete apps in a folder, tap the folder, and then drag the app you want to delete to Remove at the top of the screen. To rename the folder, tap the name. Panels managing Adding new panel New panel is added automatically when the new object is added beyond the existing panels. -
Page 15: Files Transferring
Adding accounts To set up Google account follow the instructions, which are displayed when the Google is opened without signing in. To enter the system by the Google account or register Google account touches the program menu - Settings →Users & Accounts →Add account→ Google. It is possible to use a few Google accounts. -
Page 16: Settings
Enter at least four numbers, and then enter the password again to verify it. Setting a password On the Applications screen, tap Settings → Security & Location→ Screen Lock → Password. Enter at least four characters including numbers and symbols, and then enter the password again to verify it. -
Page 17: Network & Internet
Network & Internet WI-FI In the WI-FI section you will see a WI-FI switch, a list of available networks, the latest line of which is "Add Network" - for manually adding the WI-FI network and a Saved network – list of network has been saved. - Page 18 Data usage Keep track of your data usage amount, and customize the settings for the limitation. Mobile data switch: Set the device to use data connections on any mobile network. Mobile data usage: accounting of usage of data services in all mobile networks Set mobile data limit and billing cycle: Set a limit for the mobile data usage.
-
Page 19: Apps & Notifications
most cases, you need to attach devices to the back panel). The other device should also support NFC technology.. How to use USB (when connected to a PC): Charge this device Transfer files Transfer photos (РТР) Use device as MIDI Apps &... -
Page 20: Battery
Advanced Installing default apps to use in certain situations. Configuring Special app Access to System Processes (battery optimization, modify system settings and so on). Battery In this menu you can see the battery usage after the last full charge, enable / disable power saving mode, set sleep mode, enable battery percentage display, and more. -
Page 21: Security & Location
Security & location Security status Turn Google Play protect on / off and report on it Turn on and set up the "Find My device" feature Device security There is a changing of security settings of device and SIM- or USIM-card. ... -
Page 22: Users & Accounts
– To change the PIN-code of the SIM-card: PIN-code changing that is used for the access on the SIM-card. Type of storage: set up the type of storage for account data saving. Trusted account data: certificate and account data usage to ensure secure use of various applications. -
Page 23: Backup
Languages: language list for texting. To block offensive words: prohibition against recognizing by the device abusive words entered by voice data. Offline speech recognition: downloading and installation of the voice data for voice input offline. Reset options Reset device settings ... -
Page 24: Connection
CONNECTION Phone Use this program for making class or answering on them. Touch Phone on the screen. Making a call To make a call you may use one of the following ways: PHONE: enter the number by the keyboard, and then tap ... -
Page 25: Contacts
Receiving calls Calls respond When a call comes in, swipe up to answer and swipe down to reject a call. When the waiting mode is on, it is possible to answer another receiving call. If you answer on the second call, the first one is placed on standby mode. -
Page 26: Messaging
to select where to save the contact and enter contact information. Having done the entering, tap Save to save changes. Contact editing Choose contact for editing and then tap Contact removing To remove the contact, tap and choose Delete. To set speed dial number Touch contact, tap , icon is changed to , the contact appears on the panel... -
Page 27: Programs
Messages settings Touch the message on the program screen, tap , choose Settings. In this menu you may set: Default program for sending SMS SMS settings: delivery reports, SMS storage location, editing the quick test, editing of the SMS center sending, SMS inputting mode ... -
Page 28: Camera
Add recipients and enter an email text. Tap to send the email. Reading emails When Email is open, the device will automatically retrieve new emails. To manually retrieve emails, swipe downwards on the screen. Tap an email on the screen to read it. - Page 29 Taking photos or recording videos Set the shooting mode: Photo, Video, Panorama, etc. Tap the image on the preview screen where the camera should focus. Spread two fingers apart on the screen to zoom in, and pinch to zoom out. ...
-
Page 30: Gallery
features a wide-angle lens. Minor distortion may occur in wide-angle photos and does not indicate device performance problems. Gallery Viewing photos and videos saved on device and managing it. To view photos and videos: Tap Gallery on the Apps screen. ... -
Page 31: Troubleshooting
Setting some apps that Google provided. TROUBLESHOOTING Before contacting a Sigma Mobile Service Centre, please attempt the following solutions. Some situations may not apply to your device. When you turn on your device or while you are using the device, it prompts you to enter one of the following codes: ... - Page 32 If the touchscreen is scratched or damaged, visit a Sigma mobile Service Centre. Your device does not react on pressing the keys or encounters a fatal error Try the following solutions. If the problem is still not resolved, contact a Sigma mobile Service Centre.
- Page 33 Charge the battery. Free some memory by transferring files to a computer or deleting files from your device. Restart your device. If you still have troubles with the camera app, contact Sigma mobile service Centre. Photo quality is poorer than the preview ...
