LM5175RHF (QFN) EVM
User's Guide
Literature Number: SNVU518
April 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM5175RHFEVM-HD and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments LM5175RHFEVM-HD

Summary of Contents for Texas Instruments LM5175RHFEVM-HD

  • Page 1 LM5175RHF (QFN) EVM User's Guide Literature Number: SNVU518 April 2016...

  • Page 2: Table Of Contents

    Output Voltage Ripple, 20-MHz Bandwidth ................... 5.4.3 Startup Waveform ......................EVM Documentation ........................ Schematic ......................PCB Layout ......................Bill of Materials .......................... Revision History Table of Contents SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 3: High Density Evm Description

    LM5175RHF (QFN) EVM User Guide High Density EVM Description The LM5175RHFEVM-HD demonstrates a compact buck-boost design using the LM5175 high performance 4-switch buck-boost controller. This evaluation module is designed to operate with input voltage from 5 V to 42 V and provide a regulated 12 V output with load current up to 6 A. The transition...

  • Page 4: Evm Photos

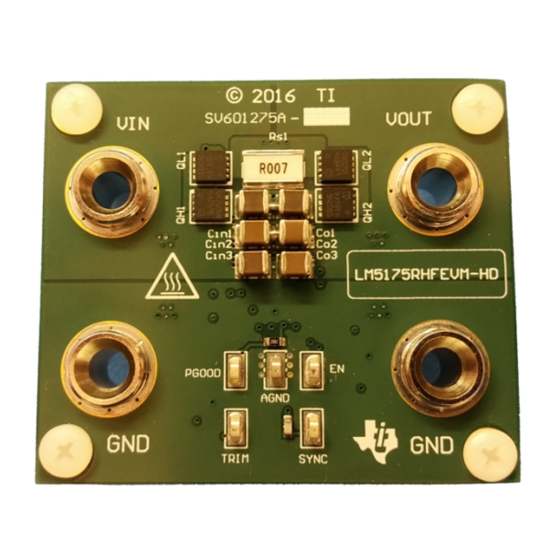

    EVM Photos www.ti.com EVM Photos Figure 1. EVM Top Side Figure 2. EVM Bottom Side LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 5: Signal Connections And Test Point Descriptions

    EN input of a downstream converter to provide sequential startup of multiple regulators. 3.3.4 Enable Voltage Input The LM5175RHFEVM-HD provides a test point for measuring the EN voltage. Shorting this test point to GND disables the converter. The EN/UVLO voltage should not exceed the input voltage. SNVU518 – April 2016...

  • Page 6: Sync Input

    3.3.5 SYNC Input The LM5175RHFEVM-HD provides a test point for applying a synchronization (SYNC) input signal. The free-running switching frequency is set at 400 kHz by resistor RT1. However, the converter aligns in frequency and phase with that of the applied SYNC signal up to 600 kHz. If required, apply an external SYNC signal with a frequency higher than the internal free-running frequency as per the LM5175 device datasheet.

  • Page 7: Test Equipment

    Connect voltmeter 2 at VOUT and GND solder lugs to measure the output voltage. • The output current level can be taken from the electronic load readout (if its accuracy is deemed acceptable). SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 8: Test Procedure

    Decrease load to 0 A. Decrease input source voltage to 0 V to power down. 4.3.2 Control Loop Gain and Phase The resistor R16 on the LM5175RHFEVM-HD is a convenient injection point for loop response analysis. • Set up EVM as described previously.
  • Page 9 0.02 0.03 0.05 0.07 0.4 0.5 5 6 7 8 910 Figure 6. Efficiency vs Output Current for V = 24 V SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 10 Table 4. No Load Input Current (IQ) vs Input Voltage IQ (CCM) IQ (DCM) 35 mA 2.6 mA 22 mA 12 mA 58 mA 41 mA LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 11: Line And Load Regulation

    Figure 9. Line and Load Regulation Bode Plots Fc = 4.5 kHz § 60 Figure 10. Bode Plot for V = 6V, I = 3A SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 12 = 12V, I = 3A Fc = 10 kHz § 77 Figure 12. Bode Plot for V = 24V, I = 3A LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 13: Operating Waveforms

    Figure 18. SW1, SW2, I Waveforms: V = 16 V, V = 12 V, I = 0 A V, I = 5 A SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 14 Figure 24. SW1, SW2, I Waveforms: V = 42 V, V = 12 V, I = 0 A V, I = 5 A LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 15: Output Voltage Ripple, 20-Mhz Bandwidth

    Figure 30. Startup at V = 12 V, I = 4A Figure 29. Startup at V = 12 V, I = 0A SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 16 Figure 31. Startup at V = 24 V, I = 0A Figure 32. Startup at V = 24 V, I = 4A LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 17: Evm Documentation

    0.047µF 220pF AGND 0.022µF AGND LM5175RHFR Copyright © 2016, Texas Instruments Incorporated **FOR SPREAD SPECTRU M MODULATION (DITHER), REPLACE Rcd WITH 0.047µF CAPACITOR Figure 33. EVM Schematic SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 18: Pcb Layout

    EVM is a two-sided design, and it includes positions for input and output bulk capacitors. Figure 34. Top Copper (Top View) Figure 35. Layer 2 (Top View) LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 19 EVM Documentation www.ti.com Figure 36. Layer 3 (Top View) Figure 37. Layer 4 (Top View) SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 20 EVM Documentation www.ti.com Figure 38. Layer 5 (Top View) Figure 39. Bottom Copper (Bottom View) LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 21 EVM Documentation www.ti.com Figure 40. Top Layer Silkscreen (Top View) Figure 41. Bottom Layer Silkscreen (Bottom View) SNVU518 – April 2016 LM5175RHF (QFN) EVM User Guide Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 22: Bill Of Materials

    B&F H1, H2, H5, H6 Standoff, Hex, 0.5"L #4-40 Nylon 1902C Keystone AGND, EN, TRIM, Test Point, SMT 5016 Keystone PGOOD, SYNC LM5175RHF (QFN) EVM User Guide SNVU518 – April 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...

  • Page 23: Revision History

    Revision History www.ti.com Revision History DATE REVISION NOTES April 2016 Initial release. SNVU518 – April 2016 Revision History Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
