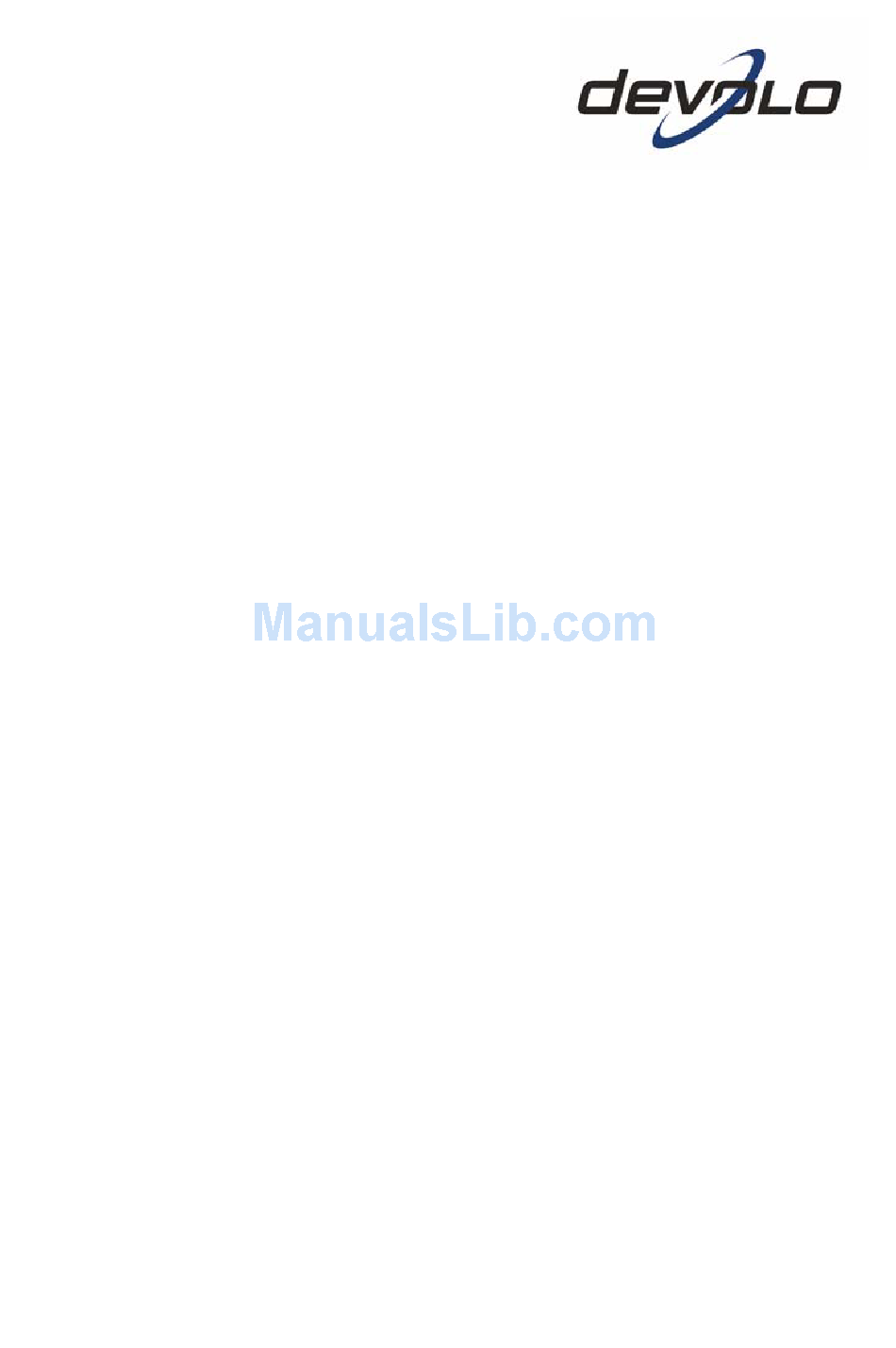

- Page 1 ® dLAN 200 AVplus...
- Page 2 The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
-
Page 3: Table Of Contents
Preface ....5 Thank you for placing your trust in this devolo product....5 About this manual ... - Page 4 CE conformity ....25 4.4.1 Declaration of conformity ....26 Warranty conditions....27 devolo dLAN 200 AVplus...
-
Page 5: Preface
Thank you for placing your trust in this devolo product. The dLAN 200 AVplus allows you to set up your own home network with almost no effort. Because the clever dLAN technology transmits the data over the household electrical wiring, you do not have to lay any new cables. You do not... -
Page 6: Devolo On The Internet
Additional information, background material and configuration tips for your device. And if you are satisfied with your dLAN 200 AVplus, be sure to have a closer look at our other products which are also designed to make your connected lifestyle easier and simpler! We hope you have just as much fun reading this manual as we had writing it. -
Page 7: Introduction
As a result, any power outlet can be used as a network access point. The data is modulated prior to transfer and sent as a signal via household power lines. State-of-the-art technology ensures that the power and data net- Introduction devolo dLAN 200 AVplus... -
Page 8: Devolo-Up To Speed On Green It
Developers at devolo, have for a long time kept a close eye on how much power dLAN adapters may consume. After all, a devolo network via electrical sockets should not only be convenient, but also require as little energy as possible—... -
Page 9: Sample Applications
The patented power saving mode automatically uses up to 30% less power. Compatible with all devolo dLAN 200 AV adapters. Long data range of 200 m (656') between the adapters and reliable network speed for setting up a home network. -
Page 10: Networking Between Two Computers
'IPTV' application with Internet connection via a DSL modem router dLAN 200 AVplus Ethernet Modem/Router For additional application scenarios, as well as answers to frequently asked questions (FAQs) about dLAN networks, visit our website at www.devolo.com. devolo dLAN 200 AVplus dLAN 200 AVplus Ethernet dLAN 200 AVplus... -
Page 11: Initial Use
Initial use This chapter covers everything you need to know to set up your dLAN 200 AVplus. It will explain connecting the dLAN 200 AVplus and its func- tions. We will also introduce the included devolo software and guide you through its installation. -
Page 12: Functions

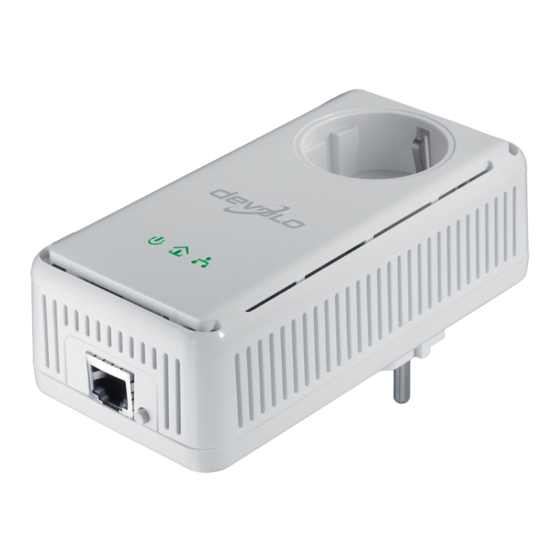

Initial use Functions The dLAN 200 AVplus has three control lamps (LEDs). The device is also equipped with an integrated electrical socket, a network jack and the encryption button. 2.3.1 Control lamps (LEDs) Power dLAN Ethernet devolo dLAN 200 AVplus green dLAN 200 AVplus is ready for operation. -
Page 13: Ports
2.3.2 Ports Network connection This is the connection point on the dLAN 200 AVplus for connecting it to a computer or another network device with the network cable (included). Integrated electrical socket If you connect additional network devices using a multiple socket, plug this multiple socket into the electrical socket of the dLAN 200 AVplus. -
Page 14: Software Installation
Use the included network cable to connect the dLAN 200 AVplus to the net- work port of your running computer or other network device. Plug the dLAN 200 AVplus into a wall socket. -
Page 15: Software For Mac Os X
You will be asked for permission to transfer anonymous performance data related to your dLAN adapter to devolo. The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymised and will be used exclusively for statistical purposes. By providing it, you can help us improve our products. -
Page 16: Security In The Dlan
To encrypt a dLAN 200 AV network, in which all associated devices (e.g. dLAN 200 AVeasy and dLAN 200 AVplus) are equipped with an encryption button, simply press the encryption button that is located on the device. Pressing this button will encrypt your dLAN 200 AV network with a randomly generated pass- word. - Page 17 Encrypting dLAN 200 AVplus adapters Once both dLAN 200 AVplus adapters have been successfully connected, press each encryption button for > one second within two minutes of one another. That's it! Your dLAN 200 AV network is now protected against unauthorised access.
-
Page 18: Encrypting The Dlan 200 Av Network With The Dlan Configuration Wizard
, depending on whether you are setting up a new network or adding the adapter to an existing one. If you would like to combine a dLAN 200 AVplus with older devolo dLAN 200 AV devices in a network, update the firmware of the dLAN 200 AV devices first. - Page 19 Configuration Wizard. Start by updating the firmware (see '2.4.1 Firmware update') of the dLAN 200 AV adapters. After successfully installing the devolo software, you can launch the dLAN Con- figuration Wizard via the Start Device Start dLAN Configuration Wizard in the devolo Informer.
-
Page 20: Devolo Informer
Informer devolo Informer can detect all available dLAN adapters in your home network and display device information in an overview. After installing the devolo soft- ware, it can be found in the Start Programs devolo program group. - Page 21 Options…. You may also specify whether information on the performance of your dLAN adapters will be transferred to devolo here. The data sent to devolo pertains only to the performance values of your dLAN devices. The data is anonymised and will be used exclusively for statistical purposes.
-
Page 22: Appendix
Appendix Appendix Bandwidth optimisation To significantly improve the transmission capacity of the network, we recom- mend that you comply with the following "connection rules": Plug the device directly into a wall socket. Avoid multiple sockets. devolo dLAN 200 AVplus... - Page 23 You should connect all additional network devices that are connected to a mul- tiple socket to the mains power supply via the electrical socket integrated into the dLAN 200 AVplus. To take full advantage of the filter function of the dLAN 200 AVplus and to improve data transmission in the network, always plug the multiple socket into the electrical socket of the dLAN 200 AVplus.
-
Page 24: Important Safety Instructions
200 AVplus... -
Page 25: Technical Data
, Mac OS 32-bit 32/64-bit systems with TCP/IP support CE-compliant in accordance with the technical requirements of all EU countries and Switzerland: EN 55022 :2006, EN 50412-2-1 :2006, EN 60950-1:2006 Appendix ® X and all operating devolo dLAN 200 AVplus... -
Page 26: Declaration Of Conformity
Emissionsanforderungen gestrahlt: Emission requirements radiated: Emissionsanforderungen leitungsgebunden: TCF vom Notified Body Emission requirements conducted: Diese Erklärung wird verantwortlich abgegeben durch: This declaration is submitted by: devolo dLAN 200 AVplus KONFORMITÄTSERKLÄRUNG DECLARATION OF CONFORMITY devolo AG Sonnenweg 11 52070 Aachen devolo dLAN 200 AVplus... -
Page 27: Warranty Conditions
Warranty period The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. Warranty services carried out by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period. - Page 28 Claims for compensation of lost profits, indirect or consequential detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in cases of slight and ordinary negli- gence.
- Page 29 Office and home networks 9 Package contents 11 Power saving mode 8 Quality of Service 5 Security ID 19, 20 Software installation 14 System requirements 11 Technical data 25 Transmission speed 20 Wall socket 22 Warranty conditions 27 Windows 14 devolo dLAN 200 AVplus...
