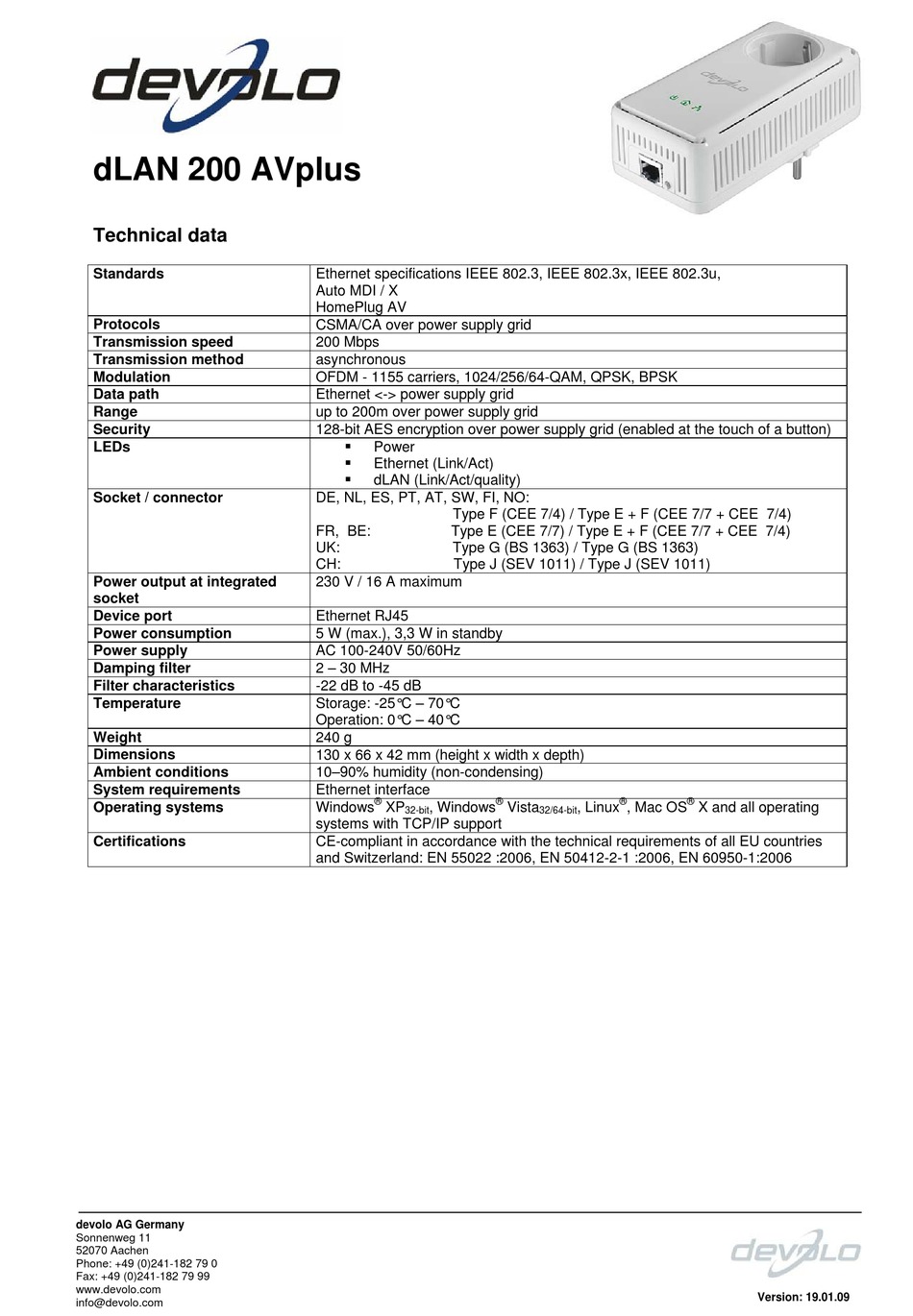

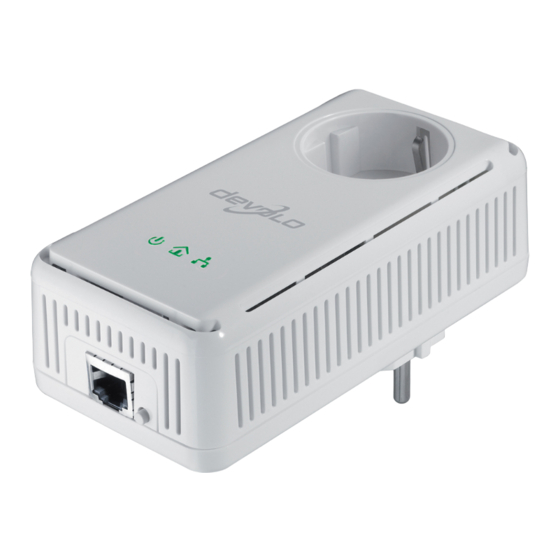

dLAN 200 AVplus
Technical data
Standards
Protocols
Transmission speed
Transmission method
Modulation
Data path
Range
Security
LEDs
Socket / connector
Power output at integrated
socket
Device port
Power consumption
Power supply
Damping filter
Filter characteristics
Temperature
Weight
Dimensions
Ambient conditions
System requirements
Operating systems
Certifications
devolo AG Germany
Sonnenweg 11
52070 Aachen
Phone: +49 (0)241-182 79 0
Fax: +49 (0)241-182 79 99
www.devolo.com
info@devolo.com
Ethernet specifications IEEE 802.3, IEEE 802.3x, IEEE 802.3u,
Auto MDI / X
HomePlug AV
CSMA/CA over power supply grid
200 Mbps
asynchronous
OFDM - 1155 carriers, 1024/256/64-QAM, QPSK, BPSK
Ethernet <-> power supply grid
up to 200m over power supply grid
128-bit AES encryption over power supply grid (enabled at the touch of a button)
Power
Ethernet (Link/Act)
dLAN (Link/Act/quality)
DE, NL, ES, PT, AT, SW, FI, NO:
Type F (CEE 7/4) / Type E + F (CEE 7/7 + CEE 7/4)
FR, BE:
Type E (CEE 7/7) / Type E + F (CEE 7/7 + CEE 7/4)
UK:
Type G (BS 1363) / Type G (BS 1363)
CH:
Type J (SEV 1011) / Type J (SEV 1011)
230 V / 16 A maximum
Ethernet RJ45
5 W (max.), 3,3 W in standby
AC 100-240V 50/60Hz
2 – 30 MHz
-22 dB to -45 dB
Storage: -25°C – 70°C
Operation: 0°C – 40°C
240 g
130 x 66 x 42 mm (height x width x depth)
10–90% humidity (non-condensing)
Ethernet interface
®
Windows
XP
, Windows
32-bit
systems with TCP/IP support
CE-compliant in accordance with the technical requirements of all EU countries
and Switzerland: EN 55022 :2006, EN 50412-2-1 :2006, EN 60950-1:2006
®
®
Vista
, Linux
, Mac OS
32/64-bit
®
X and all operating
Version: 19.01.09
