The reproduction and distribution of the documentation and software supplied with this product and the use of its contents is subject to written authorization from devolo. We reserve the right to make any alterations that arise as the result of technical development.
This manual contains all the information you need about your dLAN 200 AV from devolo. It tells you how to set up and configure your dLAN 200 AV device. The 'All about the network' chapter also contains examples of applications for the dLAN 200 AV.
Page 4
Here we briefly describe the meaning of the symbols used in this manual. Very important notice which, if ignored, may lead to damage. Important notice which should be heeded. Additional information which is useful to know, but not vital. devolo dLAN 200 AV...
Data security and radiation 128-bit AES encryption is used, which guarantees secure data transfer within the network. dLAN devices from devolo meet the stringent EU industrial standards and com- ply with the current standards for electromagnetic radiation. devolo dLAN 200 AV...
What does the dLAN 200 AV have to offer? Powerful and flexible For the first time, the dLAN 200 AV offers a transfer rate of 200 Mbps which makes it ideal for high requirements, such as HDTV streaming, Internet tele- phony and fast Internet.

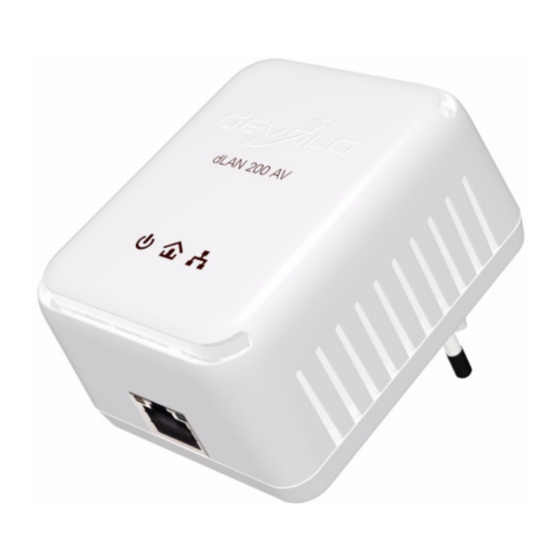

Please note that your computer or other device must feature a network adapter with an Ethernet port. To set up a dLAN 200 AV network, you need two dLAN 200 AV devices. Connection and display elements The dLAN 200 AV features 3 control LEDs as well as an Ethernet port:...
ETH Link/Act Ethernet port Make sure that all of the dLAN 200 AV devices that you want to add to your net- work are also connected to the power supply grid. After about 20 minutes, a dLAN 200 AV switches into stand-by mode unless there is an active network device (e.
For the encryption process, you need the security IDs of the dLAN 200 AV (provided on the underside of unit) and a net- work password of your choosing, which you will assign.
Installing the devolo dLAN 200 AV software Put the enclosed devolo product CD in your CD-ROM drive. From the CD setup, select 'Install dLAN 200 AV'. Windows starts the wizard. Confirm by clicking Next. Select 'Standard Installation' to install the complete devolo dLAN software package.
Page 12
All other dLAN adapters have to be entered manually. Enter in sequence the security IDs of the dLAN 200 AV that are to be included into a network and click Add. Click Next when you have entered all desired dLAN 200 AV.
Overview in the dLAN 200 AV network with the devolo Informer Due to the Informer you always have an overview of all dLAN 200 AV devices in your dLAN 200 AV network. The Informer shows the dLAN 200 AV connected directly to the computer as well as all dLAN 200 AV devices that are included into the same dLAN 200 AV network.
200 AV software Communication in the network using devolo EasyShare All users on the local network who have started EasyShare are automatically rec- ognized by the program and listed: 3.5.1 Configuration The EasyShare software provides two easy wizards, which will guide you quickly...
The lower left window functions as a chat room, which is visible and accessible to all EasyShare users on the local network. Users can "chat" by writing mes- sages and clicking Send. devolo dLAN 200 AV software devolo dLAN 200 AV...
200 AV software Maintain your privacy with devolo EasyClean With EasyClean, you can delete the cached files listed below. Select the check- boxes of the file types you would like to remove, then click Delete. Cookies—Many websites store small files on your computer, so-called cookies.
Page 17
Document history—Internet Explorer maintains lists of open documents and visited websites. This information is generally no longer needed. Please note that EasyClean only supports Microsoft Internet Explorer. devolo dLAN 200 AV software devolo dLAN 200 AV...
All about the network This chapter contains examples for possible network designs in home or in office. Internet standalone solution—Option 1 Workstation with Internet connection over a DSL modem (Ethernet) Networking—Option 2 Connection of two workstations devolo dLAN 200 AV...
Connection of an IP telephone and a high-speed IP-TV application to the Inter- net via a DSL modem router For more answers to frequently asked questions (FAQs), please visit our website at www.devolo.com. All about the network devolo dLAN 200 AV...
Power consumption Power supply Environment System requirements Operating systems CE conformity Design Warranty devolo dLAN 200 AV dLAN 200 AV Ethernet specification IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI/X HomePlug AV TDMA, CSMA/CA 200 Mbps Asynchronous OFDM—1155 carrier, 1024/256/64-QAM, QPSK, BPSK Ethernet <->...
Never use the dLAN 200 AV with a power supply that does not meet the specifications provided on the rating plate. If you do not know what type of power supply you have at home, contact your dealer or energy supplier.
EU and Switzerland. The product is class B equipment. This equipment may cause interference with radio waves in home use; if this occurs the operator may be required to take cor- rective action. devolo dLAN 200 AV...
PLC zu Ethernet PLC to Ethernet 1999/5/EG (R&TTE) 1999/5/EC (R&TTE) EN 60950-1:2001 EN 55024:1998+A1:2001+A2:2003 EN 55022:1998+A1:2000+A2:2003 (Class B) und Expert Opinion vom Competent Body EMV and Expert Opinion by Competent Body EMC Heiko Harbers Vorstandsvorsitzender Appendix devolo dLAN 200 AV...
Warranty period The warranty period for this devolo product is three years. This period begins at the day of delivery from the devolo dealer. Warranty services carried out by devolo do not result in an extension of the warranty period nor do they initiate a new warranty period.
Page 25
Claims for compensation of lost profits, indirect or consequential detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in cases of slight and ordinary negli- gence.
