Installation
Assembly
1
. Place the log set into position.
a. Lift the log set by holding the
sides of the heater box for
stability. Do not lift by gripping
the logs or the grate front legs.
b. If installing the unit in a carpeted
area, place a one-piece, solid,
flat surface under the unit. Make
sure that both of the grate feet
rest securely on this surface.

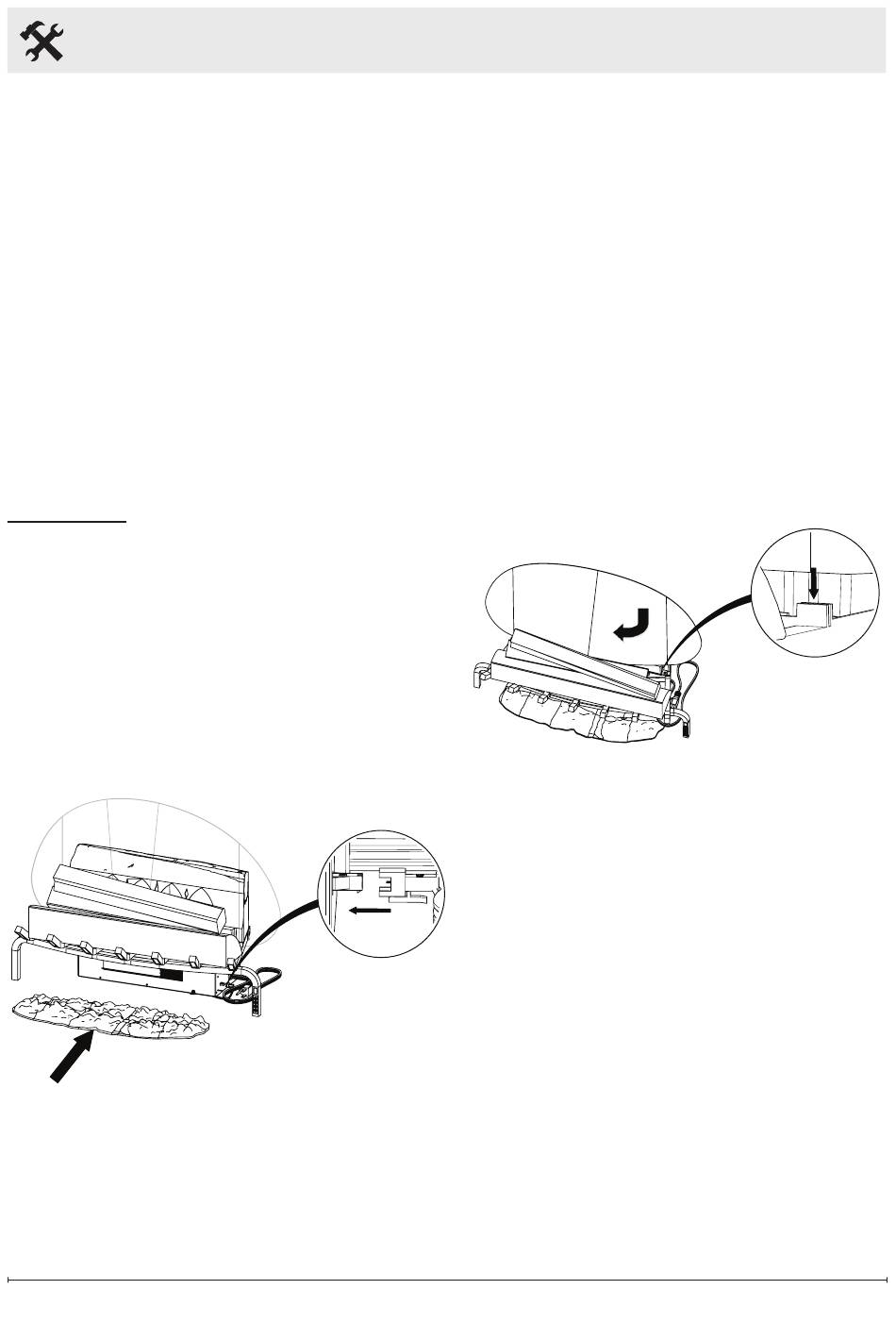

Ember Mat
An ember mat is included and available
as an optional accessory.
2.
Place the ember mat in front and
below the grate.
3.
Connect the wires from the ember
mat to the connector on the right
side of the grate box.
4.
Install the Mirage
inserting the bottom edge into the
tabs between the back log and grate
log assemblies.
The painted side should be at the
back and the smooth side to the
front.
Position the screen so that the
cutout in the middle aligns with
the center tab. Start on one end
to insert the screen in all the way
across. When in place, the screen
should be centered and slightly
curved.
5.
Plug the unit directly into a wall
outlet.
