Summary of Contents for Iiyama ProLite T1931SR

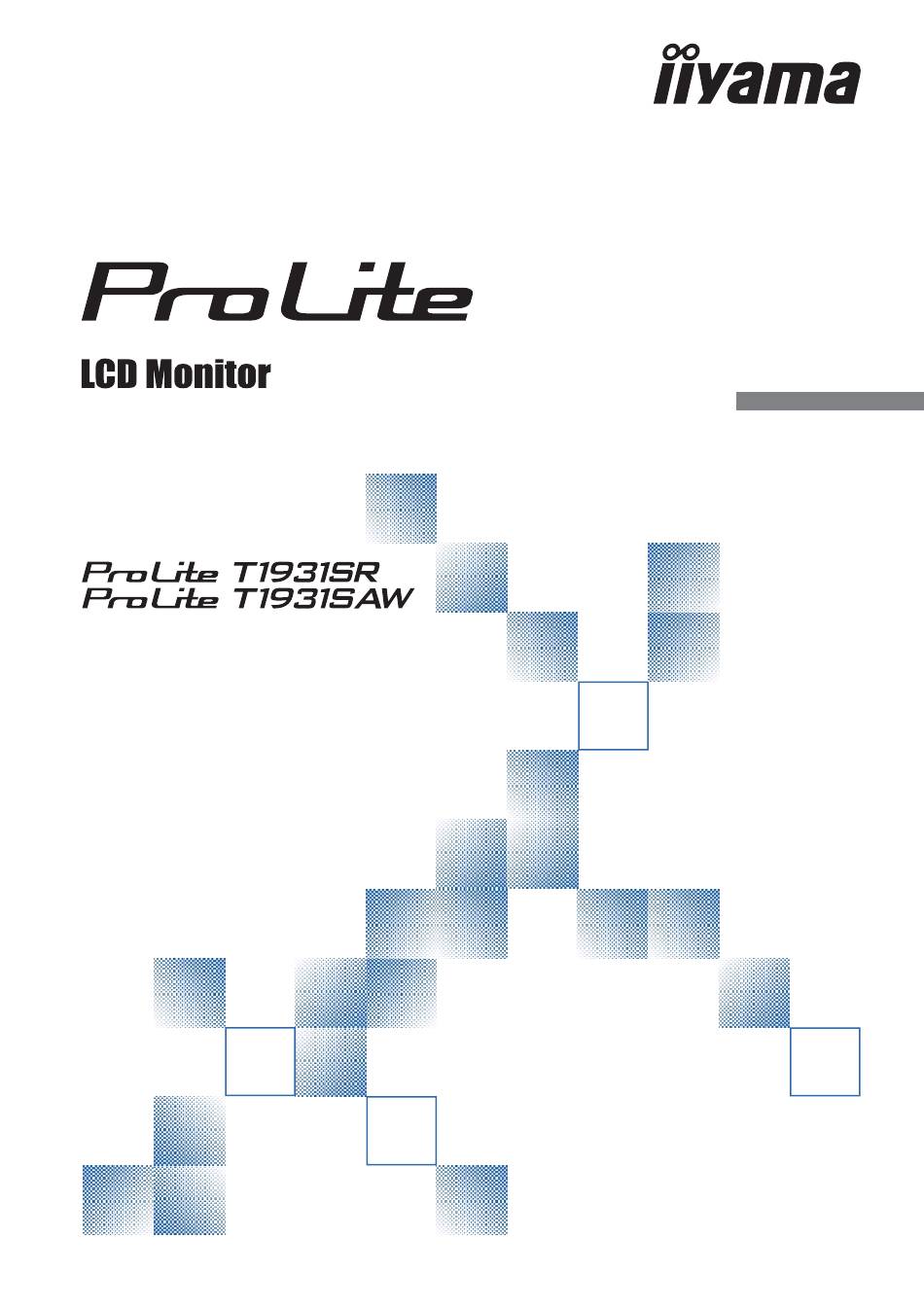

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
-
Page 4: Table Of Contents
ADJUSTING THE VIEWING ANGLE ...........8 OPERATING THE MONITOR .............9 ADJUSTMENT MENU CONTENTS ..........10 SCREEN ADJUSTMENTS ............15 POWER MANAGEMENT FEATURE ...........18 TROUBLE SHOOTING ..............19 RECYCLING INFORMATION ............20 APPENDIX ..................21 SPECIFICATIONS : ProLite T1931SR ........21 SPECIFICATIONS : ProLite T1931SAW ........22 DIMENSIONS ................23 COMPLIANT TIMING ..............23... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
WARNING If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center. NOTE To protect the Touch screen surface, do not scratch or rub the screen with a hard object. -
Page 8: Before You Operate The Monitor
When upgraded from Windows 8 / 8.1 to Windows 10 You need to start a dedicated software. Please contact your dealer or iiyama service center. When used from Windows 10 Please install a driver same as Windows 7 from attached Touch Panel Driver Disk. -
Page 9: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Menu Button ( Scroll Up / Brightness Button ( Scroll Down / Mute Button ( Select Button ( Power Switch ( Keyhole for Security Lock NOTE You can fasten a security lock and cable to prevent the monitor from being removed without your permission. -
Page 11: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 12: Computer Setting
Change to the desired signal timing listed on page 22: COMPLIANT TIMING. Windows XP/Vista/7/8/8.1/10 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 13: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 22. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 14 for SCREEN ADJUSTMENTS. -
Page 14: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS C O N T R A S T B R I G H T N E S S 1 2 8 0x 1 0 2 4 F H : 6 3 K H z FV: 5 9 .9 Hz Adjustment Item Problem / Option Button to Press... - Page 15 Only Analog Input A U TO A DJ U S T H- P OS I T IO N V- P OS I T IO N H -S I Z E F IN E Adjustment Item Problem / Option Button to Press AUTO ADJUST * Adjust H/V-POSITION, H-SIZE and FINE automatically.
- Page 16 OS D H -P OS ITIO N O S D V-P OS ITIO N O S D TIM EO U T R E S E T I N PU T S E LE C T Adjustment Item Problem / Option Button to Press OSD is too left OSD H-POSITION...
- Page 17 ENGLISH ESPAÑOL FRANÇAIS DEUTSCH ITALIANO Adjustment Item Problem / Option Button to Press ENGLISH English ESPAÑOL Spanish Japanese FRANÇAIS French OSD LANGUAGE DEUTSCH German Traditional Chinese Simplifi ed Chinese ITALIANO Italian 9300 6500 5500 GREEN 7500 BLUE USER Adjustment Item Problem / Option Button to Press 9300...
- Page 18 VOLUME MUTE Adjustment Item Problem / Option Button to Press Too soft VOLUME Too loud Turn off the sound temporarily. MUTE Direct Return the sound volume to the previous level. Direct You can skip the Menu items and display an adjustment scale directly by using the following button operations.
-
Page 19: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 20 Press the Button. (AUTO ADJUST) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-POSITION so that the top and bottom of the picture frame will fit to the display area.
- Page 21 Adjust the FINE to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the H-SIZE may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 22: Power Management Feature
POWER 2W or 3W* 100% CONSUMPTION * ProLite T1931SR：2W ProLite T1931SAW：3W NOTE Even when using the power management mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption. -
Page 23: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 24: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 20 RECYCLING INFORMATION... -
Page 25: Appendix
APPENDIX SPECIFICATIONS : ProLite T1931SR Technology Resistive-Film Anti-glare treatment Touch Surface processing Screen Light transmission Communication system USB serial transfer or RS-232C serial transfer Size Category 19" Panel technology Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V... -
Page 26: Specifications : Prolite T1931Saw
SPECIFICATIONS : ProLite T1931SAW Technology Surface acoustic wave Anti-glare treatment Touch Surface processing Screen Light transmission Communication system USB serial transfer or RS-232C serial transfer Size Category 19" Panel technology Size Diagonal: 19" (48cm) Pixel pitch 0.294mm H × 0.294mm V 250cd/m (Typical: without Touch panel), Brightness... -
Page 27: Dimensions
DIMENSIONS 432.0mm/17.0" 59.0mm/2.3" 378.0mm/14.9" 249.5mm/9.8" COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz VESA 48.077kHz 72.188Hz...
