Getting Started (Cont.)

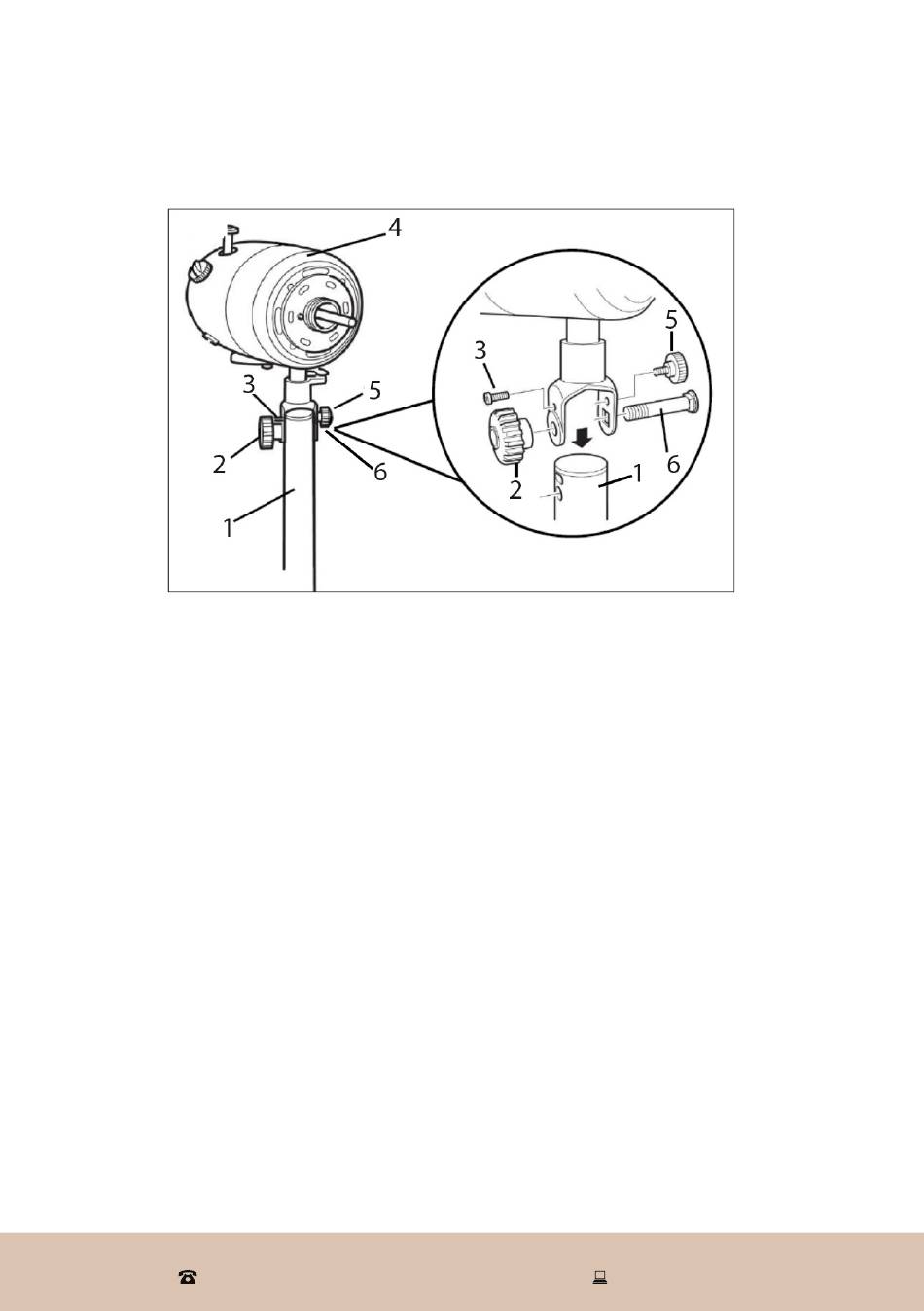

Fig. 3: Attaching the fan head and motor assembly to the post
Fig. 3
1
2
3
4
5
6
• First remove the pivot knob (2) and the large pivot bolt (6) from the top of
the post, then remove the neck retaining screw (3) and small adjustment
knob (5) from the motor housing bracket.
• Place the fan head and motor assembly on the top of the post and thread
the large pivot bolt (6) through the bracket. Screw in the neck retaining
screw (3) and tighten, but do not overtighten.
• Fit the large pivot knob (2) onto the end of the bolt (6) and the small
adjustment knob (5) at the other side above the bolt. Tighten the knobs
while holding the fan motor upright.
8
Post
Pivot knob
Neck retaining screw
Motor housing
Small adjustment knob
Large pivot bolt
AFTER SALES SUPPORT
(AU) 1300 886 649 (NZ) 0800 836 761 |
NOTE: The illustration above
shows the motor housing
without the fan head. On the
fan model you purchased, the
fan head is already assembled
to the motor housing.
