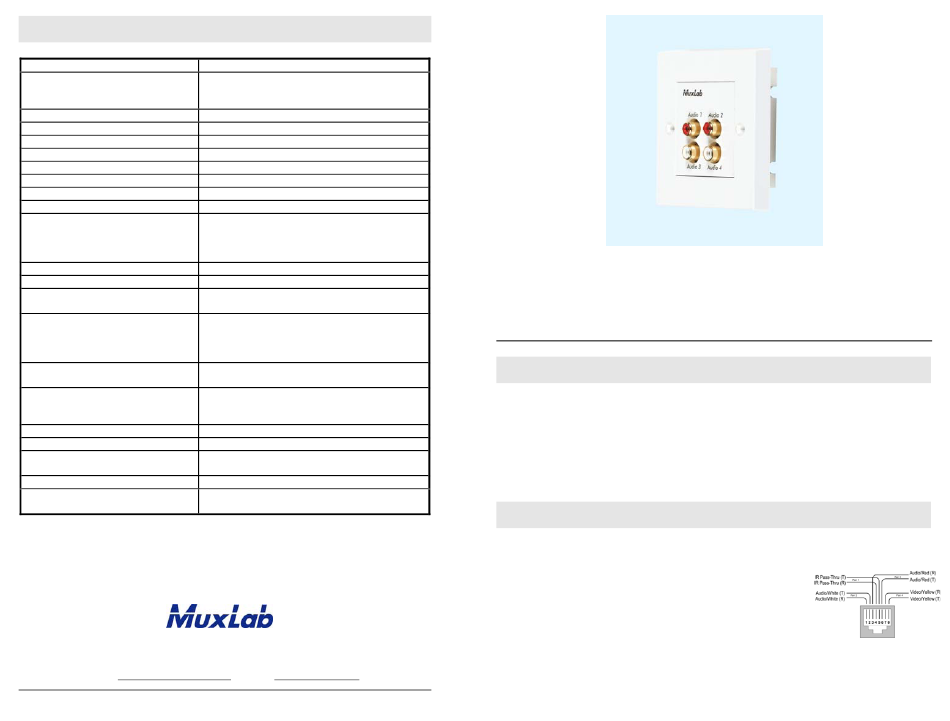

MuxLab 500033-WP-UK Quick Installation Manual

Specifications

Environment
Devices
Transmission
Bandwidth
Peripherals' Impedance
Insertion Loss
Common Mode Rejection Ratio
THD
Maximum Input Level
Impedance Transformation Ratio
Cable: Cat 5E UTP/STP
Unbalanced In/ Out Cable
Ground Loop Isolation
Connectors
Pin Configuration
Max. Distance:
Cat 5E/6 UTP/STP
Temperature
Enclosure
Weight
Dimensions
Warranty
Order Information
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2011
Unbalanced line-level analog audio.
DVD players, audio receivers, audio amplifiers and
audio mixers, audio matrix switchers and other
unbalanced line-level audio equipment.
Transparent to the user
20 Hz to 20 kHz
Source 100 Ω Mx, Receiver 10 kΩ min.
Less than 2 dB per pair over the frequency range
Greater than 60 dB at 1 kHz
Less then 0.007% @ 1 kHz
1.1 Vp-p
Single unit: 4:1 (source: line)
24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Shielded, coaxial
Range of +/-50VDC
Four (4) RCA-F receptacles for audio
One (1) RJ45 jack
Audio 1: Pins 7(R) & 8(T)
Audio 2: Pins 3(R) & 6(T)
Audio 3: Pins 4(R) & 5(T)
Audio 4: Pins 1(R) & 2(T)
3,250 ft (1.0 km)
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Fire retardant plastic
4.8 oz. (136 g)
86 mm x 86 mm x 36 mm. Choose 40 mm deep back
box to allow for Cat 5E/6 wiring connection.
Lifetime
500033-WP-UK Quad Audio WallPlate Balun
UPC: 6-27699-91033-7
Fax: (514) 905-0589
URL: www.muxlab.com
94-000703-A SE-000703-A
Quad Audio Wall Balun
500033-WP-UK
Quick Installation Guide

Overview

The Quad Audio Wall Balun (500033-WP-UK) allows up to four (4) analog line audio
signals to be transmitted via a single Cat 5E/6 cable in a point-to-point connection. Used in
pairs, or in conjunction with the 500033, the Quad Audio Wall Balun features full audio
bandwidth response for high fidelity applications and features built-in color-coded RCA
connectors for ease of installation. The Quad Audio Wall Balun also works in conjunction
with other MuxLab analog audio baluns such as the 500019. Applications include; Audio
distribution, high-fidelity sound systems, and custom residential audio systems.

Installation

One (1) pair of baluns is needed to complete one quad audio connection via Cat 5E/6 twisted
pair. To install the baluns, perform the following steps:
1. Identify the pin configuration of the baluns. One (1) twisted
pair is required for four (4) analog line audio signals. The pin
configuration follows the EIA/TIA 568A/B standard. The
Quad Audio Video Balun is reverse polarity sensitive. Please
ensure that wiring is straight-through (Ring to Ring, Tip to
Tip).
