MuxLab VideoEase Digital Audio Balun Installation Manual

5450 Cote de Liesse, Montreal
Quebec, Canada, H4P 1A5
Tel.: (514) 905-0588
Fax: (514) 905-0589
Toll Free (N.Am): (877) 689-5228
E-mail: videoease@muxlab.com
URL: www.muxlab.com
94-000xxx-A
© MuxLab Inc.

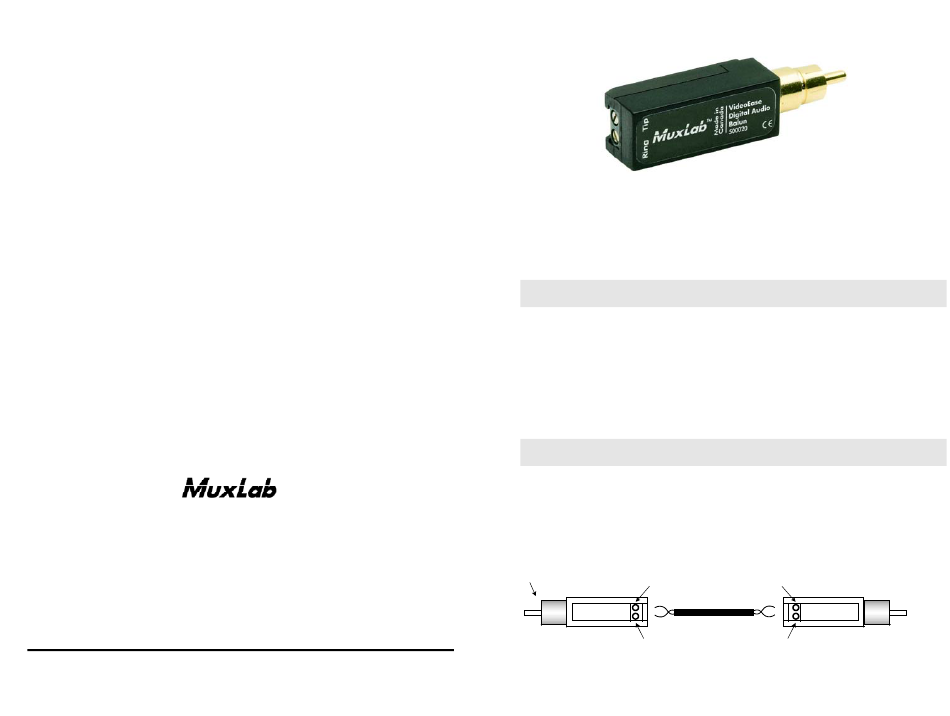

VideoEase Digital Audio Balun (500020)
Introduction
The VideoEase Digital Audio Balun allows a digital audio source to be connected up to
600 feet (183m) away from a digital audio decoder/amplifier via copper unshielded
twisted pair (UTP) in a point-to-point scenario. Used in pairs, the Digital Audio Balun
allows a Digital Audio source such as a DVD, VCR or satellite receiver to be connected
via copper twisted pair to a Digital Audio home theatre system.
Balun connects directly to the digital audio equipment and features screw terminals and
built-in cable strain relief for ease of installation and reliable connectivity.
Installation
To install the VideoEase Digital Audio Baluns, perform the following steps:
1. Identify the pin configuration of the baluns. One twisted pair is required.
Although the Digital Audio Balun is not reverse polarity sensitive, however in
the event that there may be ground loop problems in a particular installation, it
is recommended to ensure straight-through wiring (Ring to Ring, Tip to Tip).
RCA male
SE-000xxx-A
Digital Audio Balun (500020)
Top View (cover off)
Installation Guide
Ring
Tip
Twisted pair cable
1 pair
Ring Tip
The Digital Audio
