MuxLab 500426 Quick Installation Manual

Specifications

Environment HDMI 2.0a
Devices Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops.
Transmission Transparent to the user.
Video Bandwidth 18 Gbps
Frequency Range 25 to 600 MHz
Signals HDMI 2.0a protocol.
HDCP Revision 1.4 & 2.2 compliant.
Connectors HDMI receptacle.
Dip Switch For setting the EDID to be sent to the source (pins: 2, 3 and 4).
(Note: Pin 1 is used to select between normal operation and firmware updates via
the USB service port.)
LEDs Power: Blue
Input & Output Link: Blue
Resolution 480i to 1080p @ 50/60 FPS
1080p @ 24/50/60 FPS
3840 X 2160 @ 24/25/30/60 FPS
Color 8, 10 & 12 bit
LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master
Audio
Audio and DTS:X
Cable HDMI cable of appropriate length for video resolution selected.
Power Supply One (1) 110-240V/5VDC , 2A power supply
Temperature Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Enclosure Metal enclosure
Bracket Included
5.71" x 2.64" x 1.00" (145 mm x 67 mm x 25 mm)
Dimensions
1.2 lbs (0.55 Kg)
Weight
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500426 HDMI 1X4 Splitter, 4K/60
2321 Cohen St, Montreal, QC Canada H4R 2N7.
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc. 2018
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000824-C SE-000824-C
HDMI 1X4 Splitter, 4K/60 (500426)
Quick Installation Guide
Overview
The HDMI 1x4 Splitter (500426) allows one (1) HDMI source to be distributed to
up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160) video
and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports EDID
management and features LED diagnostics. Each output supports an independent
down-scaler from 4K to 1080p, depending on the connected display. Additionally,
all connectors are on the rear panel for neater cabling. Applications include;
commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, medical information
systems.
Pre-Installation Check

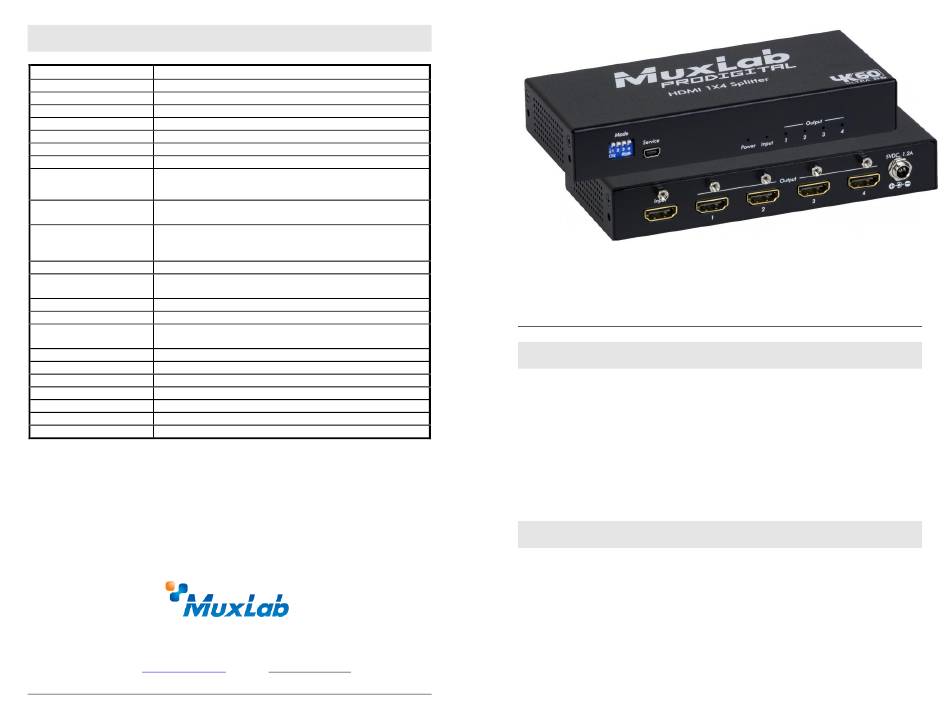

Identify the connectors as indicated on the product diagram above. LEDs are
located on the front and the connectors and dip switch on the rear.
