MuxLab 500422 Quick Installation Manual

Specifications

Environment HDMI 1.4 (3D)
Devices DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transparent to the user
Transmission
25 to 340 MHz
Frequency
HDMI 1.4 protocol
Signals
HDMI receptacle.
Connectors
Power: Green
LEDs
Input & Output Link: Blue
480i to 1080p @ 50/60 FPS
Resolution
1080p @ 24/50/60 FPS
3840 X 2160 @ 24/25/30 FPS
VGA to UXGA
8, 10 & 12 bit
Color
LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Audio
Revision 1.3
HDCP
HDMI Cable
Cable
Temperature Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Enclosure Metal enclosure
Dimensions 10.63" x 4.33" x 1.18" (270 mm x 110 mm x 30 mm)
Weight 3.2 lbs (1.45 Kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500422 HDMI 1X8 Splitter, 2K-4K
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2014
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000756-A SE-000756-A

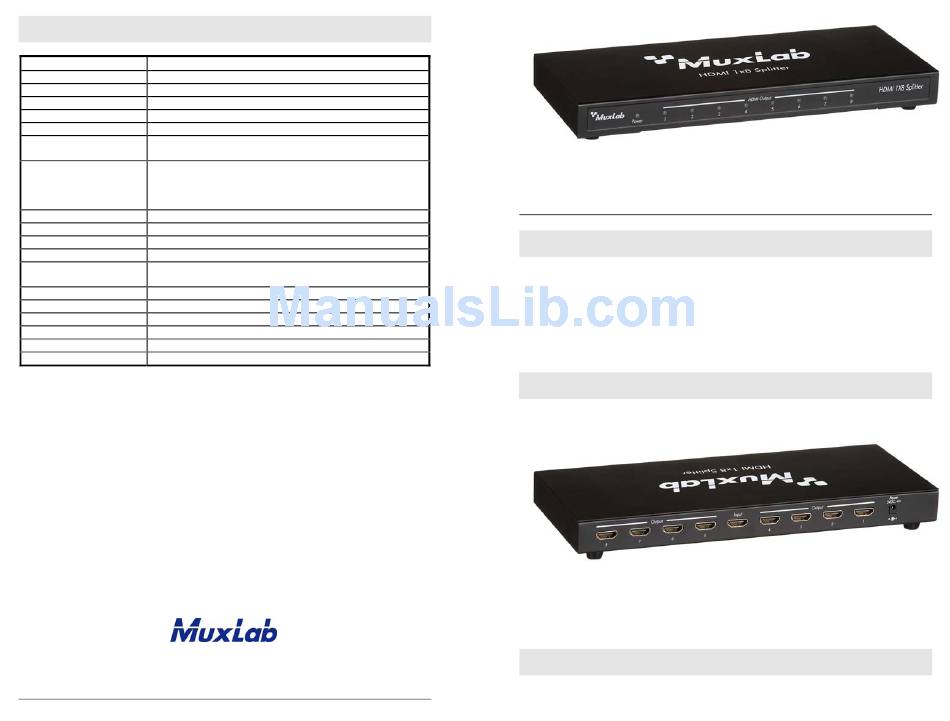

HDMI 1X8 Splitter, 2K-4K (500422)
Quick Installation Guide
Overview
The HDMI 1x8 Splitter (500422) allows one (1) HDMI source to be distributed to
up to eight (8) HDMI displays. The splitter supports up to 4K (3840 X 2160), 8-bit
color and HD audio. The splitter is HDCP 1.3 compliant and features LED
diagnostics. Additionally, all HDMI connectors are on the rear panel for neater
cabling. Applications include; commercial and residential AV systems, classroom
projector systems, digital signage, boardroom systems, collaborative PC systems,
medical information systems.

Pre-Installation Check

Identify the connectors as indicated on the product

Installation
