Summary of Contents for MuxLab 500424

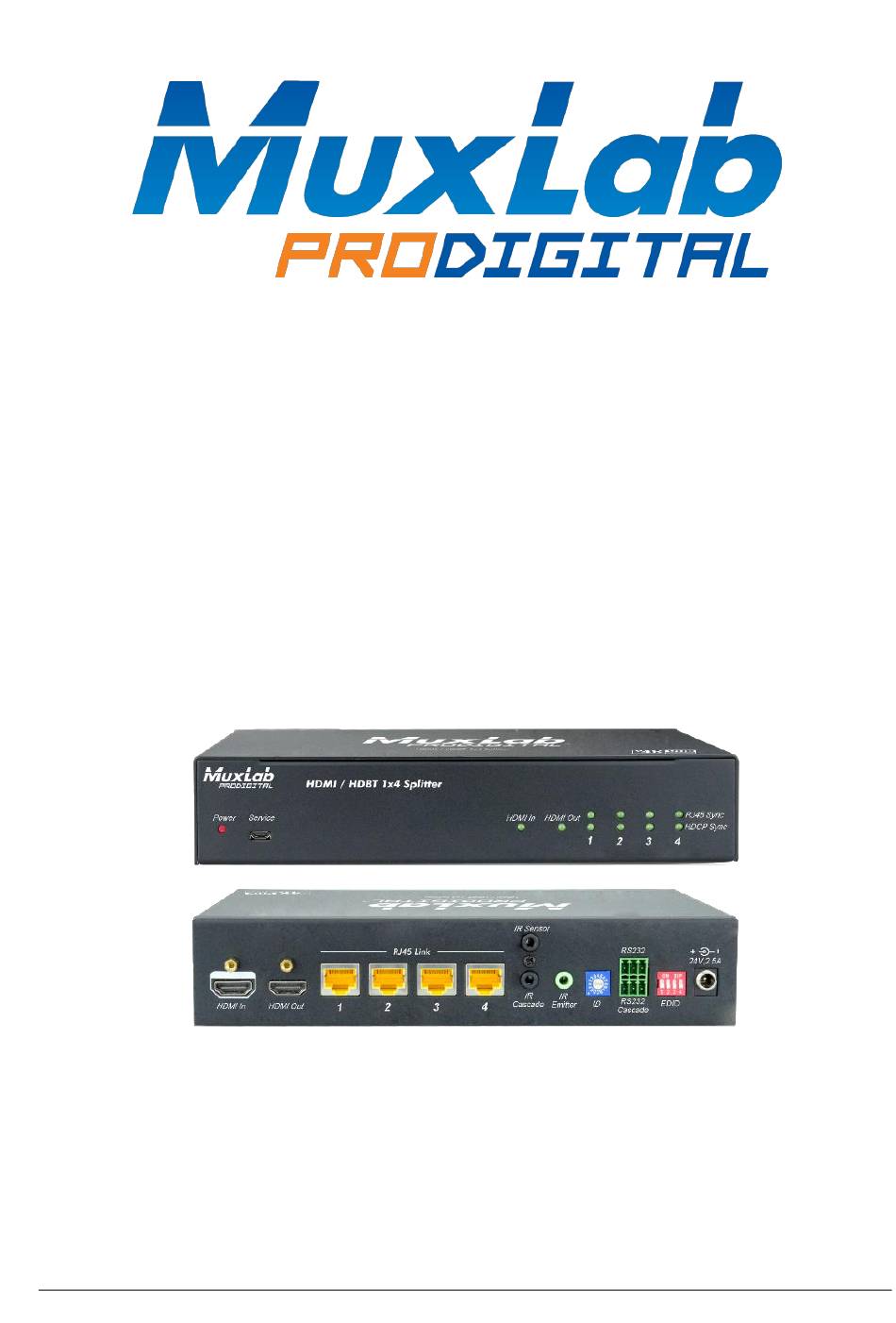

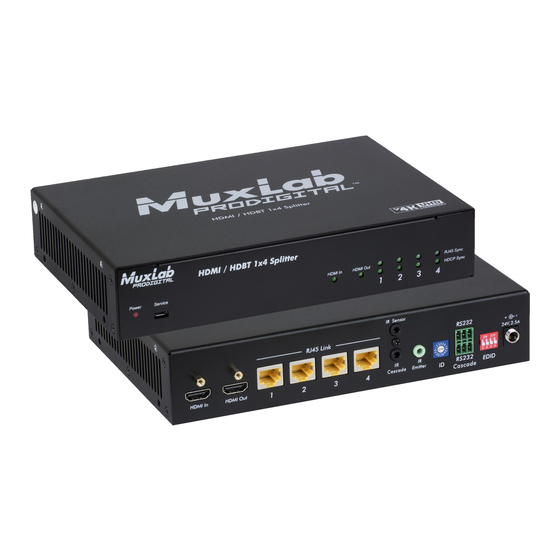

- Page 1 HDMI/HDBT 1x4 Splitter Installation & Operation Manual 500424 © MuxLab Inc. 2016 94-000808-A / SE-000808-A...
- Page 2 Unpack the equipment carefully and save the original box and packing material for possible future shipment. Please read this user manual carefully before using this product. © MuxLab Inc. 2016...
-
Page 3: Table Of Contents
5.1.1. Control far-end display device while local to Splitter ........13 5.1.2. Control far-end source device while remote from Splitter ......14 RS232 Control Commands ..................15 EDID Management ....................17 Panel Drawing ......................17 Troubleshooting & Maintenance ................18 Regulatory Compliance ....................19 © MuxLab Inc. 2016... -
Page 4: Introduction
Transmit 4K @ 30Hz up to 131ft (40m), and 1080p @ 60Hz up to 230ft (70m). Supports cascading via HDMI Out, IR Cascade and RS232 Cascade. Supports bi-directional IR and RS232 control and cascade control of 500424. Supports bi-directional IR and RS232 control of end devices (i.e. source and display devices). -
Page 5: Specification
Please verify that the product and the accessories are all included; if not, please contact your dealer. Specification Environment HDMI 1.4, HDCP 1.4 DVD, projectors, monitors, TV, PC, laptops, servers Devices supporting HDMI Compatibility Compatible with MuxLab HDBT products Transmission Transparent to the user Video Bandwidth 10.2Gbps Maximum Pixel 297Mhz Clock... - Page 6 8.66” x 5.83” x 1.73” (220mm x 148mm x 44mm) Dimensions Weight 2.16 lbs (0.98 kg) Compliance Regulatory: FCC, CE, RoHS Warranty 2 years 500424-US HDMI/HDBT 1x4 Splitter, US Order Information 500424-UK HDMI/HDBT 1x4 Splitter, UK 500424-EU HDMI/HDBT 1x4 Splitter, EU © MuxLab Inc. 2016...
-
Page 7: Panel Description
HDCP Sync LED: Illuminates green when both the HDBT link and HDCP are active. Blinks green when the HDBT link is active, but HDCP is inactive. The LED is OFF when the HDBT link is inactive and no HDBT receiver is connected. © MuxLab Inc. 2016... -
Page 8: Rear Panel
IR Cascade: Cascades the IR control signal by connecting to the IR Sensor input of another 500424. Assigns the ID of the 500424, the ID ranges from 0 to F (in Hex). ID Preset After assigning the ID, restart the 500424 for the ID to take effect. - Page 9 HDMI/HDBT 1x4 Splitter Installation & Operation Manual Name Description 0000 (Default): pass through 0001: 1080p 2D 0010: 1080p 3D 0011: 720p 2D 0100: 720p 3D 0101: DVI, 1920x1080 Power port, connects with 24V DC power adapter. 24VDC, 2.5A © MuxLab Inc. 2016...
-
Page 10: System Connections
Connect the controlling device (e.g. PC) to the RS232 Input port of the HDMI/HDBT 1x4 Splitter, with the supplied RS232 cable (DB9 end to PC). If you want to cascade the RS232 control signal between several HDMI/HDBT © MuxLab Inc. 2016... -
Page 11: Cascading Connections
HDMI/HDBT 1x4 Splitters are connected together. Connect a DC 24V power adapter to the power port of the 500424, or of each 500424 if more than one unit is cascaded. - Page 12 Sending RS232 commands will synchronously control the first unit and all cascaded HDMI/HDBT 1x4 Splitters down the chain. Note: To identify a particular HDMI/HDBT 1x4 Splitter in a cascaded configuration, please set a unique ID for each unit, so that they can each be individually addressed. © MuxLab Inc. 2016...
-
Page 13: Ir Control Modes
5.1.1. Control far-end display device while local to Splitter Control a local HDMI/HDBT 1x4 Splitter, or a far-end display device from a position near the Splitter, using a handheld IR remote. Figure 5- 1 Control far-end display device while local to Splitter © MuxLab Inc. 2016... -
Page 14: Control Far-End Source Device While Remote From Splitter
Control a remote HDMI/HDBT 1x4 Splitter, or a far-end source device from a position at a distance from the Splitter, using a handheld IR remote. Figure 5- 2 Control remote source device while remote from Splitter © MuxLab Inc. 2016... -
Page 15: Rs232 Control Commands
<baud rate>: 9600, 19200, 38400, 57600 or 115200 <data to send>: Hex string (max 500 characters) Example: Send the following 4 bytes to port #3 0xA1, 0x55, 0xF2, and 0xC8 senddata –u 0 –p 3 –b 9600 –d “A155F2C8” © MuxLab Inc. 2016... - Page 16 (Will read the EDID binary file from the serial port) Note: To control the HDMI/HDBT 1x4 Splitter via the RS232 port, the communication protocol parameters should be configured as follows: Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. © MuxLab Inc. 2016...
-
Page 17: Edid Management
Switch Status EDID information 0000 (default) pass through, auto process 0001 1080P 2D 0010 1080P 3D 0011 720P 2D 0100 720P 3D 0101 DVI 1920x1080 Panel Drawing 13 mm 220 mm 30 mm © MuxLab Inc. 2016... -
Page 18: Troubleshooting & Maintenance
HDMI/HDBT 1x4 Splitter Installation & Operation Manual Troubleshooting & Maintenance The following table describes some of the symptoms, probable causes and possible solutions with respect to the installation of the 500424 HDMI/HDBT 1x4 Splitter. Problems Causes Solutions Color loss or no video... -
Page 19: Regulatory Compliance
All brand names and product names used in this document are trademarks, or registered trademarks of their respective holders. © MuxLab Inc. 2016... - Page 20 HDMI/HDBT 1x4 Splitter Installation & Operation Manual 8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5 Tel: (514) 905-0588 Fax: (514) 905-0589 Toll Free (North America): (877) 689-5228 E-mail: videoease@muxlab.com URL: www.muxlab.com © MuxLab Inc. 2016...
