MuxLab 500422 Quick Installation Manual

Specifications
HDMI 1.4 (3D)
Environment
Devices DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission Transparent to the user
Frequency 25 to 340 MHz
HDMI 1.4 protocol
Signals
Connectors HDMI receptacle.
LEDs Power: Green
Input & Output Link: Blue
Resolution 480i to 1080p @ 50/60 FPS
1080p @ 24/50/60 FPS
3840 X 2160 @ 24/25/30 FPS
VGA to UXGA
Color 8, 10 & 12 bit
LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Audio
Revision 1.3
HDCP
Cable HDMI Cable
Temperature Operating: 0° to 40°C
Humidity: up to 90% non-condensing
Metal enclosure
Enclosure
Dimensions 10.63" x 4.33" x 1.18" (270 mm x 110 mm x 30 mm)
Weight 3.2 lbs (1.45 Kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
500422 HDMI 1X8 Splitter, 2K-4K
Order Information
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2014
All manuals and user guides at all-guides.com
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000756-A SE-000756-A

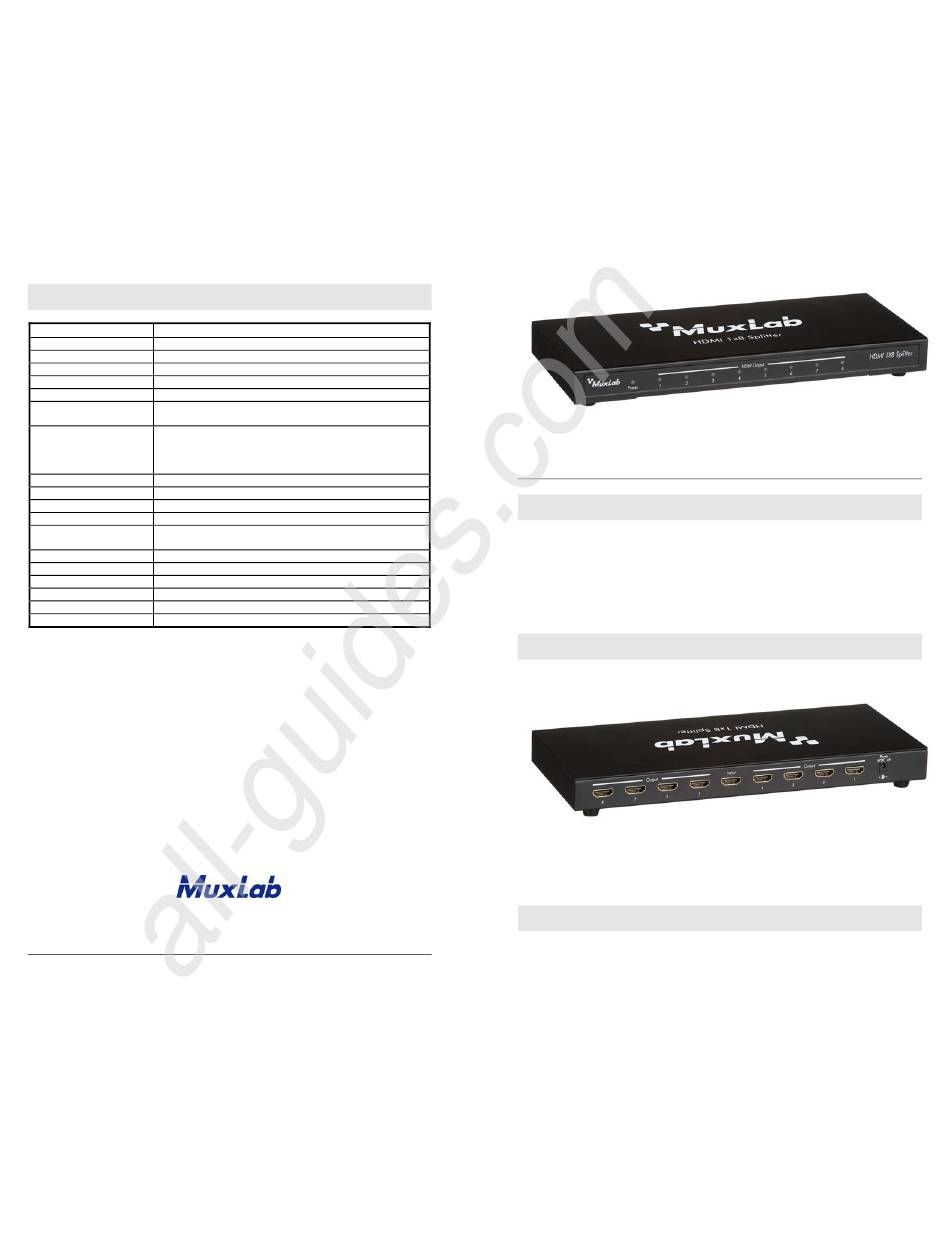

HDMI 1X8 Splitter, 2K-4K (500422)
Quick Installation Guide
Overview
The HDMI 1x8 Splitter (500422) allows one (1) HDMI source to be distributed to
up to eight (8) HDMI displays. The splitter supports up to 4K (3840 X 2160), 8-bit
color and HD audio. The splitter is HDCP 1.3 compliant and features LED
diagnostics. Additionally, all HDMI connectors are on the rear panel for neater
cabling. Applications include; commercial and residential AV systems, classroom
projector systems, digital signage, boardroom systems, collaborative PC systems,
medical information systems.
Pre-Installation Check
Identify the connectors as indicated on the product
Installation
