REFRIGERATOR
MODEL
EF36BNDFSS
I
The Life of the Kitchen. _
I
Epicure ®Handle
Service
Kit,
PN 700976
I
INSTALLATION
INSTRUCTIONS
I
Tools Required
•
3/32" Allen wrench (not supplied)
•
T20 Torx driver
Parts Included
Handle Set Screws
(6 each - PN 102984)
T-20 Mounting Screws
(6 each - PN 104170)
Size may vary
from that shown
Size may vary
from that shown
Handle Mounting Studs
(6 each - PN 102987)
Handle End Caps - Right Side
(PN 102866-01)
Handle End Caps - Left Side
(PN 102866-02)
v'
Handle Set Scr_
Locations
I
Part No. 104169 Rev. A-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EF36BNDFSS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dacor EF36BNDFSS

Summary of Contents for Dacor EF36BNDFSS

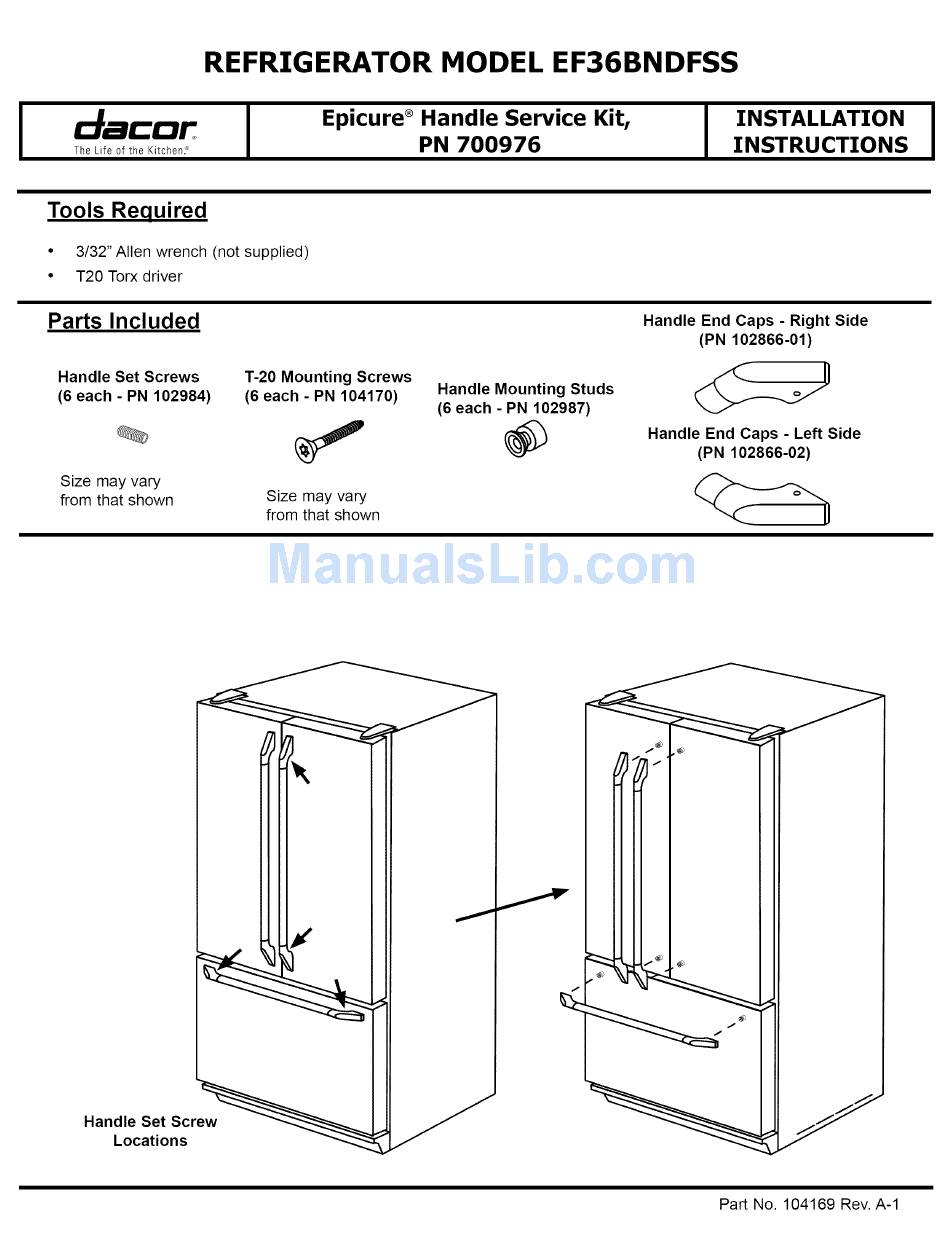

  • Page 1 REFRIGERATOR MODEL EF36BNDFSS Epicure ®Handle Service Kit, INSTRUCTIONS INSTALLATION PN 700976 The Life of the Kitchen. _ Tools Required • 3/32" Allen wrench (not supplied) • T20 Torx driver Parts Included Handle End Caps - Right Side (PN 102866-01) Handle Set Screws...
