DT301

BASIC OPERATION GUIDE



ENGLISH


INTRODUCTION

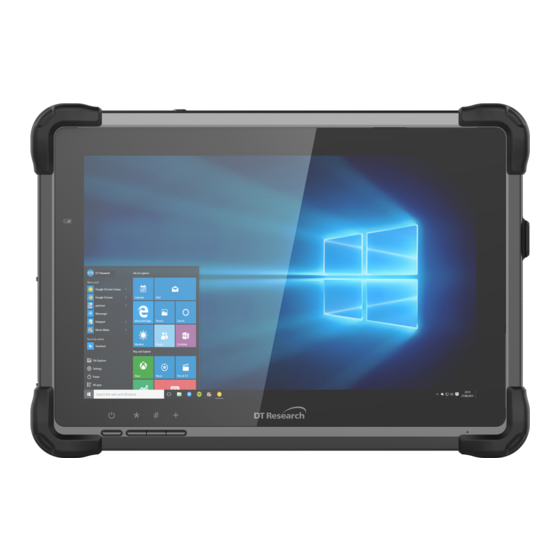

Thank you for acquiring the latest addition to DT Research's line of tablets — the DT301.
Featuring a slim yet robust enclosure, the DT301 with 10.1" capacitive touch display is powered
by the Intel® processor, offering optimal combinations of performance and power savings. The
DT301 is available with Microsoft operating system. The operating system features web browser,
client/ server computing software, media player, accessories, and applications support.



PACKAGE CONTENTS
•  One DT301 with Battery Pack and Handstrap
•  Capacitive Touch Stylus and Lanyard
•  AC‐DC Power Adapter with Power Cord
•  Basic Operation Guide













Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT301 and is the answer not in the manual?

Questions and answers

Summary of Contents for DT Research DT301

  • Page 1       BASIC OPERATION GUIDE              ENGLISH       INTRODUCTION  Thank you for acquiring the latest addition to DT Research’s line of tablets — the DT301.  Featuring a slim yet robust enclosure, the DT301 with 10.1” capacitive touch display is powered  by the Intel® processor, offering optimal combinations of performance and power savings. The  DT301 is available with Microsoft operating system. The operating system features web browser,  client/ server computing software, media player, accessories, and applications support.        PACKAGE CONTENTS  •  One DT301 with Battery Pack and Handstrap  •  Capacitive Touch Stylus and Lanyard  •  AC‐DC Power Adapter with Power Cord  •  Basic Operation Guide                     ...
  • Page 2   DT301    DT301:              Input/ Output Ports                                            Button Functions    A  Headphone Jack    BUTTON    ACTION ...
  • Page 3         Precautions  • Always exercise care when operating and handling the DT301.  • Do NOT apply excessive pressure to the display screen.  • Avoid prolonged exposure of the display panel to any strong heat source. Wherever possible, the DT301  should face away from direct light to reduce glare.  • If the AC‐DC power adapter is used to recharge or power the tablet, do NOT use any AC‐DC adapter other  than the one provided or acquired from the manufacturer or its partners.  • In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the  DT301 and disconnect all power sources. Report the problem to your device provider immediately.  • Never attempt to disassemble the DT301, as this will void the warranty.    Basic Features    The DT301 wireless tablet integrates a bright display, one USB port, and embedded networking elements  such as wireless LAN and Bluetooth or optional 4G LTE. The DT301 is complemented by a suite of accessories,  including battery expansion, charging cradles, and battery charger kit, for a comprehensive user experience.  A DT301 typically integrates an 802.11ac wireless LAN (WLAN) adapter that may connect to other wireless  devices or access points. If your DT301 does not come with such a network adapter, please consult your  device provider to establish the desired network connectivity.                       ...
  • Page 4   DT301      OPERATION    Internal Battery Warning The Internal battery pack should only be replaced by an authorized DT Research service representative.  Please contact your product and/or service provider for internal battery replacement service.  Powering ON and OFF To activate the DT301, push and quickly release the Power Button. The display will come on in a few seconds.  To put the DT301 in Standby mode, push and quickly release the Power Button. To turn the DT301 off for  extended storage, power off safely using any software function that “shuts down computer” provided in the  software operating system.                                      NOTE:  The battery packs shipped with your tablet may be low in power—please use the AC‐DC  adapter with the DT301 when setting up for the first time to fully charge the internal battery ...
  • Page 5: Wireless Networking

    Start Up  If the power up (from Standby or otherwise) is successful, the appropriate interface will be displayed after a  launch sequence of several seconds. The wireless LAN connection may take 10‐15 seconds to be established.      Configuring the Mobile Tablet  The DT301 may be configured using the utilities and methods dictated by the software operating system. The  DT301 should be configurable for various properties such as user profiles, network features, and several  system elements.        Wireless Networking  Wireless LAN  The DT301 is often delivered with an embedded (user‐inaccessible) 802.11ac WLAN adapter equipped with a  hidden custom antenna.  •    Through the support of typical WLAN adapters, the DT301 should be able to detect all 802.11 access  points in the vicinity for you to select the access point of your choice for connection.  •    The SSID and WEP/WPA/WPA2 (if enabled) parameters on the DT301 and the access points have to  match. The SSID is case‐sensitive and it is recommended that you enable WEP/WPA/WPA2 encryption (or  advanced alternatives) for secure access.  •    When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator or your  networking equipment literature to properly configure associated settings such as Authentication mode,  etc.  •    Refer to the access point operating manuals for setting up the 802.11 access points.               ...
  • Page 6: Remote Management

      DT301      Bluetooth  The Bluetooth configuration application is enabled from the System Tray or from the Windows Mobility  Center. Follow the instructions and options provided within the application to configure and invoke  Bluetooth connectivity with the corresponding peripherals.            USING THE MOBILE TABLET  Peripherals Support  Through its USB port, the DT301 supports a wide range of USB‐based peripherals. These peripherals are  applicable for software installation, applications storage, data storage, and system software recovery and  updates.          Remote Management  Depending on software configuration, the DT301 can be centrally managed for asset monitoring and for  software control. Please consult your device provider.        For More Support  Users can download the Tablet Modules Basic Operation Guides from the DT Research website.    To Hold the Tablet Left hand: grip the left back side of the tablet with your left hand  four index fingers, with thumb resting on the top of the back side  of the tablet and palm securely against the back.    Right hand: grip the right back side of the tablet with your right ...
  • Page 7: Specifications

          DT301  Specifications:  DT301  Item  System  CPU  Intel® 6  Generation Core™ i7, 2.6GHz  RAM  8GB  Storage  128GB flash  Operating System  Microsoft® Windows® 7 Professional or Windows® 10 IoT Enterprise  Display  10.1” LED‐backlight screen with multi touch capacitive touch  Display Resolution  1920 x 1200  Network Interface  Wi‐Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.0 LE  provides LTE, DC‐HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, CDMA  Mobile Broadband  GNSS Module  U‐blox M8 GNSS module with concurrent reception of GPS and GLONASS.  Control Switch and  1 power button, 1 Wifi switch and 3 programmable buttons  Buttons  Indicator  1 power/ battery status LED  Microphone  Built‐in microphone with DSP for video conference call  Speaker  Built‐in speaker  Camera(optional)  5 megapixel back camera with LED flash, auto focus, white balance, gain control and exposure control I/O Ports  USB port ...
  • Page 8: Fcc Warning

          FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 9: Radio Frequency (Rf) Exposure Information

      SAR information on this device is on file with the FCC and can be found under the Display Grant section of    www.fcc.gov/eot/ea/fccid after searching on FCC ID:YE3800I.    ISEDC Notices    This device complies with ISEDC’s licence exempt RSS standard(s). Operation is subject to the  following two conditions:  (1) This device may not cause interference; and  (2) This device must accept any interference, including interference that may cause undesired  operation of the device.    Canada, avis d'ISEDC     Le présent appareil est conforme aux CNR d'ISEDC applicables aux appareils radio  exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :  (1) l'appareil ne doit pas produire de brouillage, et    (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le  brouillage est susceptible d'en compromettre le fonctionnement.    Users should also be advised that high‐power radars are allocated as primary users (i.e. priority users)  of the bands 5250‐5350 MHz and 5650‐5850 MHz and that these radars could cause interference  and/or damage to LE‐LAN devices.     ...
