Rugged Tablet
BASIC OPERATION GUIDE
DT311Y
INTRODUCTION

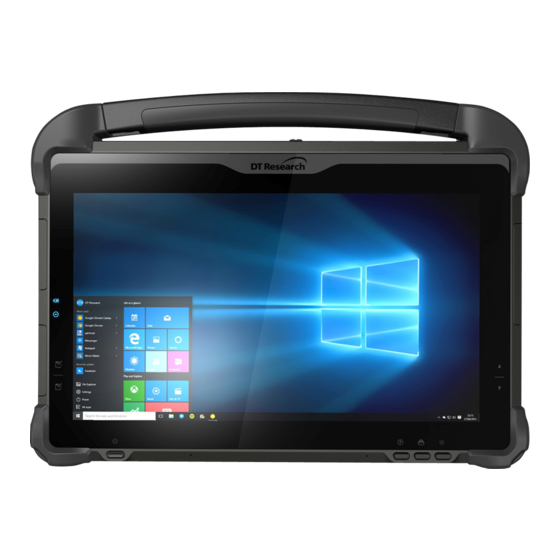

Thank you for acquiring the DT311Y, part of DT Research's line of tablets. Featuring a slim yet robust
enclosure, the DT311Y with 11.6" capacitive touch display is powered by the Intel® processor, offering
optimal combinations of performance and power savings. The DT311Y is available with Microsoft® Windows®
operating system. The operating system features web browser, client/ server computing software, media
player, accessories, and applications support.
PACKAGE CONTENTS
• One DT311Y with Battery Pack and Handstrap
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
* If your DT311Y contains camera or barcode scanner, please refer to the Tablet Modules Basic Operation
Guide for detailed operation.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT311Y and is the answer not in the manual?

Questions and answers

Related Manuals for DT Research DT311Y

Summary of Contents for DT Research DT311Y

  • Page 1 DT311Y INTRODUCTION Thank you for acquiring the DT311Y, part of DT Research’s line of tablets. Featuring a slim yet robust enclosure, the DT311Y with 11.6” capacitive touch display is powered by the Intel® processor, offering optimal combinations of performance and power savings. The DT311Y is available with Microsoft® Windows®...

  • Page 2: Input/Output Ports

    DT311Y: Input/ Output Ports Button Functions Headphone Jack BUTTON ACTION LAN Port power button USB 3.0 Port programmable buttons Battery Latch USB Type-C Port • Push the switch to unlock the latch, than slide the latch to left to remove the battery.

  • Page 3: Basic Features

    The DT311Y wireless tablet integrates a bright display, one USB port, and embedded networking elements such as wireless LAN and Bluetooth or optional 4G LTE. The DT311Y is complemented by a suite of accessories, including battery expansion, charging cradles, and battery charger kit, for a comprehensive user experience.

  • Page 4: Operation

    Powering ON and OFF To activate the DT311Y, push and quickly release the Power Button. The display will come on in a few seconds. To put the DT311Y in Standby mode, push and quickly release the Power Button. To turn the DT311Y off for extended storage, power off safely using any software function that “shuts down computer”...

  • Page 5: Wireless Networking

    The DT311Y is often delivered with an embedded (user-inaccessible) 802.11ac WLAN adapter equipped with a hidden custom antenna. • Through the support of typical WLAN adapters, the DT311Y should be able to detect all 802.11 access points in the vicinity for you to select the access point of your choice for connection.

  • Page 6: Peripherals Support

    For More Support Users can download the Tablet Modules Basic Operation Guides from the DT Research website. If the DT311Y comes with a Mobile broadband module, please contact your product and/or service provider for the SIM Card installation procedures. To Hold the Tablet...

  • Page 7: Specifications

    Specifications: DT311Y Item System Intel® Core™ i5-8250U, Quad-Core, 1.6GHz (up to 3.4GHz) Intel® Core™ i7-8550U, Quad-Core, 1.8GHz (up to 4.0GHz) 8GB to 32GB Storage 256GB to 2TB flash Operating System Microsoft® Windows® 10 IoT Enterprise Display 11.6” LED-backlight, high-brightness (1000 nits) screen with capacitive touch, outdoor viewable...
  • Page 8 DT311Y UHF RFID Reader Module Application One application for the DT311Y Rugged Tablet is to scan goods with RFID tags that are located far away in the warehouse. For this operation example, please see the picture below. Turn on the UHF RFID reader function, and face the reader module (on the back of the tablet) to the cartons, goods, etc.
  • Page 9 FCC that it does not exceed the exposure limit established by the FCC, Tests for each device are performed in positions and locations as required by the FCC. DT Research, Inc. 2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com Copyright © 2019, DT Research, Inc. All Rights Reserved.
