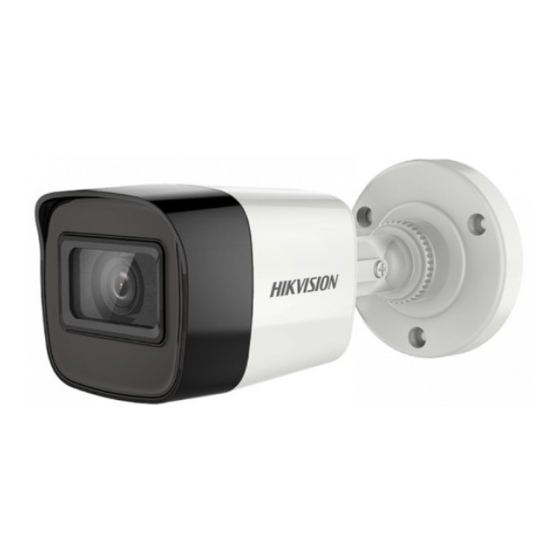

Bullet & Turret Camera
User Manual
Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:
Type I Camera
Type II Camera
Type III Camera
Type IV Camera
Type V Camera
Type VI Camera
This manual may contain several technical incorrect
places or printing errors, and the content is subject to
change without notice. The updates will be added to
the new version of this manual. We will readily improve
or update the products or procedures described in the
manual.
TURBO HD
User Manual
Model
DS-2CE16D3T-I3PF
DS-2CE16D3T-I3F
DS-2CE16D3T-ITPF
T DS-2CE16D3T-ITF
DS-2CE16D3T-IT3F
DS-2CE76D3T-ITMF
DS-2CE78D3T-IT3F
DS-2CE57D3T-VPITF
0100001080730
Advertisement
Table of Contents
Related Manuals for HiLook DS-2CE16D3T-I3PF
Summary of Contents for HiLook DS-2CE16D3T-I3PF
- Page 1 User Manual Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer. This manual applies to the models below: Model DS-2CE16D3T-I3PF Type I Camera DS-2CE16D3T-I3F DS-2CE16D3T-ITPF Type II Camera T DS-2CE16D3T-ITF...
- Page 2 Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 3 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions”. Warnings: Serious injury or death may occur if any of the warnings are neglected.
- Page 4 Keep the camera away from liquid while in use for non-water-proof device. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Mark Description Table 0-1 Mark Description Mark Description DC Voltage...
-
Page 5: Product Features
1 Introduction 1.1 Product Features The main features are as follows: High performance CMOS sensor IR cut filter with auto switch OSD menu with configurable parameters Auto white balance Internal synchronization SMART IR mode 4 in 1 video output (TVI/AHD/CVI/CVBS) 3-axis adjustment 1.2 Overview 1.2.1 Type I Camera... - Page 6 1.2.4 Type IV Camera Clip Plate Mounting Base Trim Ring Enclosure Main Body Switch Button Power Cord Video Cable Figure 1-4 Overview of Type IV Camera Note: Press and hold the switch button for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.
-
Page 7: Menu Description
2 Menu Description Purpose: Call the menu by clicking button on the PTZ Control interface, or call the preset No.95. Steps: 1. Connect the camera with the TVI DVR, and the monitor, shown as the figure 3-1. TVI DVR Camera Monitor Figure 2-1 Connection 2. -
Page 8: Video Format
3). Click left/right direction button to adjust the value of the selected item. 2.1 VIDEO FORMAT You can select the video format as 2MP@25fps , or 2MP@30fps. Note: When switching the video output as CVBS, you can set the video format as PAL, or NTSC. 2.1 EXPOSURE Exposure describes the brightness-related parameters, which can be adjusted by EXPOSURE MODE, and AGC. -
Page 9: Video Settings
The image is black and white all the time, and it is better to turn the IR LIGHT on in poor light conditions. IR LIGHT You can turn on/off the IR LIGHT to meet the requirements of different circumstances. SMART IR The Smart IR function is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. -
Page 10: Image Mode
BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, 3DNR, and MIRROR are adjustable. VIDEO SETTINGS IMAGE MODE WHITE BALANCE BRIGHTNESS CONTRAST SHARPNESS SATURATION 3DNR MIRROR BACK EXIT SAVE & EXIT Figure 2-5 VIDEO SETTINGS IMAGE MODE IMAGE MODE is used to adjust the image saturation, and you can set it as STD (Standard), or HIGH-SAT (High Saturation). -
Page 11: Factory Default
SATURATION Adjust this feature to change the saturation of the color. The value ranges from 1 to 9. 3DNR (Digital Noise Reduction) The 3DNR function can decrease the noise effect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp image.
