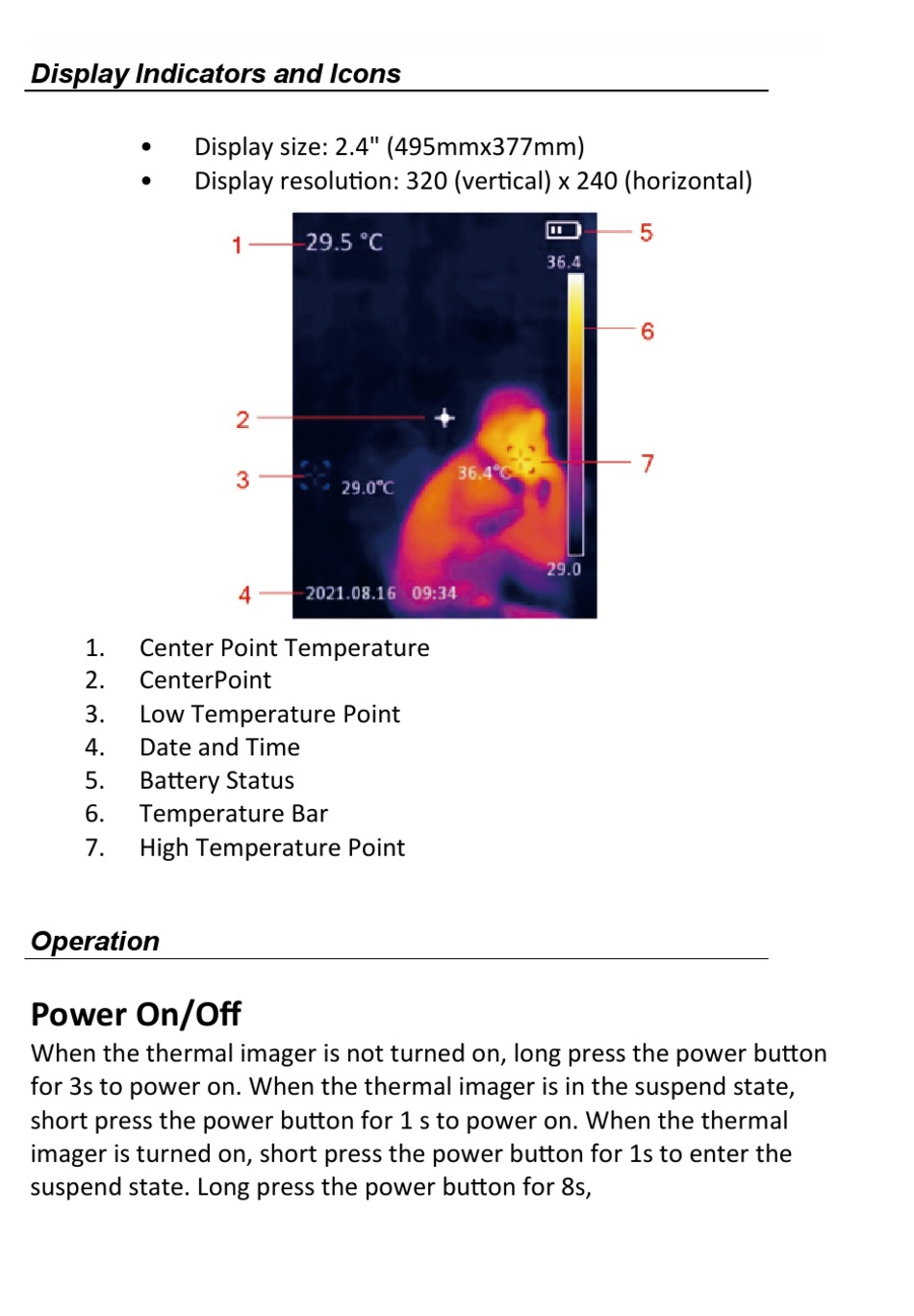

Display Indicators and Icons

•
•
1. Center Point Temperature
2. CenterPoint
3. Low Temperature Point
4. Date and Time
5. Ba�ery Status
6. Temperature Bar
7. High Temperature Point

Operation

Power On/Off
When the thermal imager is not turned on, long press the power bu�on
for 3s to power on. When the thermal imager is in the suspend state,
short press the power bu�on for 1 s to power on. When the thermal
imager is turned on, short press the power bu�on for 1s to enter the
suspend state. Long press the power bu�on for 8s,
Display size: 2.4" (495mmx377mm)
Display resolu�on: 320 (ver�cal) x 240 (horizontal)
