Triplett IRTC400 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
IRTC400
Thermal Imager

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRTC400 and is the answer not in the manual?

Questions and answers

Related Manuals for Triplett IRTC400

Summary of Contents for Triplett IRTC400

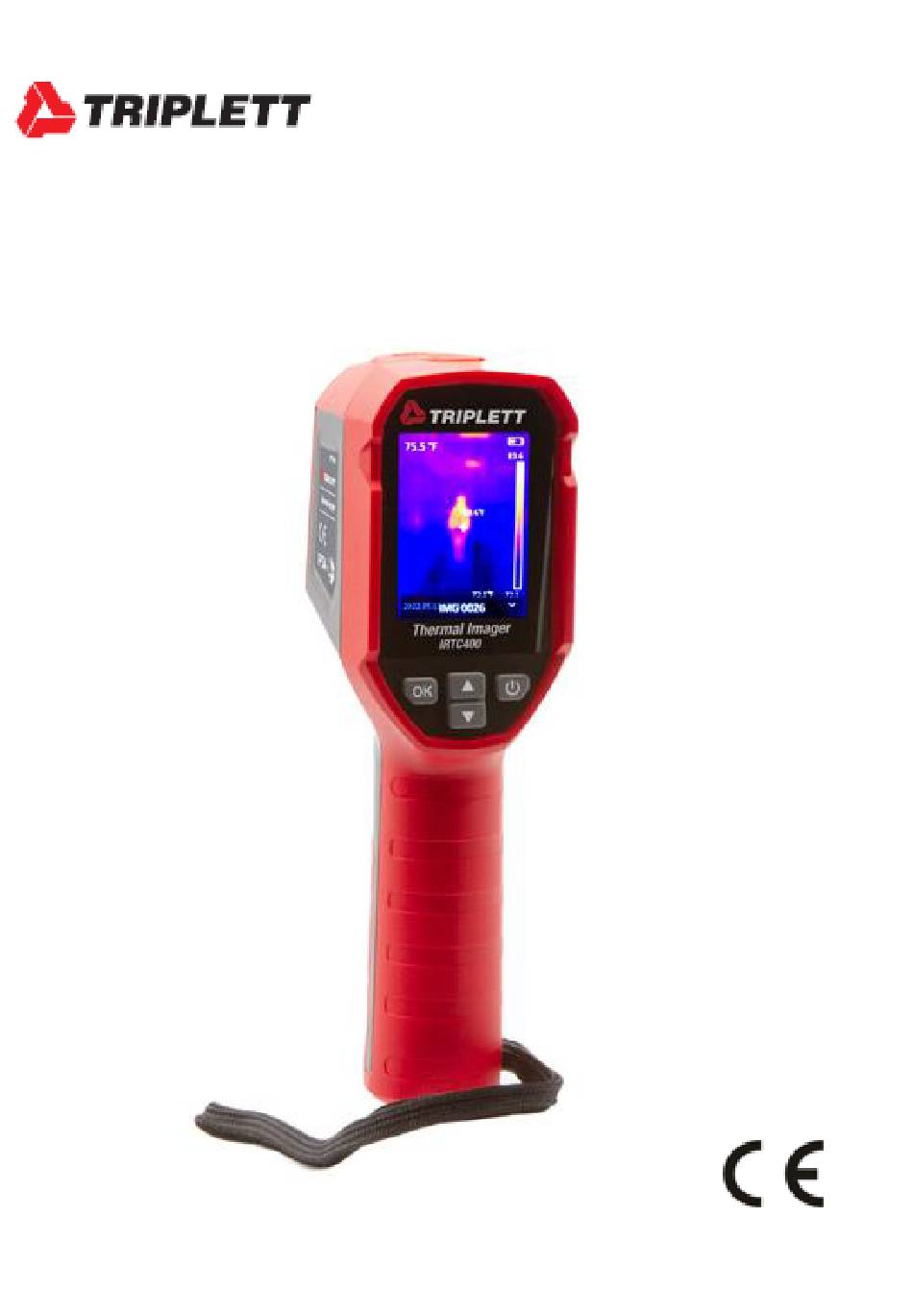

  • Page 1 User Manual IRTC400 Thermal Imager...
  • Page 2 Introduction Congratulations on your purchase of the Triplett IRTC400 Thermal Imaging Camera. This instrument is useful in many applica�ons such as preventa�ve maintenance, troubleshoo�ng of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insula�on and faulty windows/doors, automo�ve repair, and other places to find leaks and hot spots.

  • Page 3: Meter Description

    Meter Description Upper Housing Interface Protec�ve Cover Lower Housing USB Type-C Interface Connector SD Card Slot Tripod Mount Laser Emission Window LED Light Infrared Camera Lens 10. Trigger/Image Capture 11. LCD Display 12. OK Bu�on 13. Up Bu�on 14. Power/Back Bu�on 15.

  • Page 4: Display Indicators And Icons

    Display Indicators and Icons • Display size: 2.4" (495mmx377mm) • Display resolu�on: 320 (ver�cal) x 240 (horizontal) Center Point Temperature CenterPoint Low Temperature Point Date and Time Ba�ery Status Temperature Bar High Temperature Point Operation Power On/Off When the thermal imager is not turned on, long press the power bu�on for 3s to power on.

  • Page 5: Image View

    Menu Short press the OK button to enter the menu interface. Short press the Back button to return to the upper menu. Short press the trigger to directly return to the main interface of the thermal imager. Image View In the menu, select Image View, and then short press the OK button to enter the image viewing interface.
  • Page 6 Temperature Mark In the menu, short press the Up/Down button to select Temper Mark, and then short press the OK button to enter the temperature mark interface. Center Point Hi/Lo Point Palette/Date & Time can be set in this interface. For example, select Center Point, and then press the OK button to turn on/off this function.

  • Page 7: Led Light

    LED light In the menu, short press the Up/Down button to select Hand Light, and then short press the OK button to turn on/off the flashlight. Palette In the menu, short press the Up/Down button to select Palette, and then short press the OK button to enter the palette selection interface.

  • Page 8: Temperature Unit

    Language (English Only) Temperature Unit In the menu, short press the Up/Down button to select Setting, and then short press the OK button to enter the submenu. In the submenu, short press the Up/Down button to select Temper Unit, and short press the OK button to switch between °C/°F. Measured Parameters In the menu, short press the Up/Down button to select setting, and then short press the OK button to enter the submenu.
  • Page 9 Laser In the menu, short press the Up/Down button to select Setting, and then short press the OK button to enter the submenu. In the submenu, short press the Up/ Down button to select Laser, and short press the OK button to turn on/off the laser.

  • Page 10: Auto Power Off

    Brightness In the menu, short press the Up/Down button to select Setting, and then short press the OK button to enter the submenu. In the submenu, short press the Up/ Down button to select Brightness, and short press the OK button to enter the setting interface. The brightness can be Low, Middle, or High Auto Power Off In the menu, short press the Up/Down button to select Setting,...
  • Page 11 Auto Save In the menu, short press the Up/Down button to select Setting, and then short press the OK button to enter the submenu. In the submenu, short press the Up/ Down button to select Auto Save. Short press the OK button to turn on/off the auto save function.
  • Page 12 Factory Reset In the menu, short press the Up/Down button to select Setting, and then short press the OK button to enter the submenu. In the submenu, short press the Up/ Down button to select Factory Reset and short press the OK button to enter the setting interface.

  • Page 13: Maintenance

    Maintenance Use a wet cloth or weak soap solu�on to clean the outer shell of the device. Do not use abrasives, isopropyl alcohol or solvents to clean the outer shell, lens or window. Specifications...
  • Page 15 Warranty Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
