Summary of Contents for Triplett IRTC800

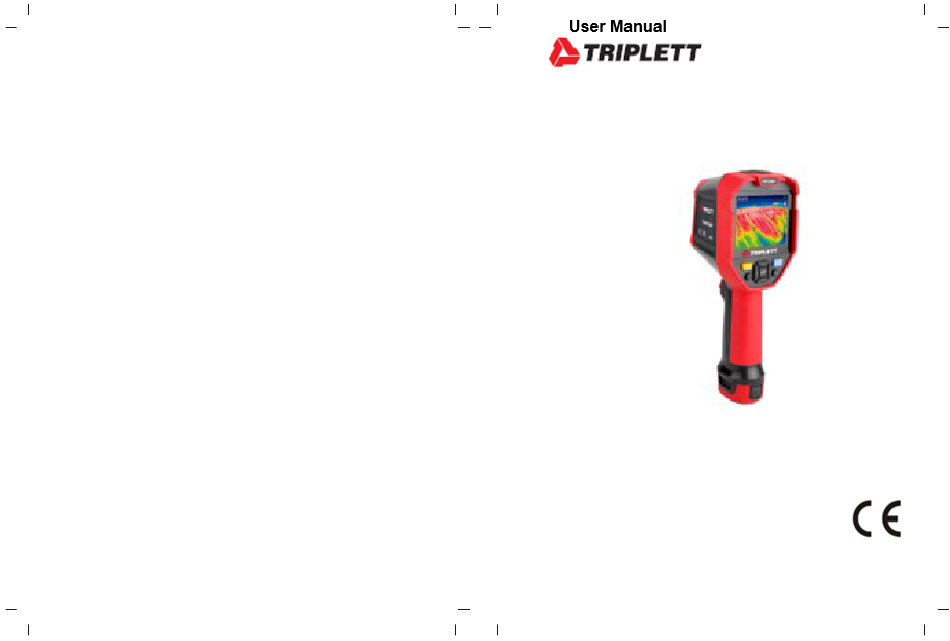

- Page 1 IRTC800 Thermal Imager...
-
Page 2: Table Of Contents
1. Performance indicators Contents 1. Performance indicators -------------------------------------------------------------------- 4 2. Structure -------------------------------------------------------------------------------------- 6 3. Display instructions ------------------------------------------------------------------------ 7 4. Power on-off --------------------------------------------------------------------------------- 7 5. Instruction of configuration menu ------------------------------------------------------ 8 6. Marking tool -------------------------------------------------------------------------------- 9 7. Image mode -------------------------------------------------------------------------------- 9 8. -
Page 3: Structure
Auto Power -Off Iron red, rainbow, black heat, white heat, Swatches red heat, lava, and high contrast rainbow Service duration More than 3h Charging period Less than 4h Infrared spectral bandwidth 8~14μm 5V/ 1.5a 9V/1A 12V/1A Field of view HFOV 56° Charging voltage/current (supported only with standard USB charging below QC2.0) Focusing mode... -
Page 4: Display Instructions
5. Instruction of configuration menu 3. Display instructions Configuration options for main menu Displayresolution: 640×480 Main page of the thermal imaging device 1. Press “SET key” on the home page to display the main menu Description Description 2. Press“Left/right key” to select sub-menu Marking tool Automatic tracking of the minimum point 3. -
Page 5: Marking Tool
6. Marking tool 8. Swatches switching If you need to use the center point/high/low temperature tracking/temperature display Press the "SET key" to pop up the main menu options, select "Swatches Switch" by using function,press "SET key" to pop up the main menu options, select "Marking tool" by using "Left/right key", select the required swatches by using "Left/right key", and there are seven left/right key, and then press "SET key"... -
Page 6: Vitta Tool
10. Vitta tool Press "SET key" to pop up the main menu, and select "Vitta Tool" by using "Left/right key". Select the desired vitta tool by using "Left/right key". Six isothermal modes can be selected: Auto isothermal, Proportional isothermal, Down isothermal, Up isothermal, Interval isothermal, and Manual isothermal. -
Page 7: Digital Amplification & Fusion Ratio Adjustment
13.1 Camera mode Note: After editing on the status editing page, press "SET key" to open the status editing sub-menu, select Recovery by using"Up key", and press "SET key" to restore the picture to After entering the first level menu on the Setting page, select "Camera mode"option, press the initial state. -
Page 8: Alarm
13.4 Alarm Note: It takes about 20 seconds to switch the temperature scale. Wait until the switch is After entering the first-level menu on the Setting page, select "Alarm" option, press "SET stable before performing other operations or measuring the temperature. key"... -
Page 9: Language
13.6 Language 13.9 USB mode After entering the first-level menu on the Setting page, select "Language" option andselect After entering the first-level menu on the Settings page, select "USB mode" option and English, French, German, Spanish, or Russian by using"Up/Down key". press "SET key"to enter the Sub-menu of "USB mode". -
Page 10: Factory Reset
14. SD Card 13.12 Factory reset After entering the first-level menu on the Settings page, select the option of "Factory reset" The device supports microSD cards to store images. In order to prevent excessive image option, press "SET key", and the prompt "Shutdown and factory reset" will pop up. If you data from affecting the operating speed, should periodically copy backup data and clear select Yes, the device will automatically shut down, and the instrument will restore factory the data in the card. -
Page 11: Fcc Compliance Statement
18. Common emissivity table 17. FCC Compliance statement Emissivity Material Emissivity Material Black paper Wood 0.85 0.86 Polycarbonate Water 0.96 Brick Concrete 0.75 0.97 Copper oxide Stainless steel 0.78 0.14 Tape 0.96 Cast iron 0.81 Aluminum plate Rust 0.09 Copper plate Gypsum 0.06 0.75...
