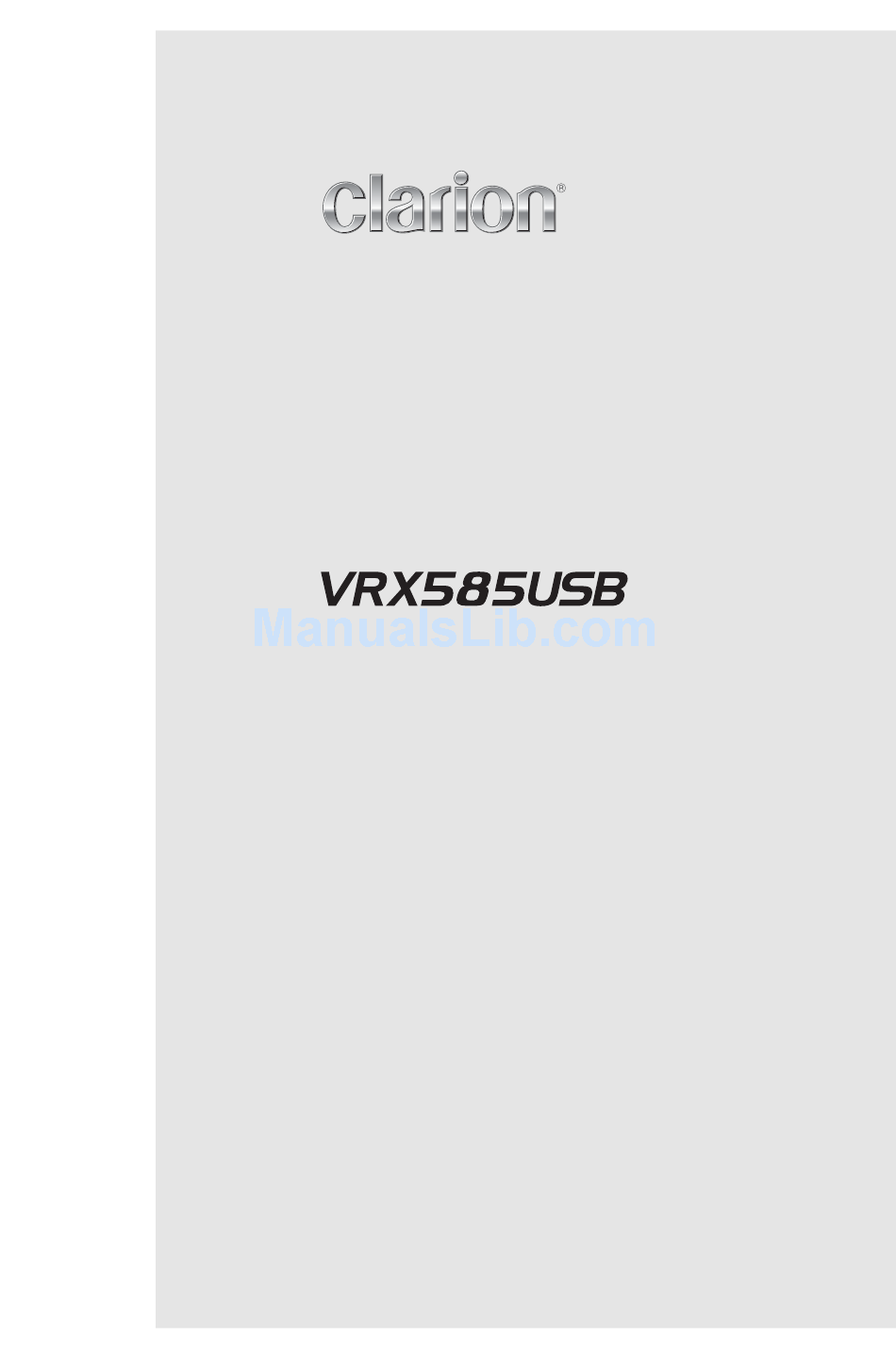

- Page 1 Owner's manual & Installation manual Mode d'emploi et manuel d'installation Manul de instrucciones y de instalación RADIO/DVD MULTIMEDIA CENTER CENTRE MULTIMÉDIA DVD/RADIO CENTRO DE MULTIMEDIA DE DVD/RADIO...
-
Page 2: Table Of Contents
UserManual TABLE OF CONTENTS 1.DESCRIPTION 1-1 Features 1-2 Expanding System 1-3 Information Guide 2.PRECAUTIONS 3.CONTROL 3-1 Button Functions 3-2 Remote Control 4.BUTTON AND TOUCH KEY OPERATION 4-1 User Guide 4-1-1 POWER on Mode 4-1-2 TUNER Mode 4-1-3 DVD Mode 4-1-4 SOUND Mode 4-1-5 ADJUST Mode : At TUNER, iPod, USB Mode 4-1-6 ADJUST Mode : At AUX, DVD Mode 5.CAUTIONS... - Page 3 6-2-8 Region Number 6-3 Registered Trademark 7. OPERATIONS 7-1 DCP 7-2 Basic Operations 7-2-1 POWER On/Off 7-2-2 MODE Selections 7-2-3 LCP Operations 7-2-4 AUDIO Operations 7-2-5 ADJUST Operations 7-2-6 2ZONE Function 7-3 RADIO 7-4 DVD Video Player 7-4-1 Size of the Screen 7-4-2 Parental Level 7-4-3 Disc Loading 7-4-4 Setting the DVD Video...
-
Page 4: Description

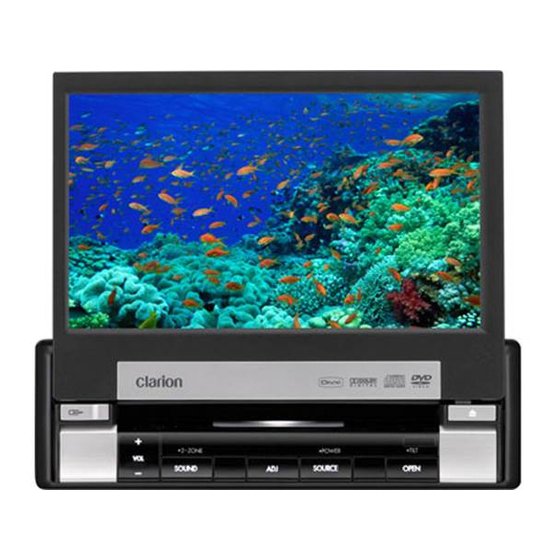

1. DESCRIPTION * This image is main body with open LCP(Liquid Crystal Panel). 1-1 Features Automatic 7 Wide Screen LCD Touch Panel Control DVD Video / CD / MP3 / WMA / DivX Play Capability RCA 6 (+2)-Channel (2-Zone) Output Built-in 50 W x 4 Amplifier CD-R/CD-RW/DVD R/DVD RW Compatible 2-ZONE Control... -
Page 5: Expanding System
1-2 Expanding System... -
Page 6: Information Guide
FOR USA and Canada only www.clarion.com Dear Customer: Congratulations on your purchase of a Clarion mobile electronic products. We are confident that you'll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product. -
Page 7: Precautions
2. PRECAUTIONS For your safety, the driver should not watch the DVD video/TV/VTR or operate the controls while driving. Please note that watching and operating the DVD video/TV/VTR while driving are prohibited by law in some countries. Also, while driving, keep the volume to a level at which external sounds can be heard. -
Page 8: Information For Users
INFORMATION FOR USERS CHANGES OR MODIFICATIONS TO THIS PRODUCT NOT APPROVED BY THE MANUFACTURE WILL VOID THE WARRANTY AND WILL VIOLATE FCC APPROVAL. - Page 9 Handling Discs Handling - New discs may have some roughness around the edges. If such discs are used, the player may not work or the sound may skip. Use a ball-point pen or the like to remove any roughness from the edge of the disc. Ball-point pen Roughness - Never stick labels on the surface of the disc or mark the surface with a pencil or pen.
- Page 10 CAUTION With the screen open, a driver may not be able to see the disc insertion slot. For your safety, insert a disc with the screen closed. Even when the screen is closed, however, the recessed disc slot may be difficult for a driver to see, care is needed whenever inserting discs.
-
Page 11: Control
3. CONTROL ① ③ 3-1 Button Functions : To remove the DCP (Detachable Control Panel) : To eject the disc (press this button more than a second if the unit is in middle of turning the power off) [+ VOL -] : To increase/decrease the volume (in a range from 0min to 33max) [SOUND] : To enter/exit the SOUND mode 2-ZONE : To enter the 2-ZONE mode (press the [SOUND] button more than a second) To exit the 2-ZONE mode (keep pressing this button again) -
Page 12: Remote Control
3-2 Remote Control Remote Control Unit (38 buttons) PWR/SRC SCAN SETUP SLOW P.CH AUDIO SUB TITLE PWR/SRC BAND SCAN P.TIME SEARCH MODE SETUP MENU ENTER TOP MENU SLOW PLAY/PAUSE MUTE P.CH VOLUME AUDIO SUB TITLE ANGLE 2-ZONE WIRELESS REMOTE CONTROLLER BAND 0 ~ 9 P.TIME... - Page 13 Inserting the Batteries Open the rear cover, and remove it and insert the AAA (SUM-4, IEC LR03/1.5V) batteries bundled with the remote control unit in the directions shown in the figure and then, close the rear cover. Using batteries improperly can cause them to explode. Take note of the following points: •...
- Page 14 [P.TIME] : To turn on/off the playtime display in DVD mode [SEARCH MODE] : To switch the search mode (keep pressing more than a second in DVD mode) [SETUP] : To show the DVD SETUP screen while playing DVD [MENU] : To display stored menu in DVD video disc [ ][ ][ ][ ] : To select a menu To scroll the track/folder list screen in MP3 modes (only [ENTER] : To select track, file, folder or item in all modes...
-
Page 15: Button And Touch Key Operation
4. BUTTON AND TOUCH KEY OPERATION 4-1 User Guide 4-1-1 POWER ON Mode ENGINE ON SOURCE “Long press” Last mode screen... -
Page 16: Tuner Mode
4-1-2 TUNER Mode SOURCE TUNER BAND... -
Page 17: Dvd Mode
4-1-3 DVD Mode SOURCE CONTROL 10KEY... -
Page 18: Sound Mode
4-1-4 SOUND Mode SOUND CUSTOM CUSTOM DETAIL BACK... - Page 19 BAL/FAD OTHERS...
-
Page 20: Adjust Mode : At Tuner, Ipod, Usb Mode
4-1-5 ADJUST Mode : At TUNER, iPod, USB Mode ADJUST BACK GENERAL... - Page 21 ADJUST BACK...
-
Page 22: Adjust Mode : At Aux, Dvd Mode
4-1-6 ADJUST Mode : At AUX, DVD Mode ADJUST COLOR... -
Page 23: Cautions
5. CAUTIONS 5-1 Liquid Crystal Panel/Generalities For a longer service life, be sure to read the following cautions. Be sure to house the liquid crystal panel inside the main unit when parking the car outdoors for long period of time. The liquid crystal panel will operate properly in a temperature range of 0 to 60°C. -
Page 24: Dvd Video System
6. DVD VIDEO SYSTEM DVD video is a high-quality digital video source that provides crisp and clear images. One 12cm disc contains either one film or four hours of music. 6-1 DVD Video Features This unit provides the following functions in addition to the high image quality and sound quality of DVD video. -
Page 25: Discs
6-2 Discs 6-2-1 Playable Disc This DVD video player can play the following discs. 6-2-2 CD Extra Disc A CD Extra disc is a disc in which a total of two sessions have been recorded. The first session is Audio session and the second session is Data session. Your personally-created CDs with more than second data sessions recorded cannot be played on this DVD video player. -
Page 26: Divx Playback
6-2-7 DivX Playback This player can play back DivX format file recorded on DVD R/RW and CD-R/RW discs. 6-2-8 Region Number The DVD video system assigns a region number to DVD video players and DVD discs by sales area. The DVD video region number is marked on the disc jacket as shown below. 6-3 Registered Trademark This product incorporates copyright protection technology that is protected by U.S. -
Page 27: Operations
7. OPERATIONS 7-1 DCP The control panel can be detached to prevent theft. When detaching the control panel, store it in the DCP (Detachable Control Panel) case to prevent scratches. Please take the DCP with you when leaving the car. Remove DCP Press the [SOURCE] button more than 2 seconds to turn off the power. -
Page 28: Mode Selections
7-2-2 MODE Selections (1) When the LCP is open Press the [SOURCE] button to enter in the SOUCRE mode. Touch the desirable key. (2) When the LCP is closed Press the [SOURCE] button to change operation mode. Each time you press the [SOURCE] button, the operation mode changes in the following order: TUNER mode DVD/CD Play mode When 2ZONE function is ON, the [SOURCE] button operates only for the MAIN zone. -
Page 29: Audio Operations
(3) Adjusting the angle of the LCP Every pressing the [OPEN] button more than a second tilts LCP forward or backward. The angle is changed the following order: 110°(Default angle) 100° If the LCP stops in error during the adjustment of the angle and you press the [OPEN] button more than a second, the LCP operates With opposition direction. - Page 30 (1) Adjusting the Z-ENHANCER Press the [SOUND] button. (This button performs only when the panel is open.) Touch the desirable item key(Z-ENHANCER, BAL/FAD, OTHERS). Perform the adjustment explaining in the following sections. Touch the [BACK] key to return to the previous screen. ITEM Z-ENHANCER BASS BOOST...
- Page 31 IMPACT - detail adjustments EXCITE - detail adjustments Custom Setting : Touch the [CUSTOM] key and then touch the [CUSTOM DETAIL] key. BASS controls low sound, TREBLE controls high sound. CUSTOM DETAIL BASS GAIN BASS FREQ BASS Q TREBLE GAIN TREBLE FREQ BASS F = 80Hz, G=+10dB, Q=1...
- Page 32 (2) Adjusting the BAL/FAD Touch the [BAL/FAD] key. Touch the [FRONT] [LEFT] [RIGHT] [REAR] keys to control balance & fader. They control a location adjustment of the sound. Their default settings are “CENTER”. SETUP ITEM FADER BALANCE (3) Adjusting the OTHERS Touch the [OTHERS] key Touch the value at right side to adjust the desirable function.
-
Page 33: Adjust Operations
7-2-5 ADJUST Operations item table MONITOR GENERAL (1) Adjusting the MONITOR : At Tuner, iPod, USB Mode (1-1) Default Screen Press the [ADJ] button. Perform the adjustment. Touch the [BACK] key to return to the previous screen. (1-2) MONITOR ADJUST (1-2-1) Brightness Touch the [ADJUST] key to adjust brightness for display image. - Page 34 [AUTO] : According to the status of the car light, brightness of LCP is changed. (When the car light is off : Day color, when the car light is on : Night color, Only “NIGHT” setting can control the dimmer level by touching the [ - ] or [ + ] key.) (1-3) CAMERA INT.
- Page 35 (2-3) Color To adjust the color depth. If you touch the [ - ] key, the color depth will decrease. If you touch the [ + ] key, the color depth will increase. (2-4) Hue If you touch the [ R ] key, red is emphasized. If you touch the [ G ] key, green is emphasized.
- Page 36 “OFF”, disconnect the mobile phone from the cable or turn off the power of the mobile phone.) MUTE : To mute the sound during your telephone (This function is not compatible with all mobile telephones. Contact your local authorized Clarion dealer for information on proper installation and compatibility.) (3-6) TEL SPEAKER To change the output speaker for the mobile phone when TEL SWITCH is “ON”...
-
Page 37: 2Zone Function
7-2-6 2ZONE Function (1) Description The 2ZONE function is a function that outputs separate sounds/images from the MAIN zone and SUB zone (such as the rear monitor) by simultaneously operating two sources in the one centre unit. Thereby, plural listeners are allowed to enjoy separate audio/visual sources. The 2ZONE function allows internal sources (TUNER, DVD, iPod) and external sources (AUX, etc.) to be played on MAIN zone and SUB zone. - Page 38 (3) Specification of conversion When the 2ZONE function turns on, the source of the main-zone and the sub-zone is made up by the mixture besides of the external source. The source conversion of the main-zone is available when the 2ZONE setting mode sets up to the main-zone.
-
Page 39: Radio
7-3 RADIO (1) Listening to the radio Press the [SOURCE] button and touch the [TUNER] key. The TUNER mode screen is displayed. Press the [BAND] button on the remote control unit, or touch the [BAND] key to select the radio band. - Page 40 (3) Memorizing the preset By touching preset number, preferred preset memories stations between 1 ~ 6 can be selected. To memorized preferred station, keep touching preset number until beep sound (for more than 3 seconds). The display of preset memoried channel will be the same indication as receiving.
-
Page 41: Dvd Video Player
7-4 DVD Video Player 7-4-1 Size of the Screen To change the screen size, touch the [OPTION] key,then touch the [SCREEN] key on the DVD mode screen. The [FULL], [NORMAL], [CINEMA] key is displayed on the screen. (1) Normal mode Touch the [NORMAL] key to change the screen. -
Page 42: Parental Level
7-4-2 Parental Level You can change the level of parental lock. This function allows cutting scenes that are unfavorable for children or replacing them automatically with other scenes prepared in advance. For example, by replacing scenes of radical violence or portrayals of sex with safe scenes, you can make a trouble- free story as if it were so from the beginning. -
Page 43: Setting The Dvd Video
7-4-4 Setting the DVD Video (1) Way of watching video Playing mode is revitalized automatically after the disc loading, or touch the [DVD] key in SOURCE mode to enter the DVD mode. Then, the following screen is displayed when you touch the display. - Page 44 (4) Chapter skipping Touching the [ ] key starts playback from the beginning of the next track. Touching the [ ] key starts playback from the beginning of the current track. When the button is pressed again within about 2 seconds, playback starts from the beginning of the previous track.
- Page 45 (5-1) Lang OSD LANG - To set up the OSD language. Sub Title - To set up the subtitle language. Audio - To set up the audio language. Disc - To set up the disc language. Version - To view an information. (DVD version, s/w version) (5-2) Display TV display - To set up the screen size.
-
Page 46: Other Function
7-5 Other function 7-5-1 CDDA When playback is not started, press the [ (1) Touch the [ ] key to pause or resume the playback. Keep touching the [ a second to stop during the playback. (2) Touching the [ ] key starts playback from the beginning of the next track. - Page 47 Logical format(File System) Select the “ISO9660 level 1 or level 2” as a software format used in MP3 file of the CD-R disc. The normal playing may not be performed if it recorded by the other format. The name of the folder and file can be represented in title while MP3 is playing; however, the title is represented by the single byte alphabet and numbers of 31 and 27 to the name of the folder and file.
- Page 48 Touch the [CONTROL] key to select the file or folder. Touch the [ ] [ ] key to select the folder list or track list Touch the [ ] [ ] key to select the file in the selected folder Touch the [ENT] key to select the file Touch the [BACK] key to return to previous screen Touch the [10KEY] key to display the screen selecting the desired track number.
-
Page 49: Usage Of Peripheral Devices
8. USAGE OF PERIPHERAL DEVICES 8-1 Setting iPod This unit can be used to control a Connected Apple iPod(iPod Mini, fourth generation, iPod nano, iPod with video). The iPod versions higher than those noted in side may not be playable. This unit will not operate, or may operate improperly with unsupported versions. - Page 50 (4) Video mode You can view video data stored in the iPod. But you cannot control and navigate with a CLARION device on iPod video mode. It only allows you to control with the iPod device. To enjoy the video data, you must operate in following order: Touch the [AUDIO] key works in toggle on the iPod option screen.
-
Page 51: Setting Usb
Each time you touch the second key (AUX SENS MIDDLE), You can switch among (AUX SENS LOW, AUX SENS MIDDLE, AUX SENS HIGH) to change the AUX audio volume. AUX SENS LOW : Low volume. AUX SENS MIDDLE : Middle volume. AUX SENS HIGH : High volume. - Page 52 Touch the [FOLDER] figure to view the folder list, then [BACK] letters is displayed. Touch the [BACK] key to return to the previous screen. Touch the [ - ] or [ + ] key to display the track list of the previous or next folder. Touch the [ / ] key to pause or resume the playback.
-
Page 53: Troubleshooting
9. TROUBLESHOOTING General DVD Player iPod control Because the noise occurs on the unit, don’t connect audio/video to aux-in after connecting the iPod uses the cigar jack’s power of your car. Make use of the aux-in and the USB cable. Make use of the iPod that the battery is charged. -
Page 54: Specifications
10. SPECIFICATIONS Frequency range Quieting sensitivity FM TUNER Limiting sensitivity Stereo separation Frequency response Frequency range AM TUNER Usable sensitivity System Usable discs DVD PLAYER Frequency response Separation Distortion Sampling rate Bit rate MP3 / WMA Logical Format Maximum power output AUDIO Power output AMPLIFIER... - Page 55 Power source voltage Ground Current consumption GENERAL Auto antenna rated current Dimension of the Main Unit Weight of the Main Unit Dimension of the Remote Control Unit Weight of the Remote control Unit 6- 3/ 4˝ (172mm) 7˝ (178mm) Power Output : 18W RMS x 4 Channels at 4 Signal to Noise Ratio : 74dBA (reference : 1W into 4 ) Specifications and design are subject to change without notice for further improvement.
-
Page 56: Installation And Wire Connection
11. INSTALLATION AND WIRE CONNECTION 11-1 Cautions On Installation (1) BEFORE STARTING This set is exclusively for use in cars with a negative ground 12 V power supply. Read these instructions carefully. Be sure to disconnect the battery “ - ” terminal before starting. This is to prevent short circuits during installation. - Page 57 Do not open the case. There are no user serviceable parts inside. If you drop anything into the unit during installation, consult your dealer or an authorized CLARION service Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol, etc.
-
Page 58: Main Unit Installation(Universal Mount)
183mm Hole Screw Driver Outer escutcheon Some car models require special mounting kits for proper installation. Consult your Clarion dealer for details. Fasten the front stopper securely to prevent the main unit from coming loose. This part is not provided. -
Page 59: Removing The Main Unit
11-3 Removing The Main Unit (1) When the rear of the main unit has been secured with the method shown in the follow figure unfasten the special screw. (2) Remove the outer escutcheon. (3) Insert the hook plate into the universal mounting bracket, then pull the main unit out by the hook plate. -
Page 60: Main Unit Installation(Fixed Mount)
11-4 Main Unit Installation (Fixed Mount) (TOYOTA, NISSAN and other ISO/DIN equipped vehicles) This unit is designed for fixed installation in the dashboard. If the vehicle is equipped with a factory-installed radio, install the main unit with the parts and screws marked (*). -
Page 61: Cautions On Wiring
11-5 Cautions On Wiring Be sure to turn the power off before wiring. Be particularly careful where you route the wires. Keep them well away from the engine, and exhaust pipe, etc. Heat may damage the wires. If the fuse should blow, check to see if the wiring is correct. If it is, replace the fuse with a new one with the same amperage rating as the original. -
Page 62: Electrical Connection
11-6 Electrical Connection (1) Wire connection Disconnect the Negative(-) power cable from the battery before installation. RCA pins and connector cables are sold separately. Grey White Black White Blue White Yellow Green White Yellow White Black Black Grey Black Black USB Cable Refer to the next pages... - Page 63 (2) Power supply lead To activate “Auto Mute-On when receiving phone call”, connect right wire to the dedicated connector in the vehicle Fuse Box NOTE When you detach the power supply connector, please pull it out after release the lock part with a minus driver etc.
- Page 64 (3) Connecting the Accessories Connection to the external amplifier The external amplifier can be connected unless the MCP (Multiple Channel Processor) is connected. For detailed information, refer to the instruction manual of the MCP. Connection to the CCD camera for vehicle The CCD camera for vehicle can be connected to the system expansion terminal on the main unit.
- Page 65 (5) Sample System 4ch - RCA CAA-185 for Camera 2ch - Mini - Jack Steening Remocon CCA-691 sold separately 4ch - RCA CAA-185 for Camera 2ch - Mini - Jack Steening Remocon Audio / Memory 3ch - RCA 2ch - RCA Phone Mute iPod BLT370...
- Page 66 Clarion Co., Ltd. All Rights Reserved.Copyright 2007:Clarion Co., Ltd. Printed in Korea / Impreso en Corea / Imprimé en Corée 2007/12 (Y-YI) QC-6825B-B...
