** Please make sure you have all parts indicated below prior to assembly.
This table is heavy and can best be assembled with the help of two or more people.
Assembly steps:
1. Place two
side frames
2. Attach
the ends of
bolts (E), lock washers (B) and flat washers (A)
using
(See Diagram 1).
wrench (D)
ASSEMBLY INSTRUCTION
5820-75200T - 84 Rectangle Dining Table Top
5820-75200B - 84 Rectangle Dining Table Base
Diagram 1
upside down.
stretcher (H) to
left
base on
side frame
1/2
Diagram 2
(F) and right
side frame
,tighten all bolts securely with allen
(G)
by
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5820-75200T
Summary of Contents for Hooker Furniture 5820-75200T

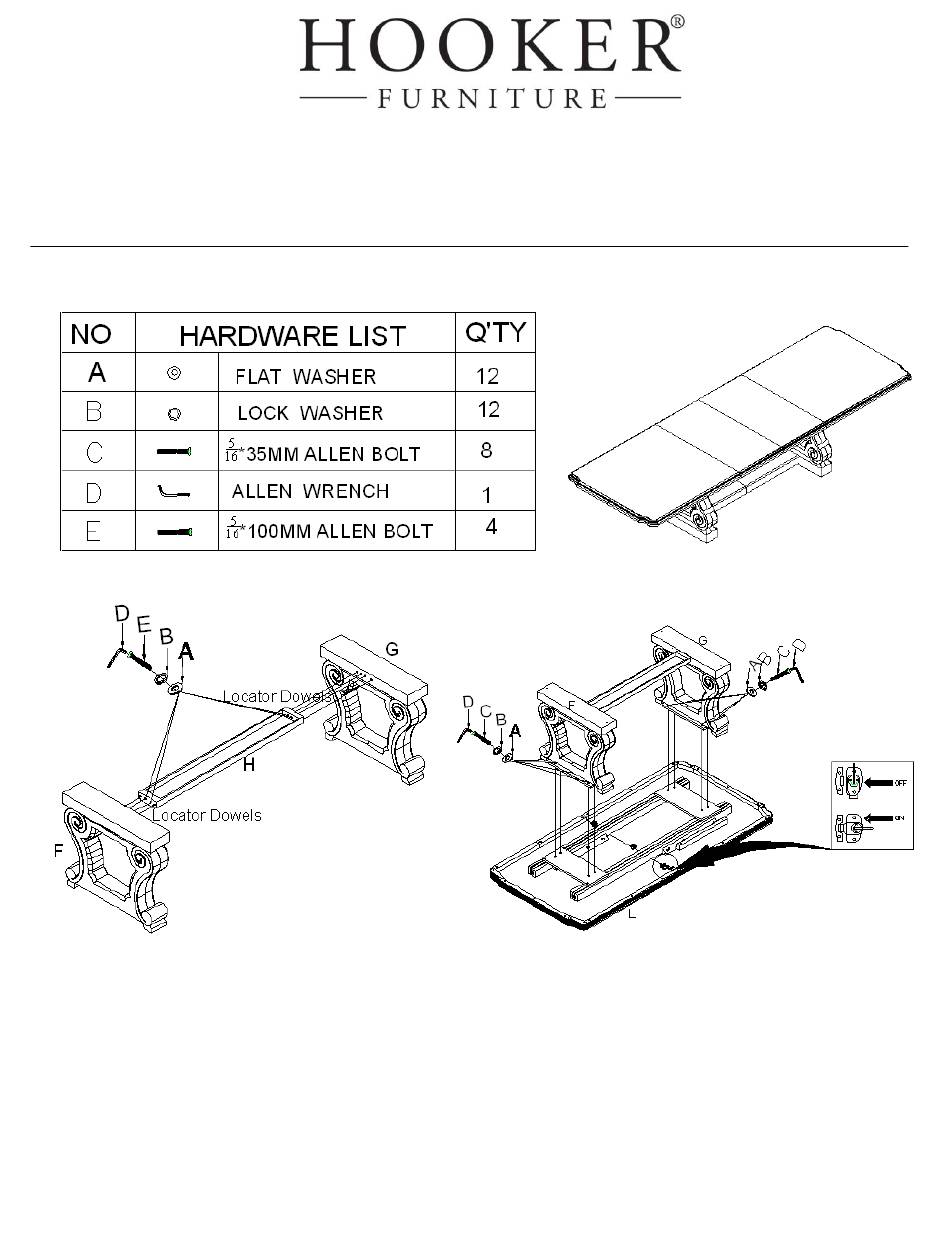

- Page 1 ASSEMBLY INSTRUCTION 5820-75200T - 84 Rectangle Dining Table Top Item#: 5820-75200B - 84 Rectangle Dining Table Base ** Please make sure you have all parts indicated below prior to assembly. This table is heavy and can best be assembled with the help of two or more people.
- Page 2 3. Place table top (L) upside down on a soft surface to prevent it from being scratched. Put whole base onto top to make sure all pre-drilled holes are in alignment, well insert bolts (C), lock washers (B) and flat washers (A), tighten bolts by turning with allen wrench (D) in clockwise direction (See Diagram 2).
