ITEM#

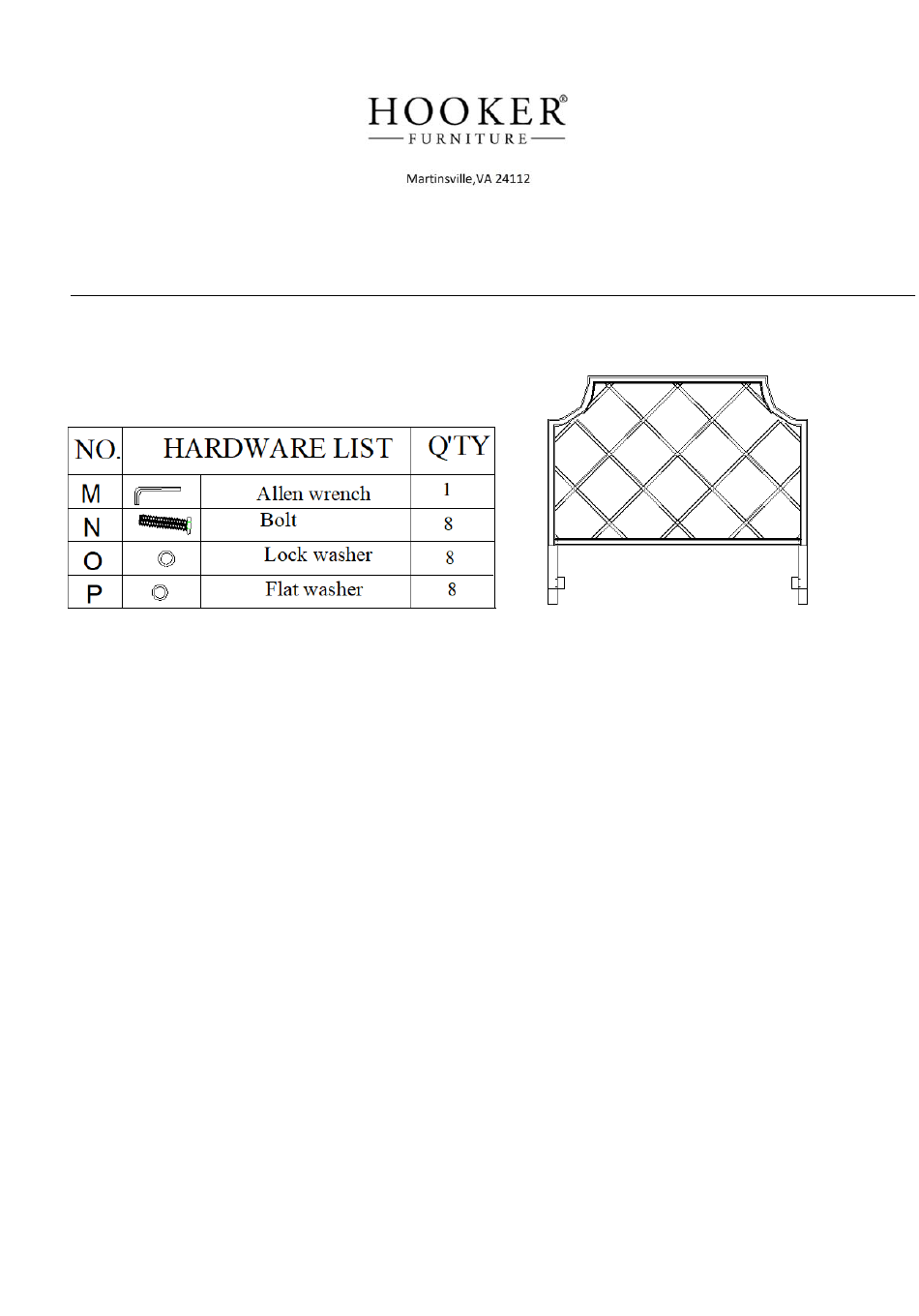

Caution: Please make sure you have all parts indicated below prior to assembly.
This headboard is heavy and can best be assembled with the help of two people.
Note:
1. Height of the 6/0 - 6/6 Panel Headboard can be adjusted with or without extension blocks (70"
height and 76" height).
2. Height of the 5/0 Panel Headboard can be adjusted with or without extension blocks (68"
height and 74" height).
3. 6/0 - 6/6 Panel Headboard can't be adjusted to 76" with extension blocks if customer wants to
add canopy due to the total height limit for the whole bed in the room.
Assembly steps –76" height for 6/0 - 6/6 Panel Headboard
ASSEMBLY INSTRUCTION

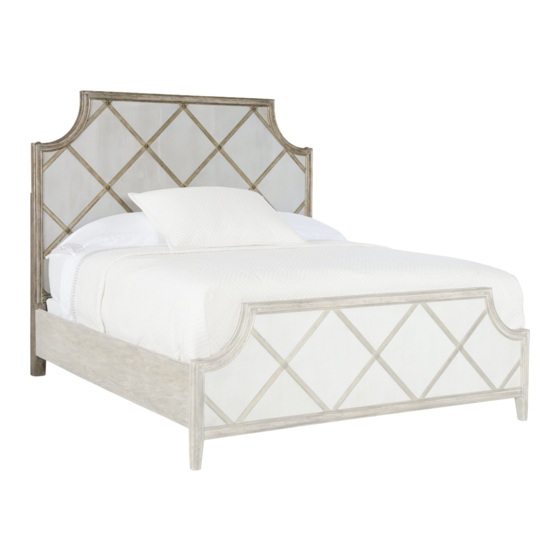

5875-90367-95 Diamont 6/0-6/6 Panel Headboard
5875-90351-95 Diamont 5/0 Panel Headbaord
–74" height for 5/0 Panel Headboard
Advertisement
Table of Contents
Related Manuals for Hooker Furniture Diamont 5875-90367-95
Summary of Contents for Hooker Furniture Diamont 5875-90367-95
- Page 1 ASSEMBLY INSTRUCTION ITEM# 5875-90367-95 Diamont 6/0-6/6 Panel Headboard 5875-90351-95 Diamont 5/0 Panel Headbaord Caution: Please make sure you have all parts indicated below prior to assembly. This headboard is heavy and can best be assembled with the help of two people. Note: 1.
- Page 2 Diagram 1 1. Place Headboard on a soft surface to prevent it from being scratched. 2. Attach posts (A) to each side of panel headboard (B) by using flat washers (P), lock washers (O) and bolts (N), tighten all with Allen wrench (M) in clockwise direction. See diagram 1. Assembly steps –...
