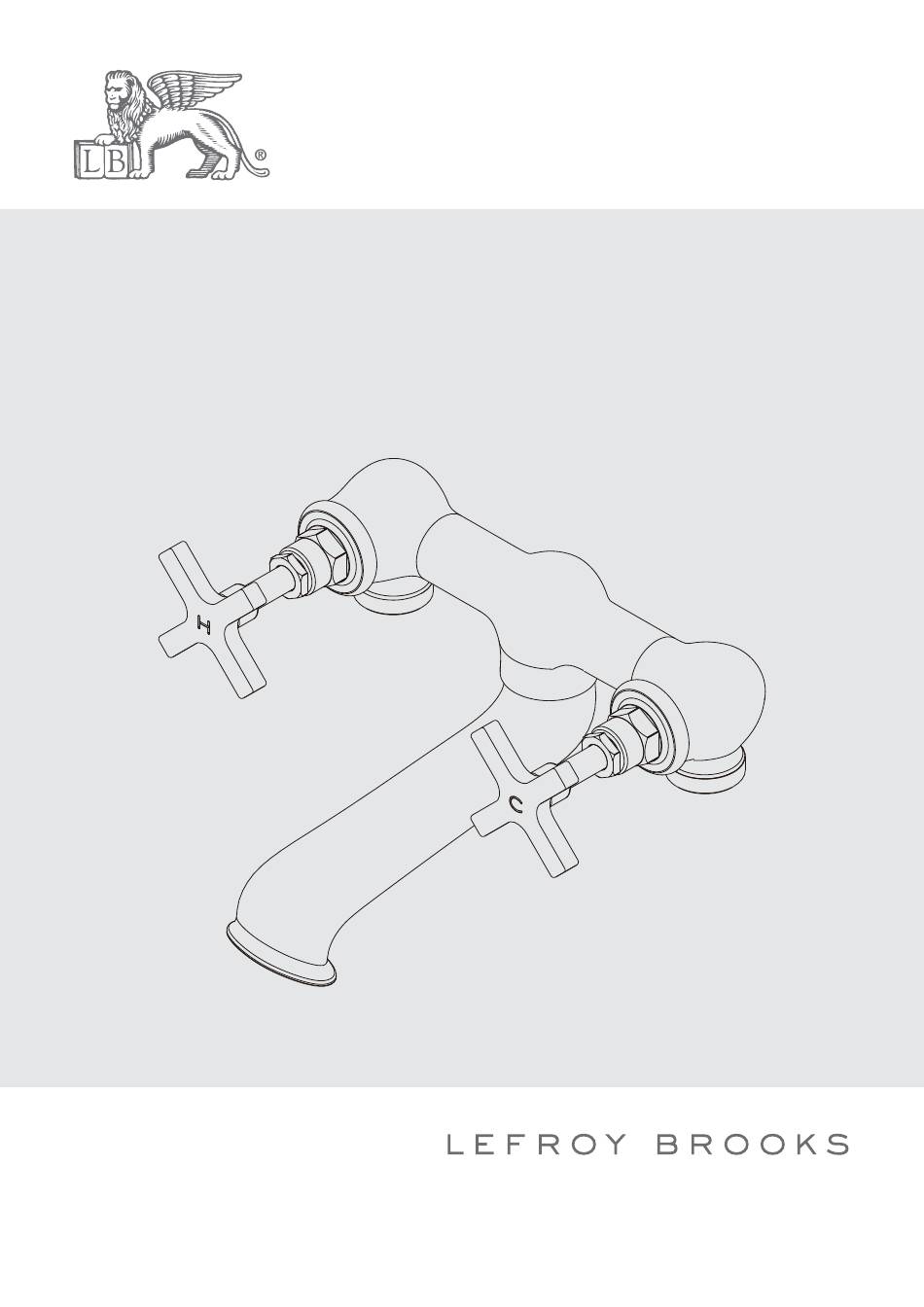

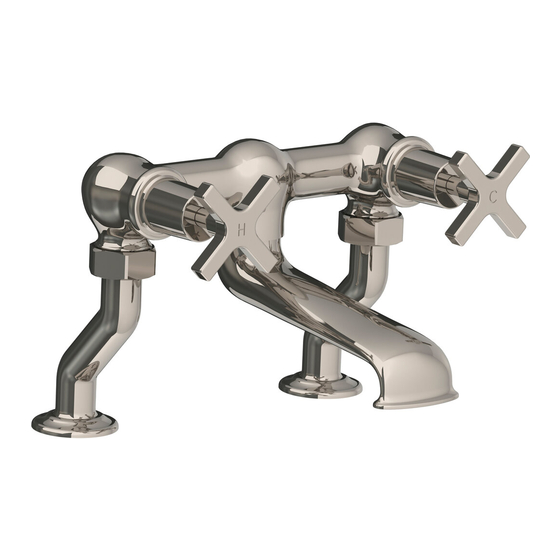

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS M1-2600 (MH 1107) CROSS HANDLE BATH FILLER...
-
Page 2: Table Of Contents
Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 8 15/16" (227mm) 7 1/16" 109.3 (180mm) 2- 1 5/16-16UN-2A 2 5/16'' (58mm) 6 1/16" (154mm) 7 1/2" (190mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instal Ation Procedure
Installation Procedure Step 1 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Product shown as example only Install the faucet onto either the return bends or the cranked legs as chosen. - Page 5 Installation Procedure Step 2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After installing faucet, open the hot and cold supplies to check for leaks. Turn on faucet handle for one minutes to flush debris from faucet.
-
Page 6: Parts List
Parts List Exploded view Handle ( C ) (029685C) Nut (009354) Adaptor (077173) Handle ( H ) (029685H) Cartridge (507911) O-ring (004596N) Screw (008003) O-ring (063066N) Spout (118559) Stem extension (110468) Set screw (065154) Allen key (031000) O-ring (048085N) Body (002781) Allen key (031017) -
Page 7: Fault Finder
Fault Finder Fault Cause Rectification Drips from spout. Gasket is misfitted or damaged. Check for gasket placement. Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged. -
Page 8: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 9: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
