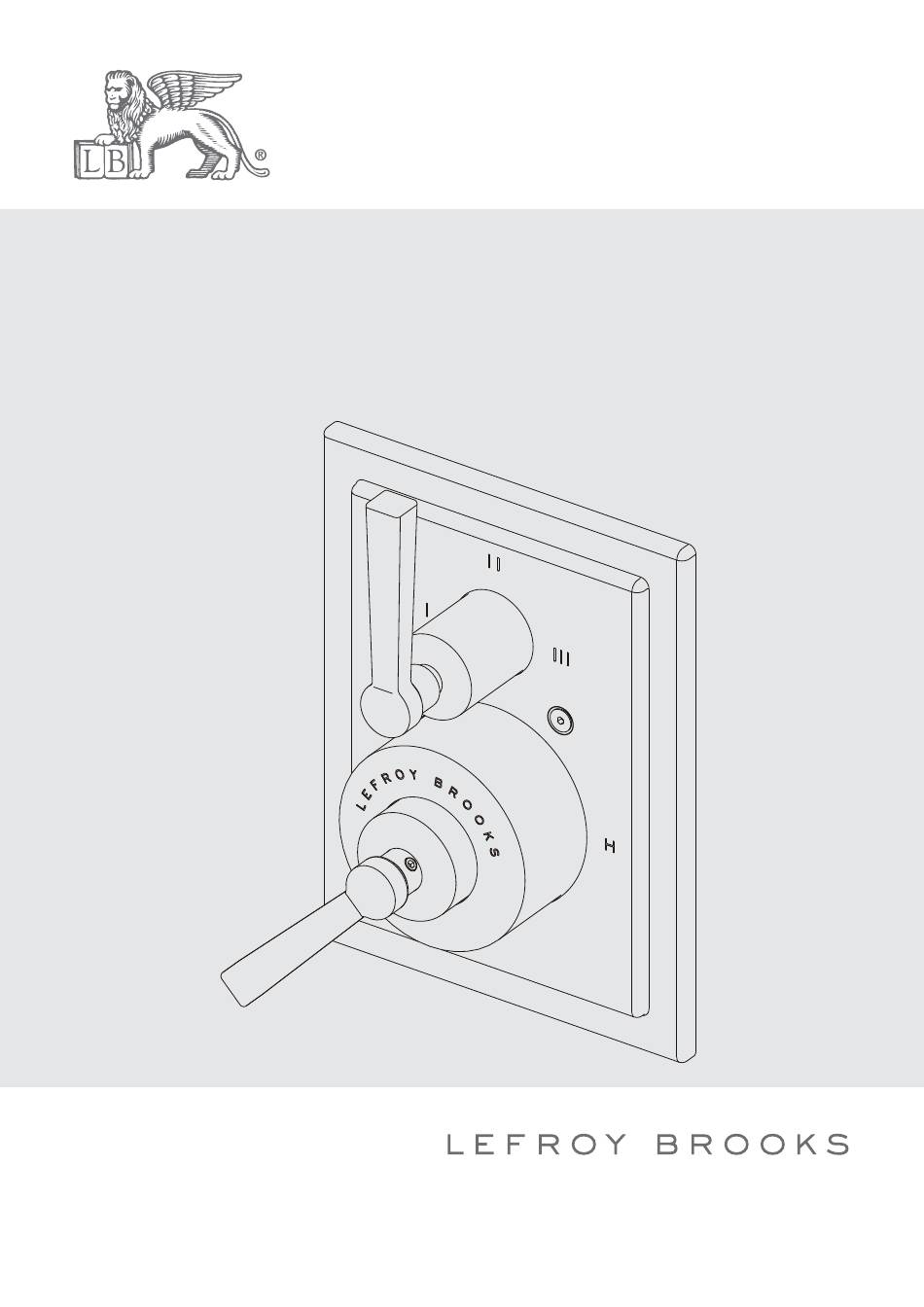

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS M1-4309 LEVER PRESSURE BALANCE BALANCE WITH LEVER 3-WAY DIVERTER TRIM ONLY, TO SUIT M1-4102 ROUGH...
-
Page 2: Table Of Contents
Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 1/2" (12mm) 4 3/4" (120mm) 3 7/16"~2" (87mm~51mm) 5 7/8" (150mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instal Ation Procedure
Installation Procedure Steps 1-6 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. REMOVE CAP ONLY, KEEP THE REST OF THE mixed water mixed water MUD GUARD AS IT IS... - Page 5 Installation Procedure Steps 7-10 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Stopper A Stopper B (marked #049000) (marked #049001) Stopper B 12 teeth (marked 0 tooth #049001)
- Page 6 Installation Procedure Steps 11-13 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the stem extension and canopies. Fix the front plate with screws. Install handle.
-
Page 7: Parts List
Parts List Exploded view Handle (029686) Screw (008186) Adjusting ring (104292) Set screw (292598) Front plate (006584-53) Set screw (065086) Canopy (018960) Oil-seal (010940) Canopy (018959-50) Screw (065035) Spacer (013816) Canopy (018961) Stem extension (110430) Allen key (031003) Stem extension (110389) Clip (012242) Allen key (031220) Screw (008115) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Wobbling of handle. The fixing screw comes loose. Check for fixing screw and re-tighten it properly. Wobbling of canopy. The canopy comes loose. Check and tighten the canopy. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
